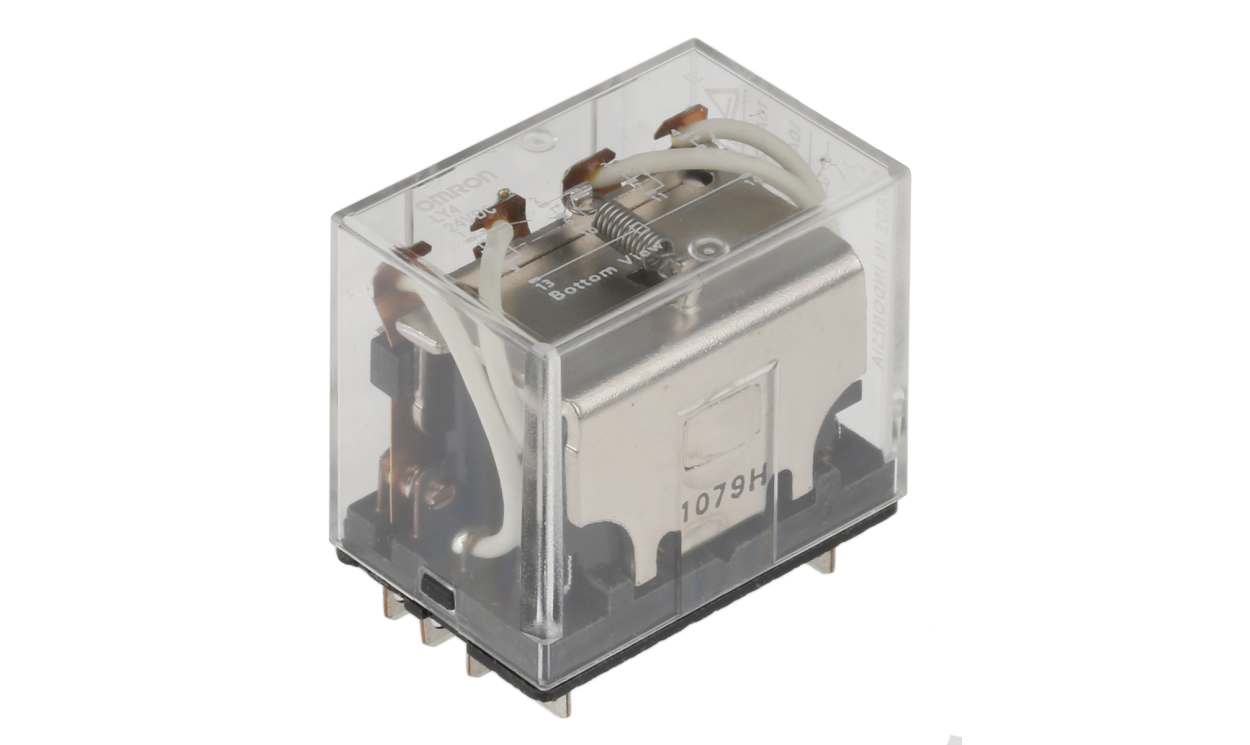

OMRON LY4 24VDC | Plug-In Power Relay | 24 V DC Coil, 4PDT, 10 A
With a 24 V DC coil and 4PDT contacts, the OMRON LY4 24VDC is a plug-in power relay rated for 10 A switching current. From the OMRON LY4 series, it has quick-connect terminals and a coil resistance of 350 Ω (coil power 1.5 W).
- Maximum switching voltage 250 V AC / 125 V DC
- Maximum switching current 10 A AC / 10 A DC
- Silver alloy contacts
- Standards: CE
- Non-latching operation
- 4 poles (4PDT)
- Detailed Description
- Specifications
- Downloads









Omron Series LY4 Power Relay, 24 V DC, 4PDT - LY4 DC24
Features & Benefits
• Built-in mechanical operation indicator for enhanced functionality
• Offers 10A switching current capability for high-power applications
Applications
• Ideal for control panels and machinery
• Used in HVAC systems for switching larger loads
Can it handle high switching power requirements?
Will it fit easily into existing systems?
Is it suitable for use in control panels?
Approvals
| Brand | Omron |
| Series | LY4 |
| Coil Voltage | 24V dc |
| Contact Configuration | 4PDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 4 |
| Latching | No |
| Coil Resistance | 350Ω |
| Terminal Type | Quick Connect |
| Length | 28 mm (1.10 in) |
| Coil Power | 1.5W |
| Height | 42.4 mm (1.67 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Contact Material | Ag Alloy |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 125V |
| Maximum Switching Current DC | 10 A |
| Maximum Switching Current AC | 10 A |
| Standards Met | CE |
