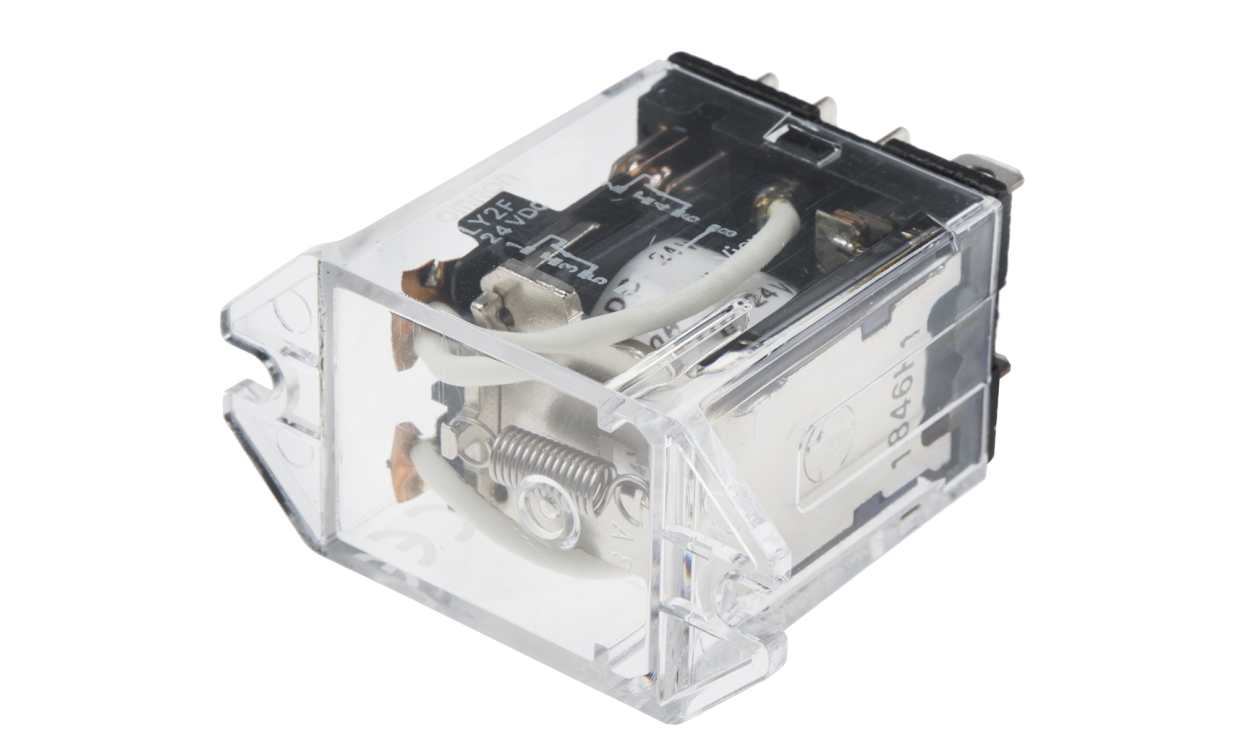

Name: Omron LY2F 24VDC, Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: LY2F 24VDC
Availability: OutOfStock

Omron LY2F 24VDC, Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY2F 24VDC, Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Part Number : LY2F 24VDC

Availability: Sold out

Detailed Description
Specifications

Omron LY2F Series Power Relay, 24V DC Coil Voltage, 10A Switching Current - LY2F DC24

This power relay is designed for versatile automation applications. The DPDT configuration allows for efficient control of multiple functions, featuring a coil voltage of 24V DC. Compact dimensions of 22.5mm in length, 35.5mm in depth, and 44mm in height make it suitable for various installations.

Features & Benefits

• Supports a maximum switching current of 10A
• Excellent isolation between coil and contact at 2kV AC
• Environmentally adaptable with an operating temperature range of -25°C to +55°C
• Complies with multiple international safety standards

Applications

• Utilised in general-purpose power switching for various equipment
• Effective in industrial automation systems for reliable control
• Suitable for powering electrical appliances in commercial settings
• Ideal for control systems requiring digital and high-voltage functionalities

What are the main electrical specifications for this relay?

It has a coil voltage of 24V DC and can handle maximum switching voltages of 250V AC and 125V DC. The maximum switching power reaches 1.1kVA for AC and 240W for DC applications, ensuring it meets a wide range of operational needs.

How does the relay ensure durability in high-demand environments?

The relay can withstand high operational demands, boasting a mechanical life of up to 100 million operations and an electrical life of 500,000 operations, making it highly reliable in automation environments.

What terminal types are available for installation?

It features PCB pin terminals, which facilitate easy mounting and integration into existing circuits, enhancing its usability in various projects.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	LY2F
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	22.5mm
Coil Resistance	650Ω
Coil Power	900mW
Height	44mm
Contact Material	Silver Alloy
Standards Met	CE, CSA
Minimum Operating Temperature	-25°C
