Omron K8DT-TH1CA, Temperature Monitoring Relay, SPDT, 100 → 240V ac, DIN Rail

Part Number : K8DT-TH1CA

Availability: Sold out

Detailed Description
Specifications

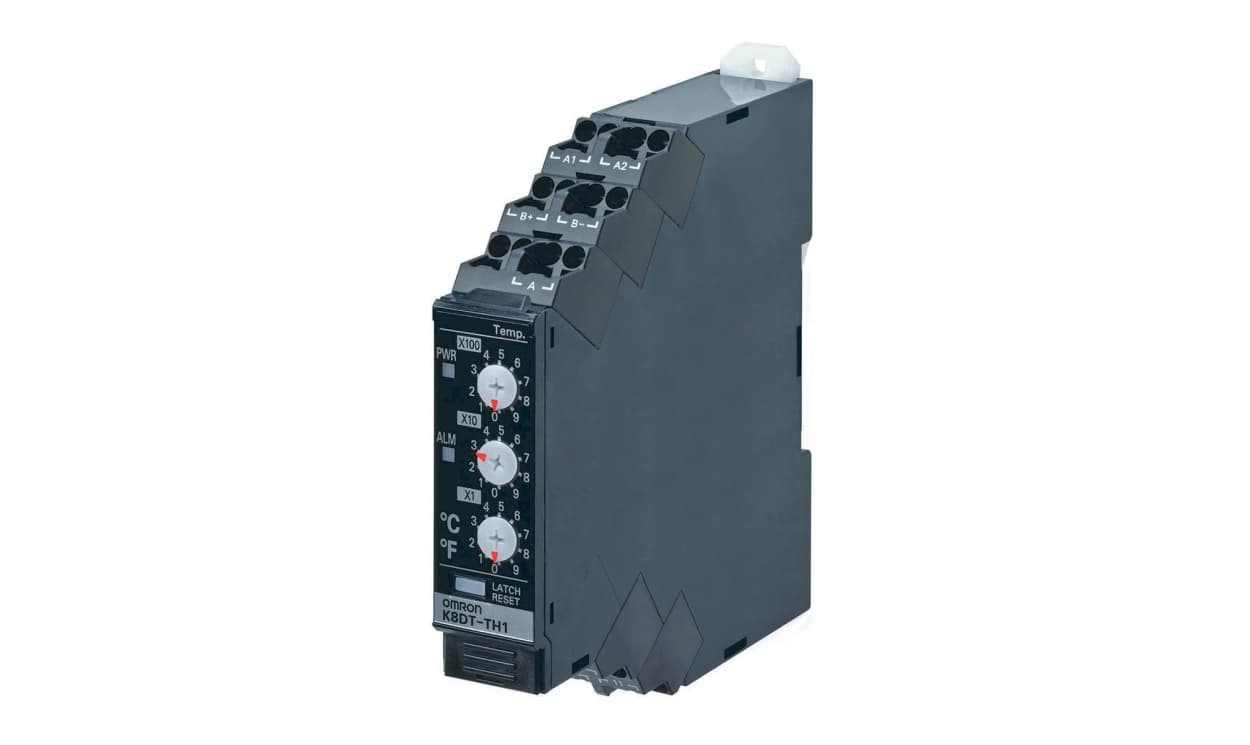

Omron K8DT-TH Series Monitoring Relay, Temperature Monitoring, SPDT Contact Configuration - K8DT-TH1CA

This monitoring relay is designed for temperature applications. It boasts a compact size, measuring 90mm x 17.5mm x 90mm, suitable for DIN rail mounting. This device efficiently prevents heater overheating by monitoring temperature within the range of 0 to +999°C and operates within a voltage sensing range of 100 to 240V AC.

Features & Benefits

• User-friendly temperature setting with rotary switches
• Offers both relay and transistor output options
• Push-In Plus technology simplifies wiring processes
• CE certified for effective safety and compliance
• Senses frequencies from 10 to 55Hz for reliable operation
• Supports a wide temperature sensing range for accurate monitoring

Applications

• Used with industrial temperature sensors for precise control
• Ideal for requiring overtemperature detection
• Suitable for HVAC systems needing reliable monitoring
• Utilised in electrical panels for space-efficient temperature control

What types of temperature sensors are compatible with this device?

This unit is compatible with K, J, T, and E thermocouples as well as platinum resistance thermometers (Pt100, Pt1000), allowing diverse applications depending on the requirements of the system.

How does the Push-In Plus technology benefit installation?

This technology greatly reduces wiring time and effort. It allows for easier connections and disconnections, facilitating a quicker and more efficient installation process in automation and electrical panels.

What are the operational temperature limits of this relay?

The relay operates effectively in environments ranging from -20°C to +60°C, ensuring reliable performance across various industrial settings and conditions.

Standards

EN61010-1, EN 61326-1, UL 61010-1 IP 20 Terminals

Omron K8DT Series Control Relays

Omron K8DT measuring and monitoring relays are part of the Value Design for Panel concept that takes control panel design and manufacturing to a new level. The K8DT series protect important equipment from damage using various measuring and monitoring relays that conform to international safety standards. Low power consumption and low heat generation design offer a long service life.

Space Saving

The K8DT series can help downsize control panels by reducing the width between wiring ducts and void panel space. The slim body allows space to mount more devices in the same size of control panel to increase control panel functionality.

Push-In Plus Terminals

Push-In Plus terminal blocks on all K8DT relays reduce the time and work involved in wiring. The Push-In Plus terminals allow solid and stranded wires with pin terminals or ferrules to be inserted without the need for tools.

Brand	Omron
Monitoring Application	Temperature
Voltage Sensing Range	100 → 240V ac
Contact Configuration	SPDT
Mounting Type	DIN Rail
Minimum Current Sensed	10A
Maximum Current Sensed	50mA
Frequency Sensing Range	10 → 55Hz
Temperature Sensitivity	Overtemperature
Temperature Sensing Range	0 → +999°C
Series	K8DT-TH
Operating Temperature Range	+60°C
Minimum Temperature Sensed	0°C
Minimum Frequency Sensed	10Hz
Height	90mm
Length	90mm
Maximum Voltage Sensed	240V ac
Standards Met	CE, CULus
Terminal Type	Push In
Maximum Frequency Sensed	55Hz
