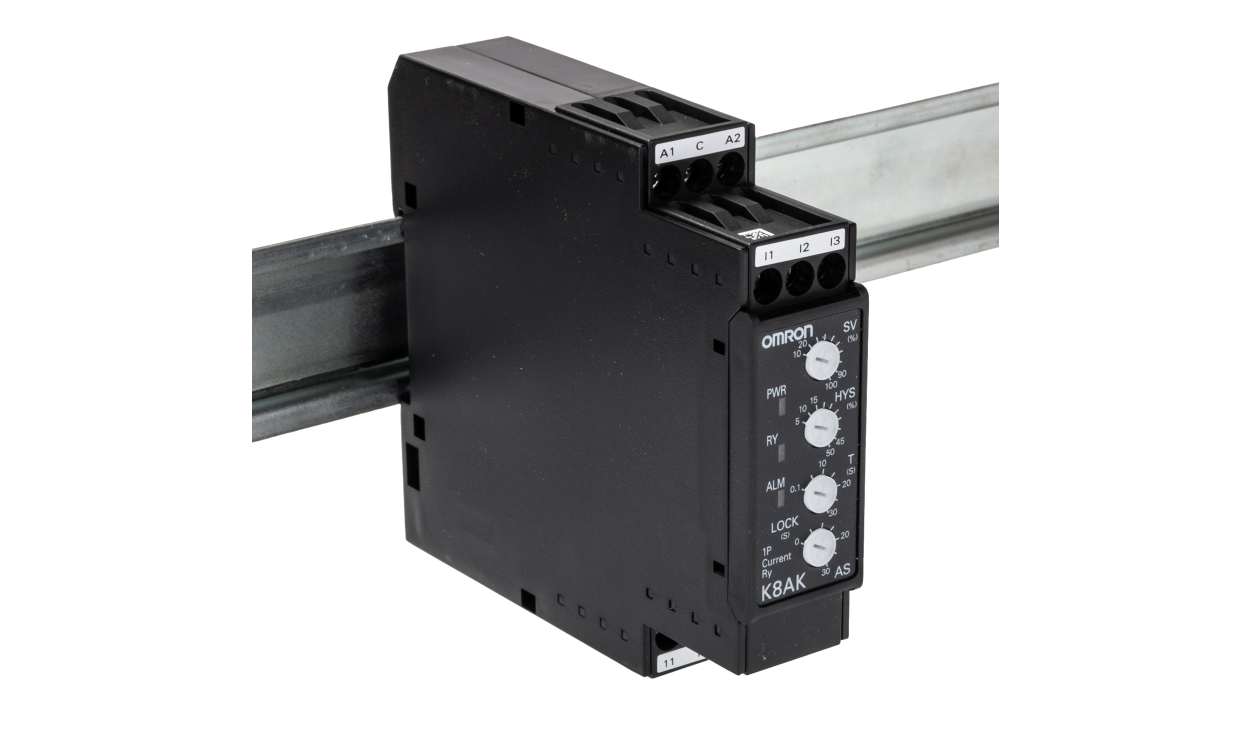

Omron K8AK-AS3 100-240VAC, Current Monitoring Relay, 1 Phase, SPDT, DIN Rail

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron K8AK-AS3 100-240VAC, Current Monitoring Relay, 1 Phase, SPDT, DIN Rail

Name: Omron K8AK-AS3 100-240VAC, Current Monitoring Relay, 1 Phase, SPDT, DIN Rail
Brand: OMRON
SKU: K8AK-AS3 100-240VAC
Availability: OutOfStock

Part Number : K8AK-AS3 100-240VAC

Monitoring relay 22.5mm wide, Single phase over or under current 10 to 200A AC (External CT required), One SPDT,100-240 VAC

Availability: Sold out

Detailed Description
Specifications
Features

Omron K8AK-AS Series Monitoring Relay, SPDT Contact Configuration, DIN Rail Mount - K8AK-AS3 100-240VAC

This monitoring relay is a vital component for electrical applications, specifically engineered for reliable current monitoring in single-phase systems. It can detect both overcurrent and undercurrent conditions, enhancing the safety and efficiency of electrical systems, making it an important element in industrial monitoring solutions. Its sturdy design meets a range of automation and electronics requirements.

Features & Benefits

• Provides overcurrent and undercurrent protection for increased safety
• Easy DIN rail installation for user convenience
• Compact size optimises space within electrical enclosures
• IP20 specifications offer dust ingress protection
• User-friendly screw terminal design simplifies wiring

Applications

• Protects industrial machinery from current fluctuations
• Monitors electrical loads in automation systems
• Enhances operational safety in power distribution networks
• Utilised in HVAC systems for effective electrical monitoring

What is the temperature range for operation?

The device operates effectively between -20°C and +60°C.

How should this be mounted for optimal function?

It is designed for mounting on a DIN rail, ensuring secure installation.

What happens if the current exceeds the specified limits?

The relay activates protection mechanisms to avert damage to connected systems.

Can this device be used in conjunction with other monitoring systems?

Yes, it can integrate seamlessly with a variety of electrical monitoring devices.

Standards

EN 60947-5-1 pollution level 2 installation category III, UL 508.
Terminal protection IP20.

Brand	Omron
Monitoring Application	Current
Electrical Phase	1
Contact Configuration	SPDT
Mounting Type	DIN Rail
Minimum Current Sensed	10A
Maximum Current Sensed	200A
Current Sensitivity	Overcurrent, Undercurrent
Series	K8AK-AS
Dimensions	100 x 22.5 x 90mm
Current Range	10 → 100 A, 20 → 200A
Terminal Type	Screw
Length	100mm
Standards Met	CCC, CE, CSA, cURus
Special Features	IP20 Terminal
Operating Temperature Range	-20 → +60°C
Maximum Operating Temperature	+60°C
Width	22.5mm
Minimum Operating Temperature	-20°C
Height	90mm

Monitoring relay 22.5mm wide, Single phase over or under current 10 to 200A AC (External CT required), One SPDT,100-240 VAC
