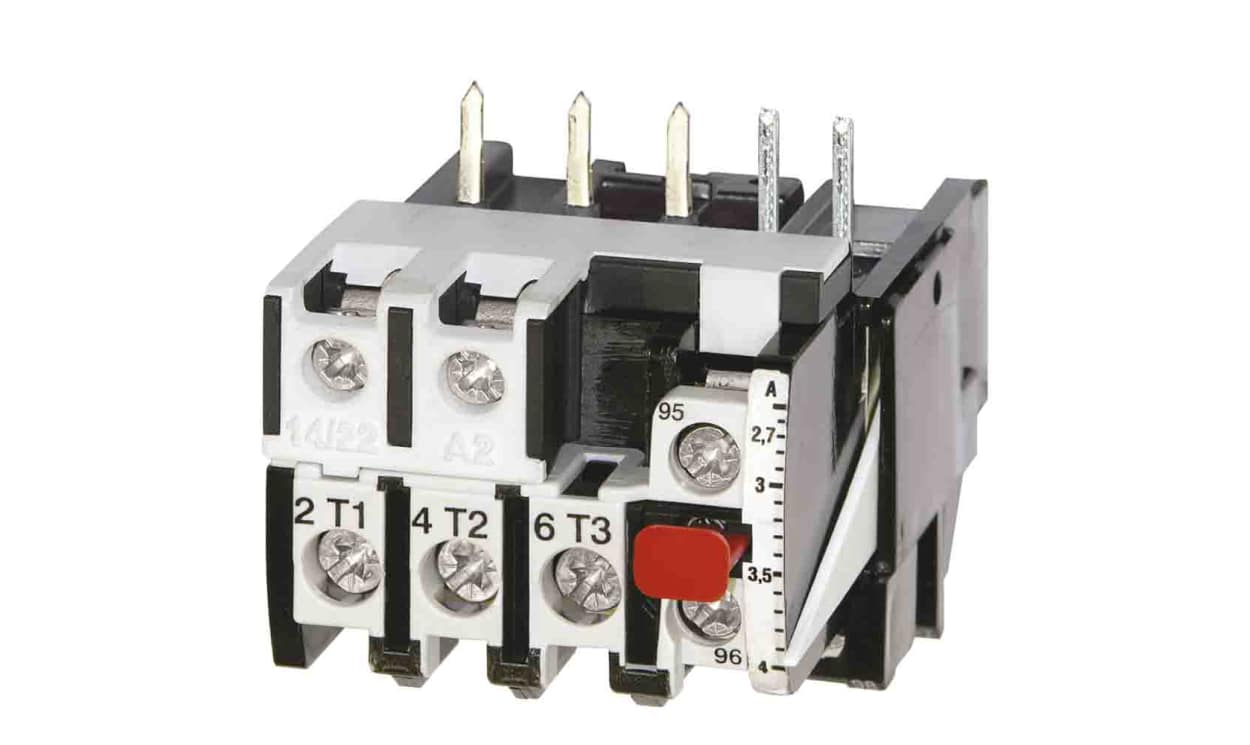

Name: Omron J7TKN-A-4, J7TKN Overload Relay, 2.7-4 A F.L.C, 23 A Contact Rating, 24 Vdc, 3P
Brand: OMRON
SKU: J7TKN-A-4
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron J7TKN-A-4, J7TKN Overload Relay, 2.7-4 A F.L.C, 23 A Contact Rating, 24 Vdc, 3P

Part Number : J7TKN-A-4

Availability: Sold out

Detailed Description
Specifications

Omron J7TKN Series Overload Relay, 2.7 to 4 A FLC Motor Rating, 600V AC Contact Voltage Rating - J7TKN-A-4

This overload relay is a vital component in electrical systems, designed to protect motors from overload conditions. The compact unit measures 48.5mm in width, 77mm in depth, and 95mm in length. It operates at a control voltage of 24V DC, making it suitable for various industrial applications.

Features & Benefits

• Designed for direct and separate mounting to optimise space
• Features a robust 600V AC contact voltage rating for high reliability
• Capable of handling a contact current rating of up to 23A
• Compact design ideal for installations in constrained environments

Applications

• Used for motor protection in industrial automation
• Suitable for mechanical and electrical machinery
• Ideal for use in systems requiring reliable overload protection
• Utilised in environments with 24V DC control systems

How does the relay prevent damage to motors during overload situations?

It senses excess current and interrupts power to the motor, preventing overheating and damage.

What environmental conditions can this unit withstand?

It operates effectively between -25°C to 60°C, ensuring reliability in various settings.

What is the significance of the 3-pole configuration?

The 3-pole design facilitates the protection of three-phase motors, enhancing operational safety and efficiency.

Brand	Omron
FLC Motor Rating	2.7-4 A
Contact Current Rating	23 A
Pole Configuration	3P
Series	J7TKN
Width	48.5mm
Length	95mm
Depth	77mm
Control Voltage	24 Vdc
Contact Voltage Rating	600 V ac
