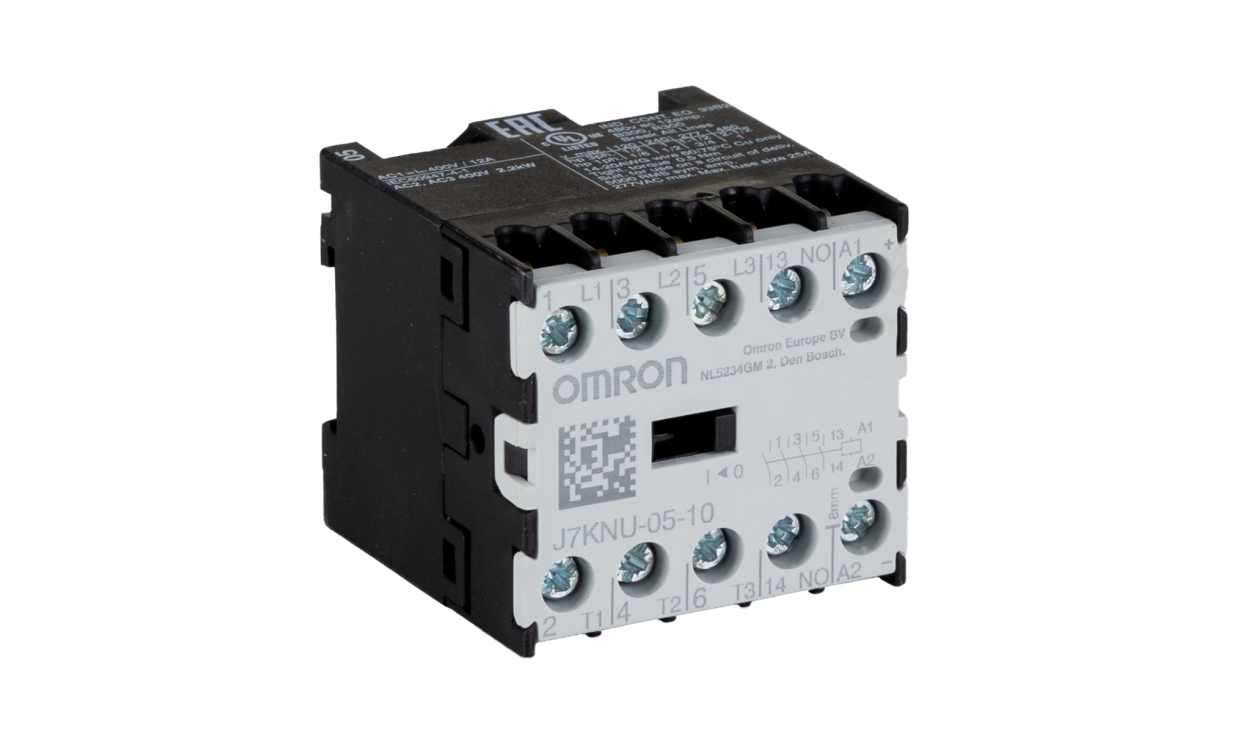

OMRON J7KNU-05-10 24 | J7KNU 3-Pole Contactor | 24 V Coil, 5 A, 2.2 kW, 3NO + 1NO Aux
The OMRON J7KNU-05-10 24 is a J7KNU series three-pole contactor with a 24 V coil and control voltage. Its 3NO main contacts are rated at 5 A and 2.2 kW, and it adds one 1NO auxiliary contact with screw terminals.
- 24 V coil and control voltage
- 3 poles (3P), 3NO
- 1NO auxiliary contact
- 5 A contact current, 2.2 kW
- Screw terminals
- Minimum operating temperature -40 °C
- Detailed Description
- Specifications
- Downloads
Omron J7KNU Series Contactor, 24V Coil Voltage, 5A Contact Current Rating - J7KNU-05-10 24
Features & Benefits
• Includes one auxiliary contact, expanding circuit control options
• Power rating of 2.2kW, ensuring sufficient supply for various tasks
Applications
• Suitable for switching electrical motors and machinery
• Applicable in HVAC systems for effective power management
• Ideal for controlling lighting systems in commercial environments
What is the input current for this device?
How many auxiliary contacts are included with this contactor?
What is the significance of the 24V control voltage?
Is installation straightforward for this contactor?
| Brand | Omron |
| Series | J7KNU |
| Coil Voltage | 24 V |
| Contact Current Rating | 5 A |
| Number of Poles | 3 |
| Power Rating | 2.2 kW |
| Normal State Configuration | 3NO |
| Range | J7KNU Series |
| Auxiliary Contact Configuration | 1NO |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Pole and Throw Configuration | 3P |
| Maximum Operating Temperature | +60 °C, +90 °C |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Control Voltage | 24 V |
| Input Current | 5 A, 12 A |
