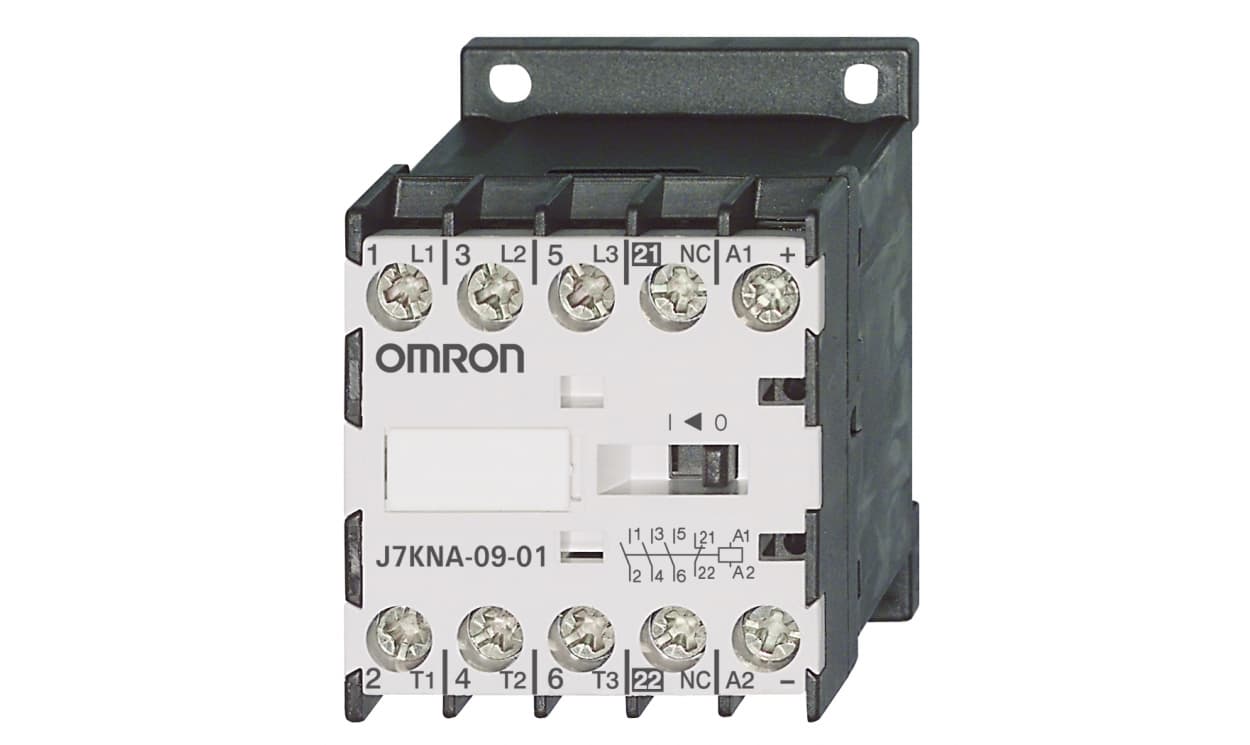

OMRON J7KNA-09-01 24D | 3-Pole Contactor | 24 V dc Coil, 9 A, 4 kW, 3NO
OMRON J7KNA-09-01 24D is a J7KNA series three-pole contactor with a 24 V dc coil, rated at 9 A and 4 kW. It has a 3NO contact configuration, one 1NC auxiliary contact and screw terminals.
- Coil voltage: 24 V dc
- Contact rating: 9 A, 4 kW
- Contact configuration: 3NO
- Auxiliary contacts: 1 (1NC)
- Dimensions: width 45 mm, length 49 mm, depth 57.5 mm
- Operating temperature: -40 °C to +60 °C
- Detailed Description
- Specifications
Omron J7KNA Series Contactor, 24V DC Coil Voltage, 9A Contact Current Rating - J7KNA-09-01 24D
Features & Benefits
• Incorporates 3 poles for enhanced electrical capacity
• Supports contact current rating of 9A for reliable operation
• Includes one auxiliary contact for added functionality
Applications
• Utilised in control panels for efficient motor switching
• Ideal for HVAC systems to regulate compressor functions
• Used in commercial buildings for lighting control and management
What is the maximum temperature range for operation?
How is the contactor connected in an electrical circuit?
In what scenarios is this contactor most beneficial?
Can this contactor handle a high inrush current?
| Brand | Omron |
| Series | J7KNA |
| Coil Voltage | 24 V dc |
| Contact Current Rating | 9 A |
| Number of Poles | 3 |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Auxiliary Contact Configuration | 1NC |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 45 mm (1.77 in) |
| Depth | 57.5 mm (2.26 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Length | 49 mm (1.93 in) |
