OMRON H5CX-L8-N | Multifunction Timer Relay | 100–240 V AC, SPDT, 8-Pin

Name: OMRON H5CX-L8-N | Multifunction Timer Relay | 100–240 V AC, SPDT, 8-Pin
Brand: OMRON
SKU: H5CX-L8-N
Availability: OutOfStock

Part Number : H5CX-L8-N

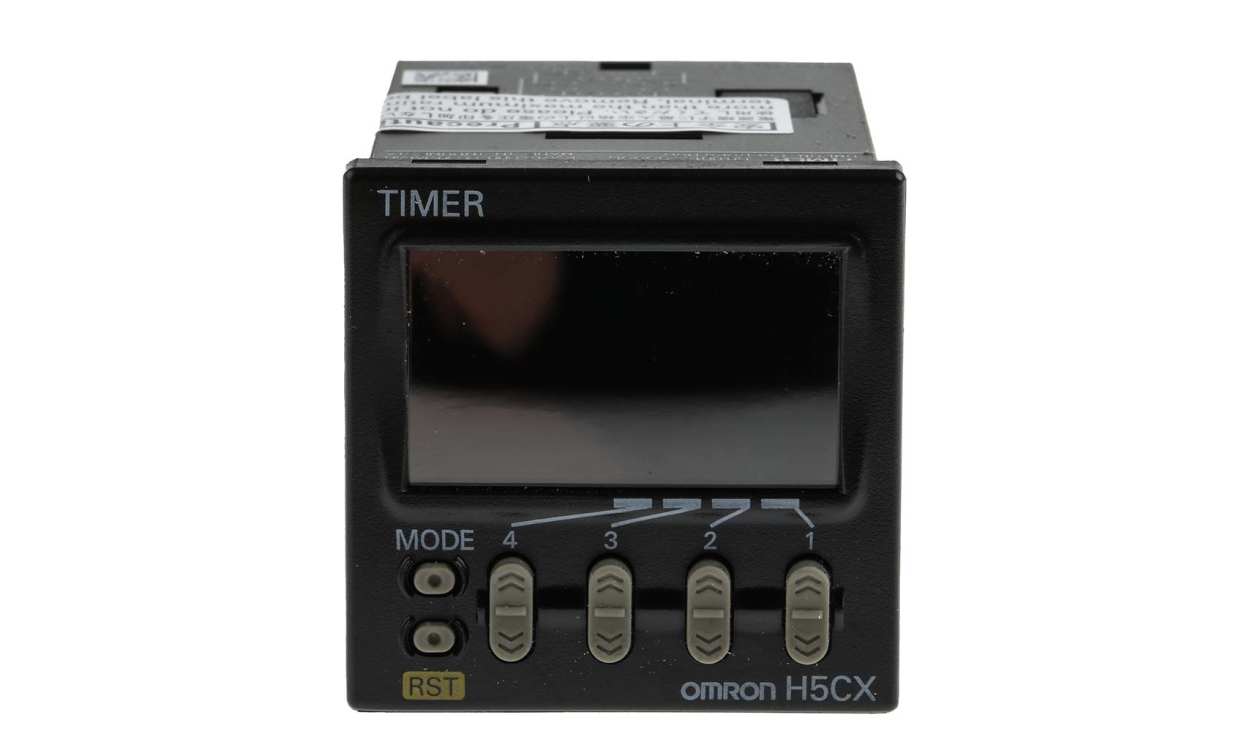

The OMRON H5CX-L8-N is an H5CX panel-mount timer relay with an 8-pin connector, supplied at 100–240 V AC. It provides one SPDT contact and a 0.001 s to 9999 h time range.

8-pin connector termination
Modes: flicker OFF start 1/2, flicker ON start 1/2
Time range: 0.001 s to 9999 h
1 contact, SPDT
48 x 48 mm, 63.7 mm depth
Maximum operating temperature 55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Ultra Compact Digital Timer - H5CX Series

H5CX Series of ultra-compact digital timers provide advanced functions and security settings to suit your timing needs.

Features and Benefits

• 12 mm character height
• Shorter body depth
• Three-colour display value, red, green or orange
• Up/Down keys for each digit
• Twin timer and variable ON/OFF duty modes
• Service life notification - the number of times that the control output turns ON is counted and an alarm is displayed when a preset count is exceeded
• Setting upper limit prevents unwanted operation
• Isolated power supply and input circuits (Prevent unwanted circuit paths) on 100-240 V ac versions
• 0.0001 s to 9999 h, 10 ranges
• Input NPN, PNP and contact

Omron H5CX Series Timer Relay, 100 to 240V AC Supply Voltage, SPDT Switch Configuration - H5CX-L8-N

This timer relay is designed for precise control in various automation applications. With an operating range of 0.001 seconds to 9999 hours, it addresses the timing functions required in industrial environments. The device is built for durability, making it a valuable component in electrical and mechanical sectors.

Features & Benefits

• Multi-function capabilities for varied applications
• Maximum current support of 5A for effective operation
• External power supply for installation flexibility
• Designed for panel mounting to optimise space utilisation
• Various modes to meet specific timing requirements
• SPDT configuration for straightforward connections

Applications

• Provides precise timing in automation systems
• Employed in industrial machinery for operational control
• Suitable for controlling lighting systems in commercial environments
• Utilised in HV AC systems for accurate cycle timing
• Implemented in water treatment processes for effective management

What is the maximum voltage the timer can operate at?

It can handle a maximum voltage of 240V AC, offering versatility for numerous applications.

How to install the timer relay?

The timer relay is designed for panel mounting, ensuring a secure and straightforward installation process.

Can it be adjusted for different time settings?

Yes, it features a time range of 0.001 seconds to 9999 hours, allowing precise adjustments as required.

What types of connections does it support?

It uses an 8-pin connector for easy and reliable connections.

Is this suitable for outdoor use?

The operating temperature range is between -10°C and +55°C

ensure it is installed in a suitable environment for optimal performance.

Brand	Omron
Supply Voltage	100 → 240V ac
Mounting Type	Panel Mount
Mode of Operation	Flicker OFF Start 1, Flicker OFF Start 2, Flicker ON Start 1, Flicker ON Start 2
Time Range	0.001 s → 9999h
Number of Contacts	1
Number of Timer Functions	Multi Function
Time Increment	Hours, Seconds
Maximum Current	0.005A
Switch Configuration	SPDT
Terminal Type	8-Pin Connector
Width	48mm
Power Supply	External
Depth	63.7mm
Length	48mm
Series	H5CX
Maximum Operating Temperature	+55°C
