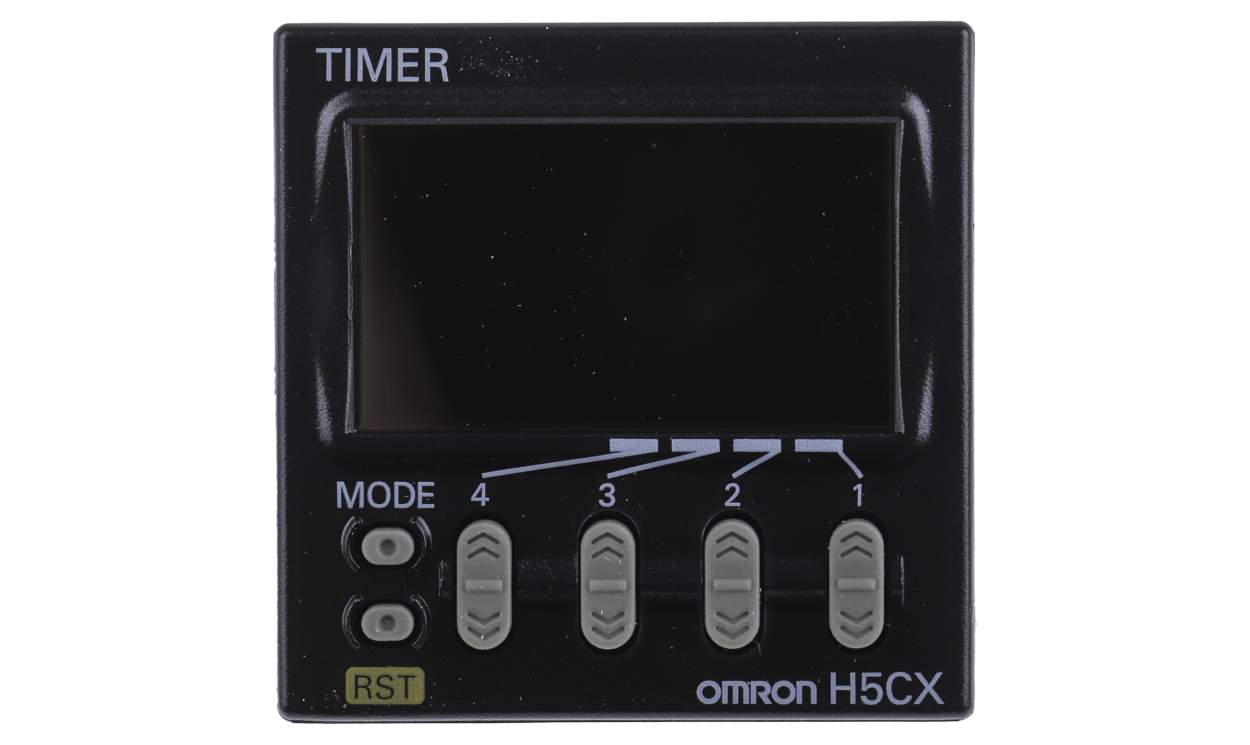

Omron H5CX-A-N, H5CX Series Panel Mount Timer Relay, 100 → 240V ac, 1-Contact, 0.001 s → 9999h

Name: Omron H5CX-A-N, H5CX Series Panel Mount Timer Relay, 100 → 240V ac, 1-Contact, 0.001 s → 9999h
Brand: OMRON
SKU: H5CX-A-N
Availability: OutOfStock

Part Number : H5CX-A-N

Timer, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), multifunction, NPN/PNP/No voltage input selectable, SPDT 5 A relay output, 100-240 VAC supply, includes color change display function

Availability: Sold out

Detailed Description
Specifications
Features

Omron H5CX Series Timer Relay, 0.005 A Maximum Current, Panel Mount - H5CX-A-N

This panel mount timer relay by Omron is a versatile and efficient solution for timing applications in the automation, electronics, electrical, and mechanical industries. With its multi function capabilities and adjustable features, this timer relay is designed to meet the diverse needs of users seeking precise control and reliability in their operations.

Features & Benefits

• Offers multiple timing ranges from 0.001s to 9999h for precise time control
• Features a back lit LCD display for excellent visibility in all lighting conditions
• Includes various timer functions such as power on delay, signal on delay, and repeat cycle for enhanced functionality
• Equipped with a screw terminal type for easy and secure wiring connection
• Provides a SPDT switch configuration for flexible output control options

Applications

• Ideal for panel mounting applications in industrial automation settings
• Suitable for tasks requiring interval timing, flicker adjustment, and signal control
• Perfect for applications that demand precise timing, such as batch processing and production line operations

Can it be easily integrated into existing panel setups?

Yes, the panel mount design of the Omron timer relay allows for seamless integration into various control systems.

Will it provide reliable time control for critical operations?

Yes, the timer relay offers accurate timing functions to ensure precise operation in crucial tasks.

Is it suitable for applications requiring regular on/off switching?

Yes, the timer relay's repeat cycle feature makes it ideal for tasks that involve continuous on/off operations.

Brand	Omron
Supply Voltage	100 → 240V ac
Mounting Type	Panel Mount
Mode of Operation	Cumulative, Interval, ON/OFF Duty Adjustable Flicker, Power ON Delay, Repeat Cycle, Signal OFF Delay, Signal ON Delay, Stopwatch
Time Range	0.001 s → 9999h
Number of Contacts	1
Number of Timer Functions	Multi Function
Time Increment	Hours, Seconds
Maximum Current	0.005A
Maximum Voltage	240V ac
Terminal Type	Screw
Switch Configuration	SPDT
Width	48mm
Minimum Voltage	100V ac
Power Supply	External
Maximum Operating Temperature	+55°C
Depth	63.7mm
Series	H5CX
Length	48mm
Minimum Operating Temperature	-10°C
