Omron H3YN-41 AC200-230, H3YN Series DIN Rail, Panel Mount Timer Relay, 200 → 230V ac, 4-Contact, 0.1 min → 10h

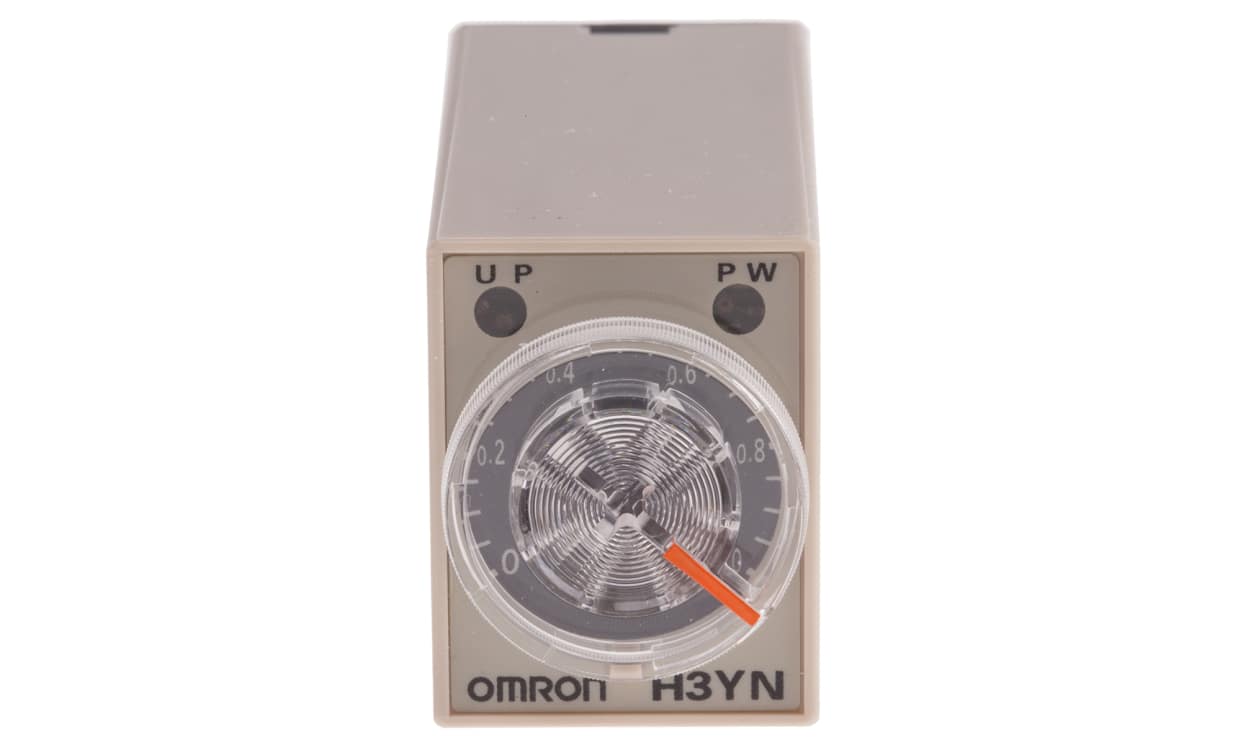

Name: Omron H3YN-41 AC200-230, H3YN Series DIN Rail, Panel Mount Timer Relay, 200 → 230V ac, 4-Contact, 0.1 min → 10h
Brand: OMRON
SKU: H3YN-41 AC200-230
Availability: OutOfStock

Part Number : H3YN-41 AC200-230

Timer, plug-in, 14-pin, multifunction, 0.1m to 10h long time range model, 4PDT, 200-230 VAC supply voltage

Availability: Sold out

Detailed Description
Specifications
Features

Omron H3YN Series Timer Relay, 200V Supply Voltage, 4 Contactor Configuration - H3YN-41 AC200-230

This timer relay is designed for precise timing applications in various automation settings. It provides users with versatile functionalities such as interval timing and flicker start operations. Compact in size, with dimensions of 21.5mm in width, 63mm in depth, and 28mm in length, it fits seamlessly into DIN rail and panel mounts while operating within a temperature range of -10°C to +50°C.

Features & Benefits

• Multi-function capabilities enhance operational flexibility
• Supports voltage control for various requirement
• User-selectable time range simplifies inventory management
• Flicker OFF and ON start options cater to diverse requirements
• Conforms to low voltage and EMC directives ensuring safety
• Socket compatibility offers ease of integration with other devices

Applications

• Utilised in industrial automation for precise cycle control
• Implemented in process control systems for time-sensitive operations
• Suitable for use with micro loads in electrical circuits
• Used in production lines requiring multiple timing functions

How do I determine the appropriate time setting for specific tasks?

The time range selection is achieved through DIP switches, allowing easy adjustment from 0.1 minutes to 10 hours based on operational needs.

What are the safety features to consider when using the timer in high-temperature environments?

The timer operates safely at high temperatures up to 50°C, but it's advisable to supply 90% to 110% of the rated voltage in such conditions to ensure reliability.

Can this unit switch micro loads, and what specifications should I consider?

Yes, this timer relay can switch micro loads. For optimal performance, ensure that the model version specified for micro loads, such as the H3YN-41-Z series, is used to meet specific electrical requirements.

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 min → 10h
Number of Contacts	4
Number of Timer Functions	Multi Function
Time Increment	Hours, Minutes
Maximum Current	3A
Maximum Voltage	250V ac
Terminal Type	Socket
Switch Configuration	4PDT
Width	21.5mm
Power Supply	External
Maximum Operating Temperature	+50°C
Depth	63mm
Length	28mm
Series	H3YN
Time Delay	0.1s
Minimum Operating Temperature	-10°C

Timer, plug-in, 14-pin, multifunction, 0.1m to 10h long time range model, 4PDT, 200-230 VAC supply voltage
