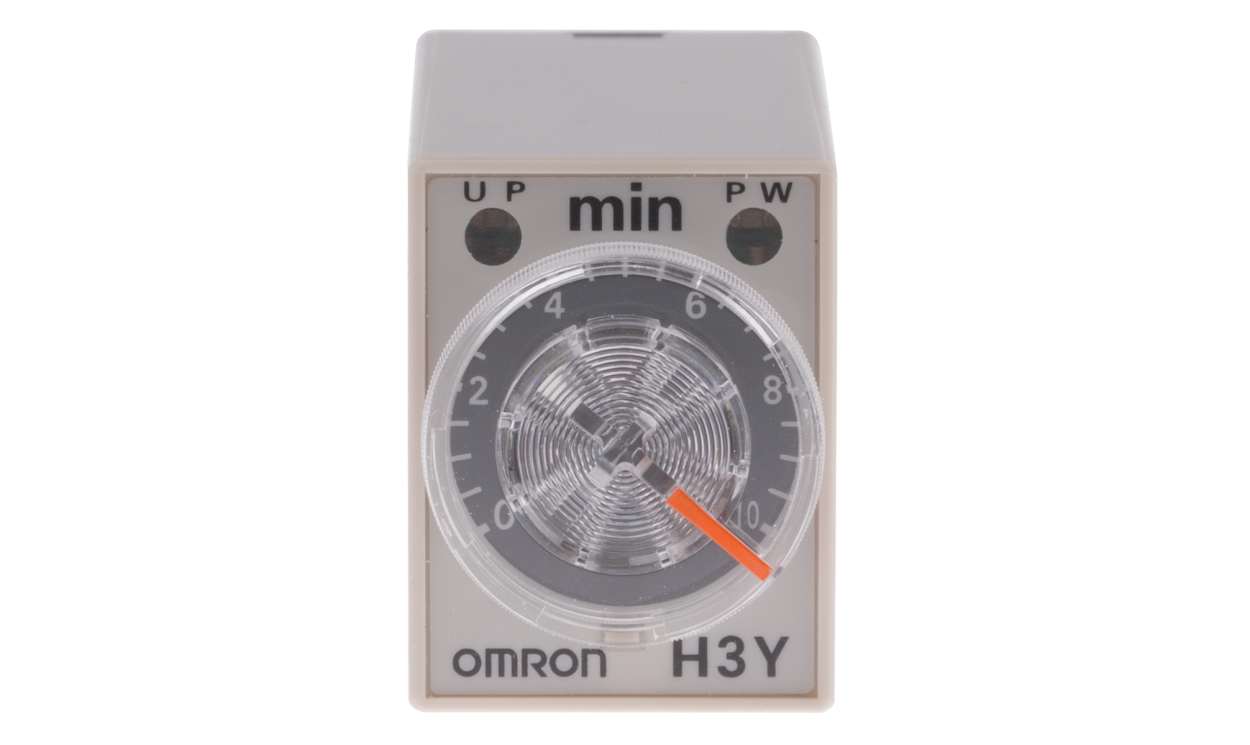

Omron H3Y-4 AC24 10M, H3Y-4 Series DIN Rail, Surface Mount Timer Relay, 24V ac, 4-Contact, 0.5 → 10min, 1-Function, 4PDT

Name: Omron H3Y-4 AC24 10M, H3Y-4 Series DIN Rail, Surface Mount Timer Relay, 24V ac, 4-Contact, 0.5 → 10min, 1-Function, 4PDT
Brand: OMRON
SKU: H3Y-4 AC24 10M
Availability: OutOfStock

Part Number : H3Y-4 AC24 10M

Availability: Sold out

Detailed Description
Specifications

Miniature - H3Y4

Function - 111
Pin compatible with MY power relay
Time settings adjustable with a screwdriver
All have 14 pins (rectangular format)

Standards

EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110

Approvals

UL, CSA

Brand	Omron
Supply Voltage	24V ac
Mounting Type	DIN Rail, Surface Mount
Mode of Operation	ON Delay
Time Range	0.5 → 10min
Number of Contacts	4
Number of Timer Functions	Single
Contact Configuration	4PDT
Time Increment	Minutes
Maximum Current	5A
Maximum Voltage	250V ac
Switch Configuration	4PDT
Terminal Type	Plug In
Power Supply	External
Width	21.5mm
Length	28mm
Maximum Operating Temperature	+50°C
Series	H3Y-4
Depth	63mm
Minimum Operating Temperature	-10°C
