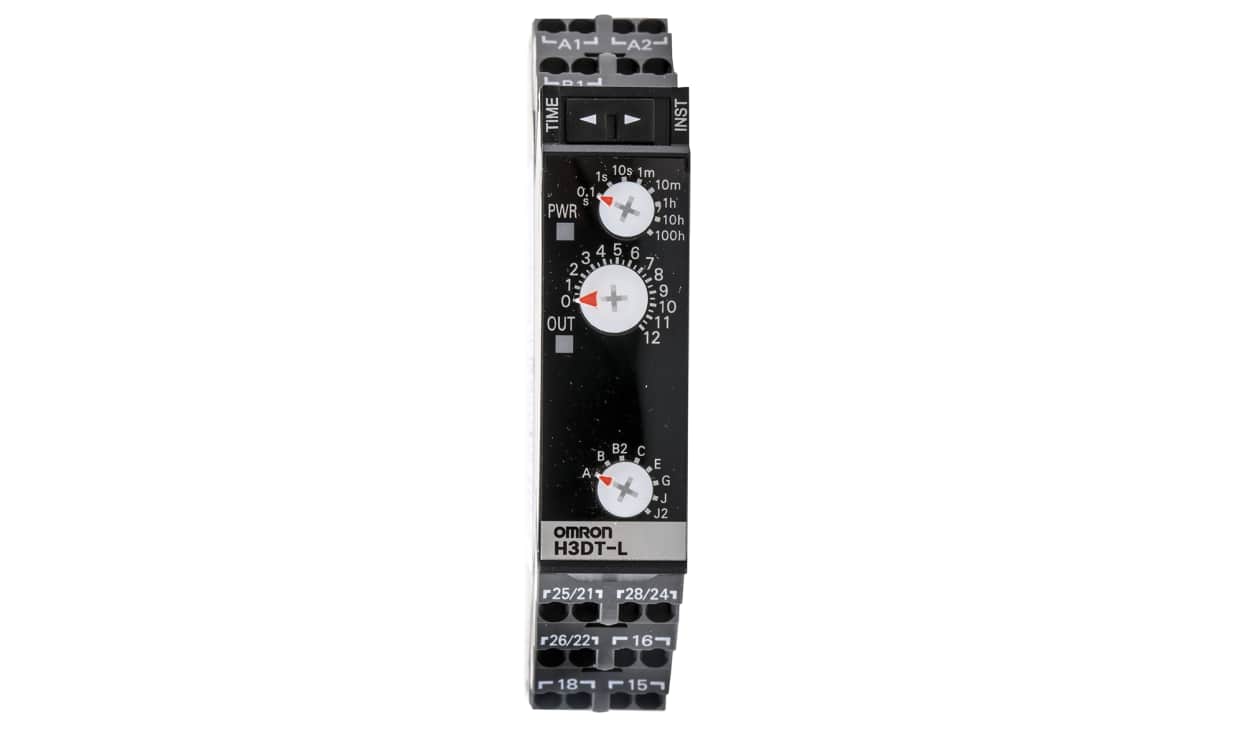

Omron H3DT-L2 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 4-Contact, 0.1 s → 100h, DPDT

Name: Omron H3DT-L2 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 4-Contact, 0.1 s → 100h, DPDT
Brand: OMRON
SKU: H3DT-L2 24-240VAC/DC
Availability: OutOfStock

Part Number : H3DT-L2 24-240VAC/DC

Availability: Sold out

Detailed Description
Specifications

H3DT-N/H3DT-L Multi function Timer

Solid-sate time delay relays with push-in plus technology are used for in-panel applications. They are ideal in space saving applications due to their slim design and help reduce work in control panels. The timers reduce power consumption by up to 60% to help reduce heat generation in control panels.

• Multiple time ranges and operating modes
• Slim design, 17.5 mm width
• Sequence checks are easily performed by setting an instantaneous output to 0
• Start signal control for some operating modes
• The time-limit DPDT output contacts can be changed to time-limit SPDT and instantaneous SPDT output contacts using a switch
• Fast wiring due to push-in plus technology
• Relay output
• 24-240 V ac/dc supply voltage
• DIN Rail mounting

Brand	Omron
Supply Voltage	24 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Delay ON, Delay ON/OFF, Flicker OFF Start, Flicker ON Start, Interval, One Shot
Time Range	0.1 s → 100h
Number of Contacts	4
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Switch Configuration	DPDT
Terminal Type	Screw
Power Supply	External
Width	90mm
Maximum Operating Temperature	+60°C
Depth	100mm
Series	H3DT
Length	17.5mm
Contact Material	Silver Alloy
