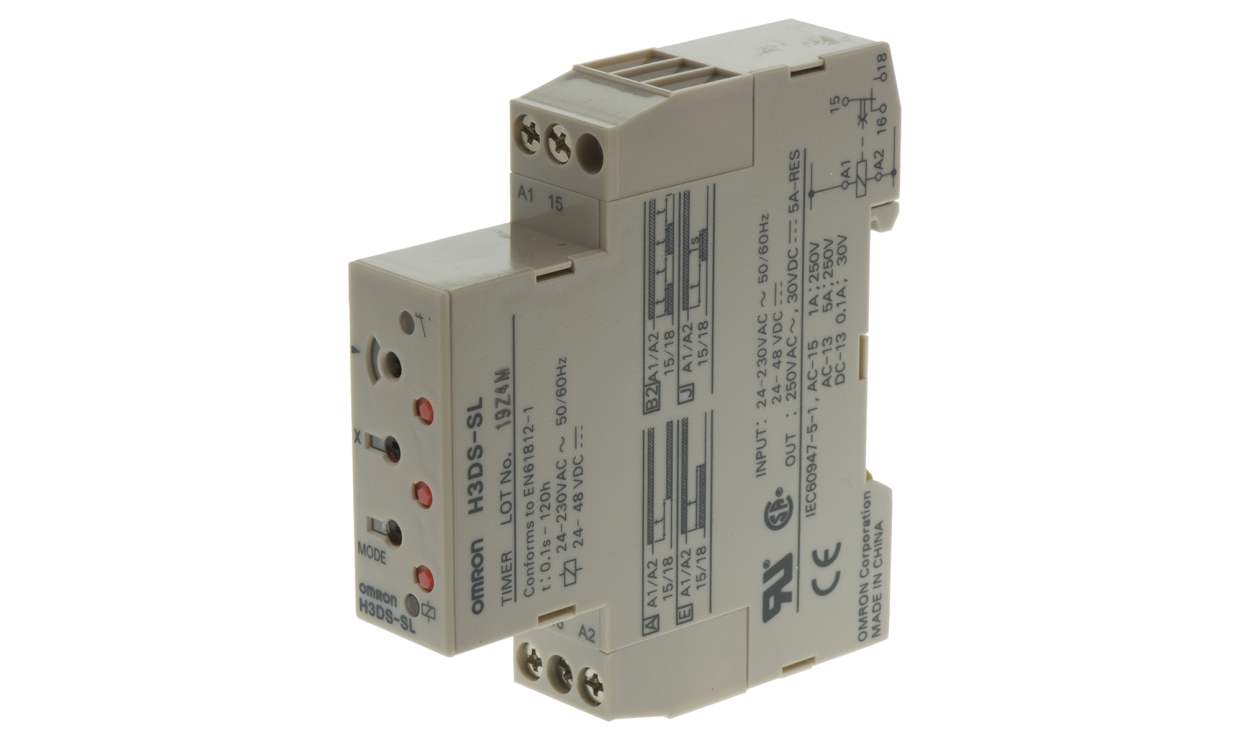

Omron H3DS-SL AC/DC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230V ac, 1-Contact, 0.1 s to 120 h, SPDT

Name: Omron H3DS-SL AC/DC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230V ac, 1-Contact, 0.1 s to 120 h, SPDT
Brand: OMRON
SKU: H3DS-SL AC/DC
Availability: OutOfStock

Part Number : H3DS-SL AC/DC

Availability: Sold out

Detailed Description
Specifications

Omron H3DS Series Timer Relay, SPDT Contact Configuration, 24 to 230V AC Supply Voltage - H3DS-SL AC/DC

The H3DS timer relay is a versatile component designed for a variety of automation and control uses. It operates within a supply voltage range of 24 to 230V AC and features multiple functions to address different timing requirements. With a compact size of 80x73mm, this device is perfect for installation on DIN rails in electrical panels.

Features & Benefits

• Flexible flicker ON start function for adaptable operation
• Interval operation for managing process delays
• ON delay settings for accurate timing
• Single pole double throw (SPDT) configuration for enhanced circuit control
• Time range from 0.1s to 120h suitable for various applications

Applications

• Integration with industrial automation systems
• Used in HVAC control
• Suitable for lighting control circuits
• Implemented in motor control operations

Can it operate within a 24V to 230V range?

Yes, it operates effectively between 24V and 230V AC.

Will it manage outputs with a maximum current of 5A?

Yes, it can handle up to 5A.

Is it suitable for DIN rail mounting?

Yes, it is designed for easy installation on DIN rails.

Brand	Omron
Supply Voltage	24 → 230V ac
Mounting Type	DIN Rail
Mode of Operation	Flicker ON Start, Interval, ON Delay, One Shot
Time Range	0.1 s to 120 h
Number of Contacts	1
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Terminal Type	Screw
Switch Configuration	SPDT
Power Supply	External
Width	17.5mm
Maximum Operating Temperature	+55°C
Length	80mm
Depth	73mm
Series	H3DS
Time Delay	0.1s
