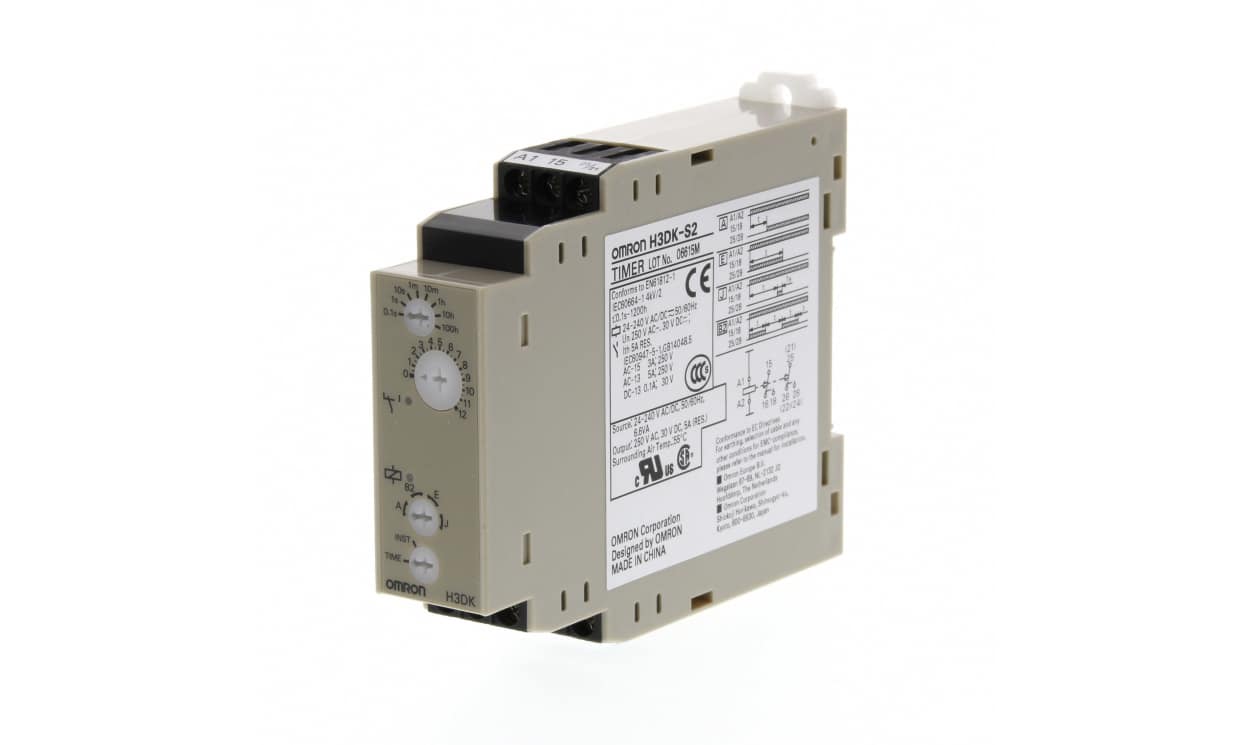

Omron H3DK-S2 24-240VAC/DC, H3DK Series DIN Rail Mount Timer Relay, 24-240V ac/dc, 2-Contact, 0.1s → 1200h, DPDT

Name: Omron H3DK-S2 24-240VAC/DC, H3DK Series DIN Rail Mount Timer Relay, 24-240V ac/dc, 2-Contact, 0.1s → 1200h, DPDT
Brand: OMRON
SKU: H3DK-S2 24-240VAC/DC
Availability: OutOfStock

Part Number : H3DK-S2 24-240VAC/DC

Timer, DIN-rail mounting, multi range, multi mode timer, 4 modes, 2 output relays, 24 to 240 VAC/DC

Availability: Sold out

Detailed Description
Specifications
Features

Omron H3DK Series Timer Relay, 24-240 V AC/DC Supply Voltage, 2 Contacts - H3DK-S2 AC/DC24-240

This timer relay is an essential component for automation and control systems. Designed for DIN rail mounting, it operates effectively within a supply voltage range of 24-240V AC/DC. Featuring a compact design, it provides multiple operation modes and is capable of managing extensive timing requirements, making it suitable for a variety of applications.

Features & Benefits

• Multi-function capability allows versatile time control settings
• Time range from 0.1s to 1200h accommodates diverse timing needs
• DPDT contact configuration ensures reliable switching performance
• Maximum operating temperature of +55°C supports durability in challenging environments
• Screw terminal type facilitates easy and secure installation
• Advanced contact material enhances longevity and performance

Applications

• Utilised in industrial automation for precise timing control
• Ideal for machinery that requires on delay or interval timing functions
• Employed in lighting systems with flicker ON start features
• Used for energy management systems needing multi-function timing

What types of control applications can benefit from multi-function capabilities?

This product is suitable for control applications requiring variable timing outputs, such as conveyor systems, pump controls, and HVAC systems, where different timing sequences are critical for operation.

How does the DPDT configuration contribute to functionality?

The double pole double throw (DPDT) configuration allows for simultaneous control of two circuits, providing flexibility to manage outputs that need to switch based on timing intervals or specific operational conditions.

What installation considerations should be kept in mind for optimal performance?

For optimal performance, ensure the timer relay is securely mounted on a DIN rail and that connections are firmly tightened to prevent issues related to loose wiring, which can affect operational reliability.

Brand	Omron
Supply Voltage	24-240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Flicker ON Start, Interval, ON Delay, One Shot Output
Time Range	0.1s → 1200h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Maximum Voltage	240V
Switch Configuration	DPDT
Terminal Type	Screw
Minimum Voltage	24V
Series	H3DK
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-20°C
Contact Material	Gold Plated

Timer, DIN-rail mounting, multi range, multi mode timer, 4 modes, 2 output relays, 24 to 240 VAC/DC

Omron H3DK-S2 24-240VAC/DC, H3DK Series DIN Rail Mount Timer Relay, 24-240V ac/dc, 2-Contact, 0.1s → 1200h, DPDT

Omron H3DK-S2 24-240VAC/DC, H3DK Series DIN Rail Mount Timer Relay, 24-240V ac/dc, 2-Contact, 0.1s → 1200h, DPDT

Omron H3DK Series Timer Relay, 24-240 V AC/DC Supply Voltage, 2 Contacts - H3DK-S2 AC/DC24-240

Features & Benefits

Applications

What types of control applications can benefit from multi-function capabilities?

How does the DPDT configuration contribute to functionality?

What installation considerations should be kept in mind for optimal performance?
