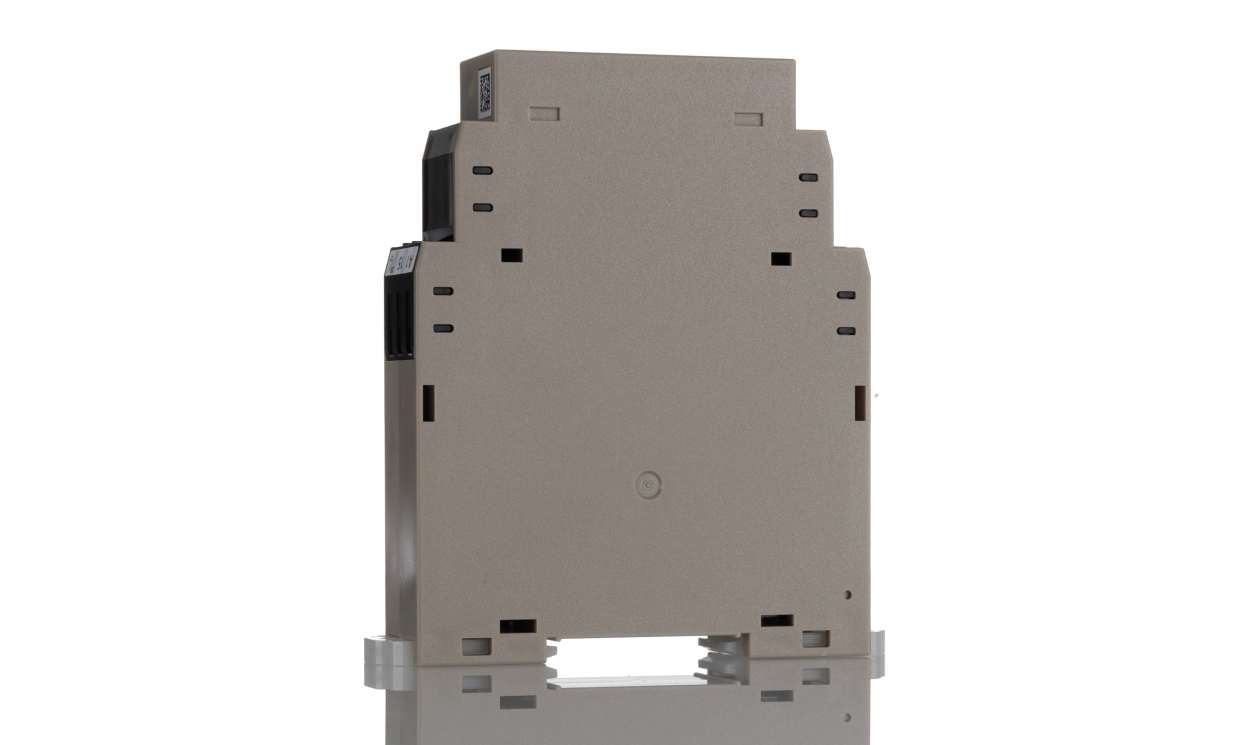

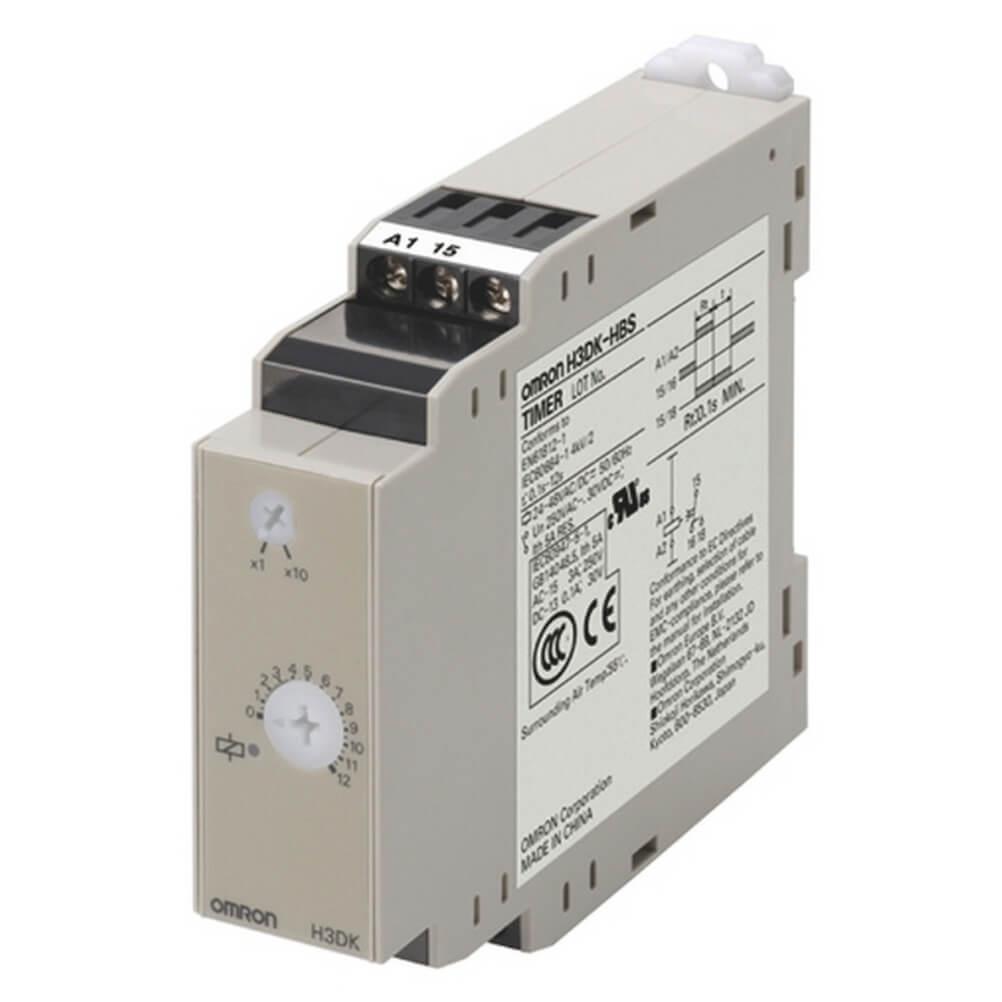

Omron H3DK-M2 24-240VAC/DC, H3DK-M Series DIN Rail Mount Timer Relay, 24-240V ac/dc, 4-Contact, 0.1 → 4320000s, DPDT

Name: Omron H3DK-M2 24-240VAC/DC, H3DK-M Series DIN Rail Mount Timer Relay, 24-240V ac/dc, 4-Contact, 0.1 → 4320000s, DPDT
Brand: OMRON
SKU: H3DK-M2 24-240VAC/DC
Availability: OutOfStock

Part Number : H3DK-M2 24-240VAC/DC

Timer, DIN-rail mounting, multi range, multi mode timer, 8 modes incl. off-delay, 2 output relays, 24 to 240 VAC/DC

Availability: Sold out

Detailed Description
Specifications
Features

Omron Timer Relay, 5A Maximum Current Rating, Screw Terminals - H3DK Series - H3DK-M2 AC/DC24-240

Stop or start up machinery at preset times with this timer relay from OMRON. To keep your setup streamlined, it has a DPDT configuration that lets you control two circuits simultaneously. Screw termination means you can set it up in a jiffy, and achieve a solid hold, without needing specialised tools. An impulse withstand voltage of 3kV takes care of safety by protecting against power surges. Thanks to a supply voltage range between 24 and 240V AC/DC, this versatile option is compatible with commonly used equipment such as alarm and lighting systems.

Features & Benefits

• Mechanical lifespan of 10 million cycles for long-lasting performance
• Weighs just 120g, so it puts minimal strain on your equipment
• IP30 rating means it's protected from tools and wires greater than 2.5mm
• Power-off time delay of 100ms enables your machinery shuts down quickly in the event of a hazard

Applications

• Manufacturing industry
• Food and beverage production
• Oil and gas plants

How many operating modes does this relay have?

The component has the eight modes – ON delay, flicker OFF start, flicker ON start, signal ON/OFF delay, signal OFF delay, interval, signal ON/OFF delay and one-shot mode. These let you configure equipment to meet the needs of your wider system.

Will it work with electronic equipment?

Yes, this timer relay is designed to facilitate timed operations in electronic devices.

Can it be used in automation systems?

Yes, this timer relay is suitable for automation systems that require precise timing control.

Brand	Omron
Supply Voltage	24-240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay, One Shot, Signal OFF Delay, Signal ON/OFF Delay
Time Range	0.1 → 4320000s
Number of Contacts	4
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	240V ac/dc
Terminal Type	Screw
Switch Configuration	DPDT
Minimum Voltage	24V ac/dc
Width	100mm
Depth	79mm
Series	H3DK-M
Maximum Operating Temperature	+55°C
Length	22.5mm
Minimum Operating Temperature	-20°C

Timer, DIN-rail mounting, multi range, multi mode timer, 8 modes incl. off-delay, 2 output relays, 24 to 240 VAC/DC
