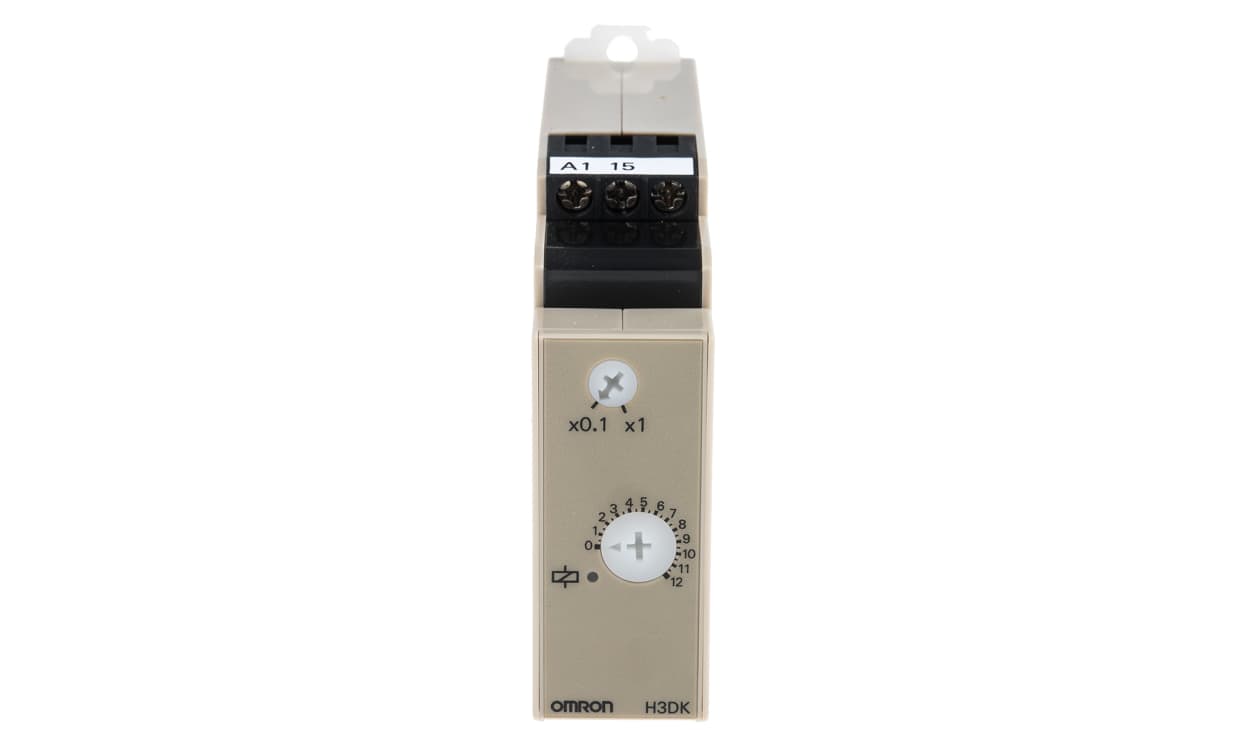

Omron H3DK-HCS 100-120VAC, H3DK Series DIN Rail Mount Timer Relay, 100 → 120V ac, 1-Contact, 0.1 → 1.2s, 1-Function

Name: Omron H3DK-HCS 100-120VAC, H3DK Series DIN Rail Mount Timer Relay, 100 → 120V ac, 1-Contact, 0.1 → 1.2s, 1-Function
Brand: OMRON
SKU: H3DK-HCS 100-120VAC
Availability: OutOfStock

Part Number : H3DK-HCS 100-120VAC

Availability: Sold out

Detailed Description
Specifications

True Off Delay - H3DK-H Series

Set two time ranges with each timer from 0.1 → 12 seconds (S Series) and from 1 → 120 seconds (L Series)
Operating mode: Power OFF Delay
DIN rail track mounting
Operating/resetting method: Instantaneous operation/time-limit reset
6 terminals
Insulation resistance: 100 MΩ min. at 500 Vdc
Protection class rating: IP30 (Terminal block: IP20)

Approvals

CE, cURus, CCC, LR

True Off Delay

Brand	Omron
Supply Voltage	100 → 120V ac
Mounting Type	DIN Rail
Mode of Operation	OFF Delay
Time Range	0.1 → 1.2 s, 1 → 12s
Number of Contacts	1
Number of Timer Functions	Single
Time Increment	Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Switch Configuration	SPDT
Terminal Type	Screw
Power Supply	Internal
Width	22.5mm
Maximum Operating Temperature	+55°C
Length	89.4mm
Depth	100mm
Series	H3DK
Minimum Operating Temperature	-20°C
