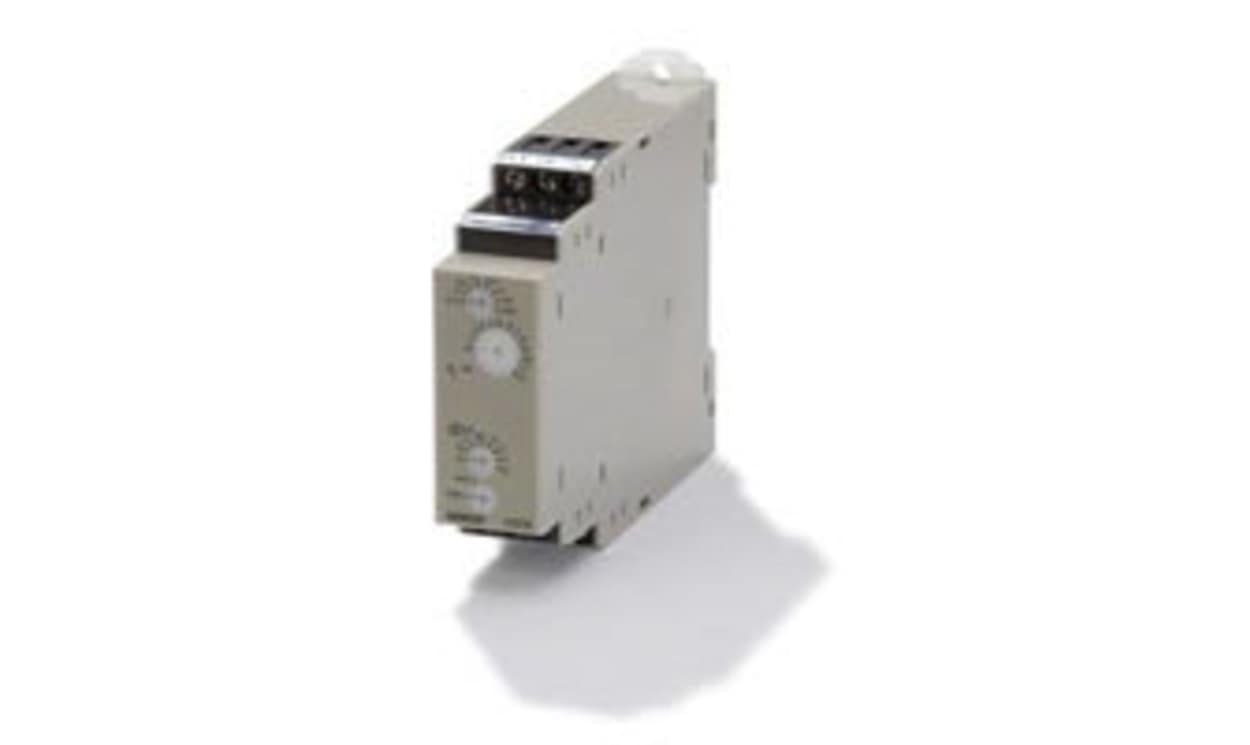

Omron H3DK-GA DC12, H3DK Series DIN Rail Mount Timer Relay, 12V dc, 2-Contact, 1 → 120s, SPDT

Name: Omron H3DK-GA DC12, H3DK Series DIN Rail Mount Timer Relay, 12V dc, 2-Contact, 1 → 120s, SPDT
Brand: OMRON
SKU: H3DK-GA DC12
Availability: OutOfStock

Part Number : H3DK-GA DC12

Availability: Sold out

Detailed Description
Specifications

Omron Timer Relay

The Omron H3DK series is a multifunction relay. It has a star-delta timer delay along with 2 changeover contacts and is DIN rail mount. The relay requires a supply 12VDC and a maximum current rating of 5A. It has an adjustable time range between 1sec and 120sec.

Features and Benefits

• Contact configuration is SPDT
• Operating temperature ranges between -20°C and 55°C
• Screw terminal type

Applications

• Industrial application
• Timing control

Certifications

• CE approved
• CSA approved
• EN 61812-1
• UL approved

Brand	Omron
Supply Voltage	12V dc
Mounting Type	DIN Rail
Mode of Operation	Star Delta
Time Range	1 → 120s
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Seconds
Maximum Current	5A
Maximum Voltage	12V dc
Terminal Type	Screw
Switch Configuration	SPDT
Power Supply	External
Width	79mm
Series	H3DK
Depth	100mm
Minimum Current	0.1A
Maximum Operating Temperature	+55°C
Length	22.5mm
