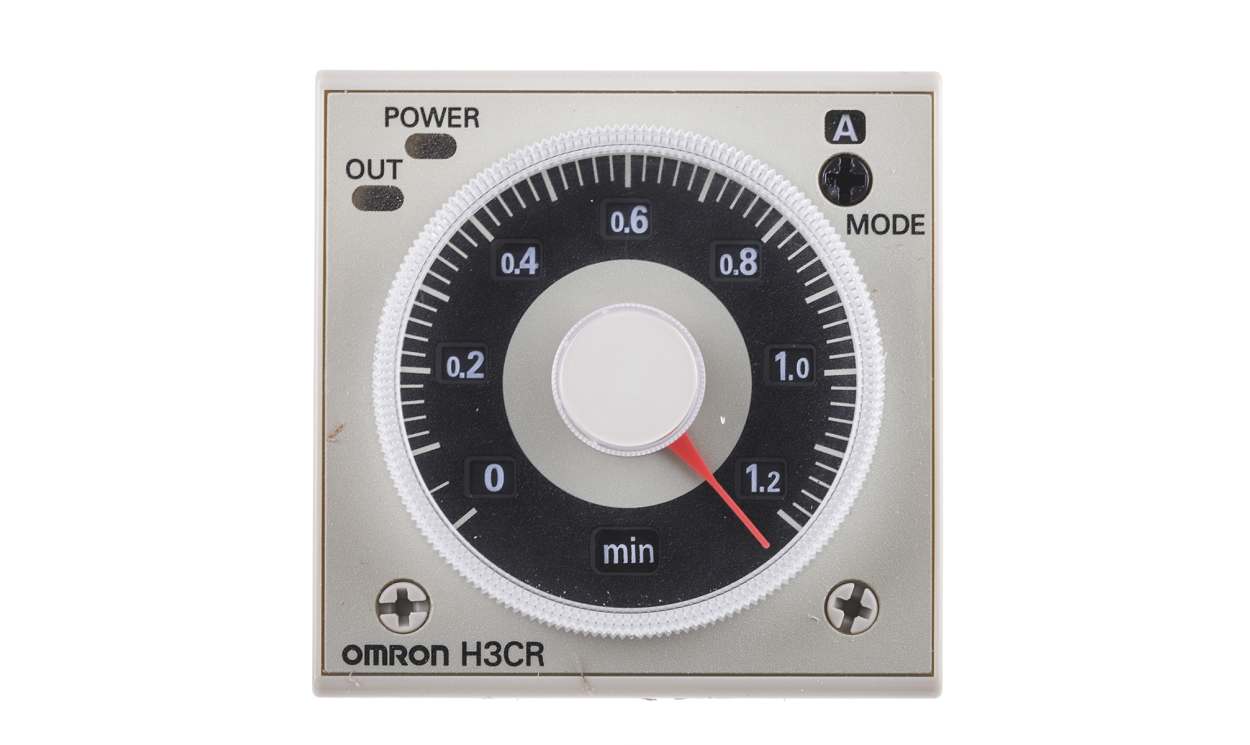

Name: Omron H3CR-AP AC100-240/DC100-125, H3CR Series DIN Rail Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s →
Brand: OMRON
SKU: H3CR-AP AC100-240/DC100-125
Availability: OutOfStock

Omron H3CR-AP AC100-240/DC100-125, H3CR Series DIN Rail Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s →

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H3CR-AP AC100-240/DC100-125, H3CR Series DIN Rail Mount Timer Relay, 100 → 125 V dc, 100 → 240V ac, 2-Contact, 0.05 s →

Part Number : H3CR-AP AC100-240/DC100-125

Availability: Sold out

Detailed Description
Specifications

Omron H3CR Series Timer Relay, DIN Rail Mount, Crimp Terminal - H3CR-AP AC100-240/DC100-125

This timer relay by Omron is a versatile and reliable solution for various timing applications in automation, electronics, electrical, and mechanical industries. With unique features like ON delay mode of operation and multi-function timer functions, this timer relay offers precise and efficient timing control. With a compact DIN rail mounting style and crimp terminal type, this timer relay is easy to install and use, providing internal power supply for enhanced convenience.

Features & Benefits

• DPDT contact configuration for versatile switching options
• Wide voltage range (100-240 V AC, 100-125 V DC) for flexible power supply compatibility
• Time range from 0.05 seconds to 300 hours for precise timing control
• Internal power supply eliminates the need for external power sources
• Crimp terminal type for secure and reliable connections
• Compact design with a width of 48mm for space-saving installation
• ON delay mode of operation for accurate timing

Applications

• Suitable for controlling lighting systems in industrial settings
• Ideal for regulating motor operation in machinery applications
• Can be used for timing sequences in production processes
• Used for temperature control in HVAC systems

Can it control multiple devices simultaneously?

Yes, this timer relay can control multiple devices at once, thanks to its DPDT contact configuration.

Will it work with different power supply voltages?

Yes, it is compatible with a wide voltage range from 100-240 V AC to 100-125 V DC.

Is it easy to install?

Yes, the compact DIN rail mounting style and crimp terminal type make installation quick and straightforward.

Can it handle long timing intervals?

Yes, this timer relay offers a time range from 0.05 seconds to 300 hours, catering to various timing requirements.

Will it need an external power source?

No, this timer relay comes with an internal power supply, eliminating the need for additional power sources.

Brand	Omron
Supply Voltage	100 → 125 V dc, 100 → 240V ac
Mounting Type	DIN Rail
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay, Signal OFF Delay, Signal ON/OFF Delay
Time Range	0.05 s → 300h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	125 V dc, 240V ac
Switch Configuration	DPDT
Terminal Type	Crimp
Minimum Voltage	100V ac/dc
Width	48mm
Power Supply	Internal
Depth	81.6mm
Length	48mm
Maximum Operating Temperature	+55°C
Series	H3CR
