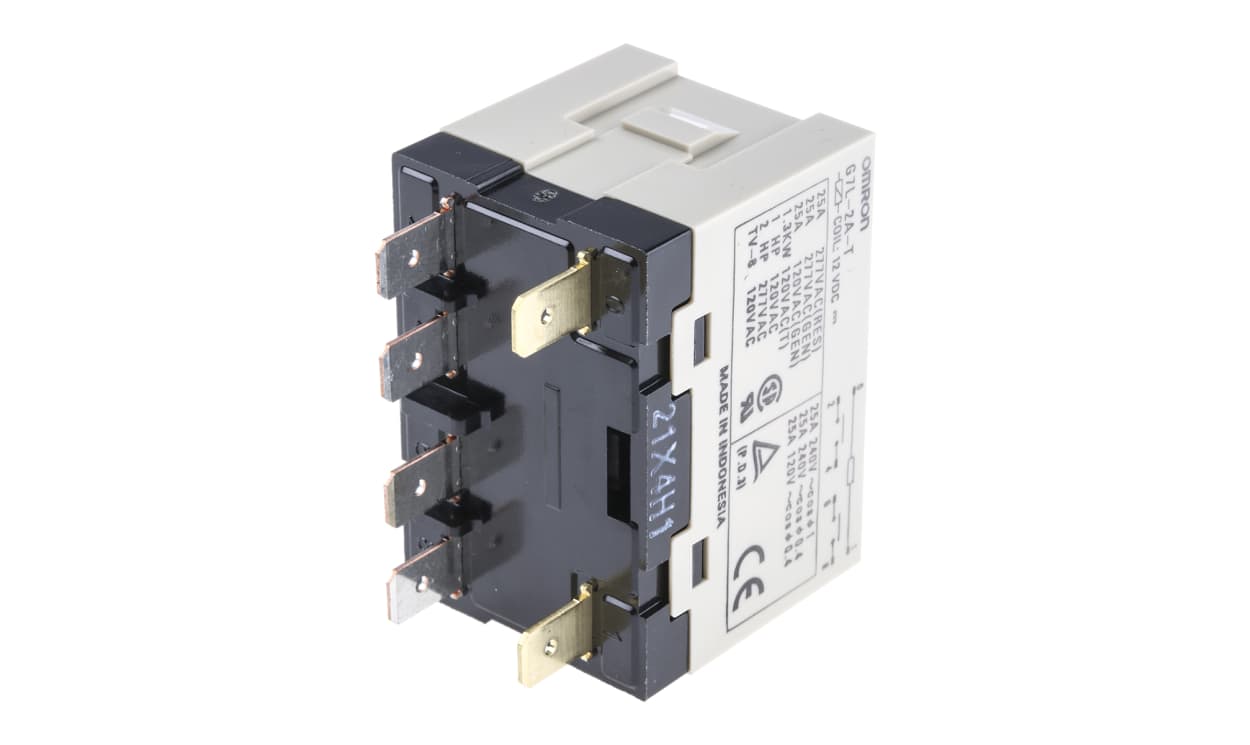

OMRON G7L-2A-T DC12 | Panel Mount Power Relay | 12 V DC Coil, DPST, 25 A
The OMRON G7L-2A-T DC12 is a power relay with a 12 V DC coil, DPST contacts and a 25 A switching current rating. Part of the G7L series, the G7L-2A-T DC12 is a non-latching relay specified with panel mounting and quick-connect terminals.
- Coil resistance: 75 Ω
- Maximum switching power: 5.5 kVA (AC)
- Operating temperature: −25 °C to +60 °C
- Dimensions: length 52.5 mm, depth 33.5 mm, height 53 mm
- Application category: power
- Detailed Description
- Specifications
- Downloads

Omron Non-Latching Relay
Features and Benefits
Coil resistance is 75ohm
Quick connect terminal type
Applications
Switching controllers for power tools or motors
Lighting controllers
Magnetron control in microwaves
Lamp controls, motor drivers and power supply switching in copy machines, facsimile machines and other office equipment
Certifications
CSA certified
| Brand | Omron |
| Series | G7L |
| Coil Voltage | 12V dc |
| Contact Configuration | DPST |
| Mounting Type | Panel Mount |
| Switching Current | 25A |
| Number of Poles | 2 |
| Latching | No |
| Coil Resistance | 75Ω |
| Terminal Type | Quick Connect |
| Length | 52.5 mm (2.07 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Height | 53 mm (2.09 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Depth | 33.5 mm (1.32 in) |
| Maximum Switching Power AC | 5.5 kVA |
| Application | Power |
