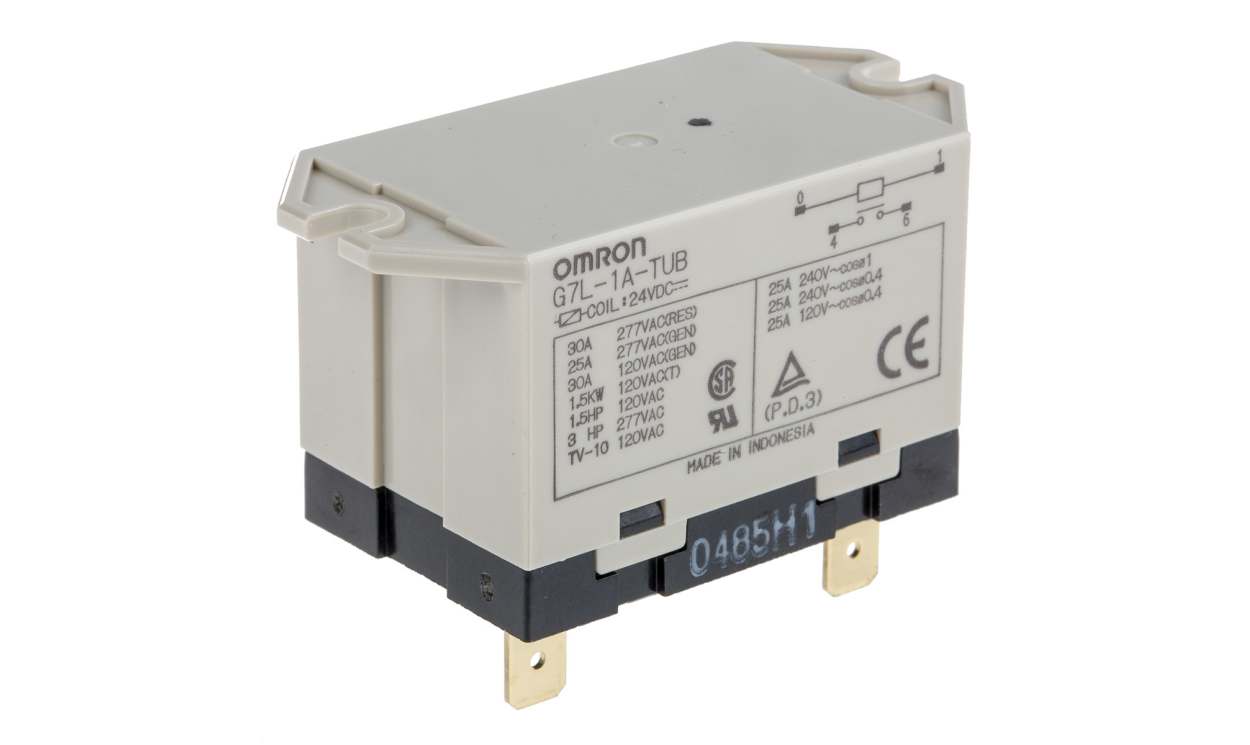

Name: Omron G7L-1A-TUB 24DC, Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST
Brand: OMRON
SKU: G7L-1A-TUB 24DC
Availability: OutOfStock

Omron G7L-1A-TUB 24DC, Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7L-1A-TUB 24DC, Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

Part Number : G7L-1A-TUB 24DC

Availability: Sold out

Detailed Description
Specifications

PCB Mounting & Plug-in - Power Relays - G7L Series

Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPST
Mounting Type	Flange Mount
Switching Current	30A
Number of Poles	1
Latching	No
Series	G7L
Terminal Type	Quick Connect
Maximum Switching Voltage AC	250V ac
Length	68.5mm
Coil Resistance	303Ω
Coil Power	1.9W
Isolation Coil To Contact	4kV ac
Depth	33.5mm
Height	47mm
Maximum Operating Temperature	+60°C
Life	1000000 (Electrical) cycles, 1000000 (Mechanical) cycles
Minimum Operating Temperature	-25°C
Maximum Switching Power AC	6.6 kVA
