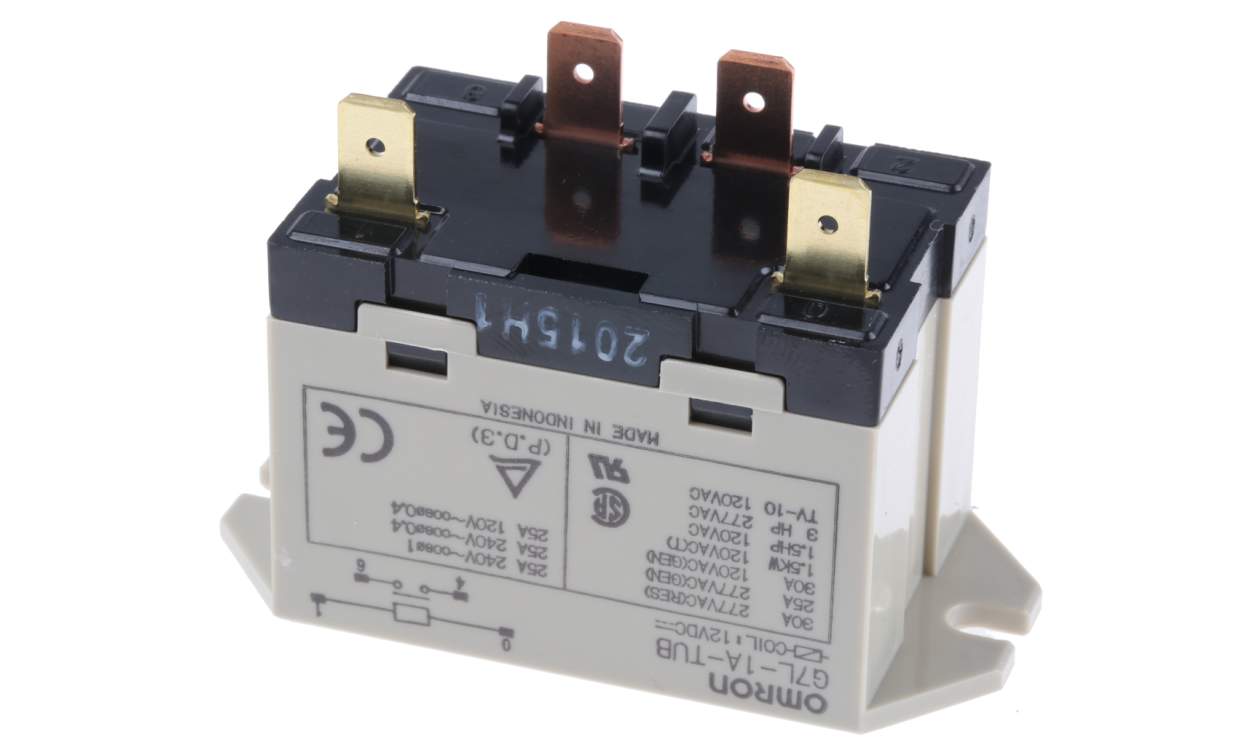

OMRON G7L-1A-TUB 12DC | Flange Mount Power Relay | 12 V DC Coil, SPST, 30 A
The OMRON G7L-1A-TUB 12DC is a power relay with a 12 V DC coil, SPST contacts and a 30 A switching current rating. Part of the G7L series, the G7L-1A-TUB 12DC is a non-latching relay specified with flange mounting and quick-connect terminals.
- Coil resistance 75 Ω, coil power 1.9 W
- Maximum switching voltage: 250 V AC
- Maximum switching power: 6.6 kVA (AC)
- Coil-to-contact isolation: 4 kV AC
- Operating temperature: −25 °C to +60 °C
- Rated life: 1,000,000 cycles (electrical), 1,000,000 cycles (mechanical)
- Detailed Description
- Specifications
- Downloads
PCB Mounting & Plug-in - Power Relays - G7L Series
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)
Approvals
| Brand | Omron |
| Series | G7L |
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | Flange Mount |
| Switching Current | 30A |
| Number of Poles | 1 |
| Latching | No |
| Coil Resistance | 75Ω |
| Terminal Type | Quick Connect |
| Length | 68.5 mm (2.70 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Coil Power | 1.9W |
| Height | 47 mm (1.85 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Depth | 33.5 mm (1.32 in) |
| Maximum Switching Voltage AC | 250V ac |
| Isolation Coil To Contact | 4kV ac |
| Life | 1000000 (Electrical) cycles, 1000000 (Mechanical) cycles |
| Maximum Switching Power AC | 6.6 kVA |
