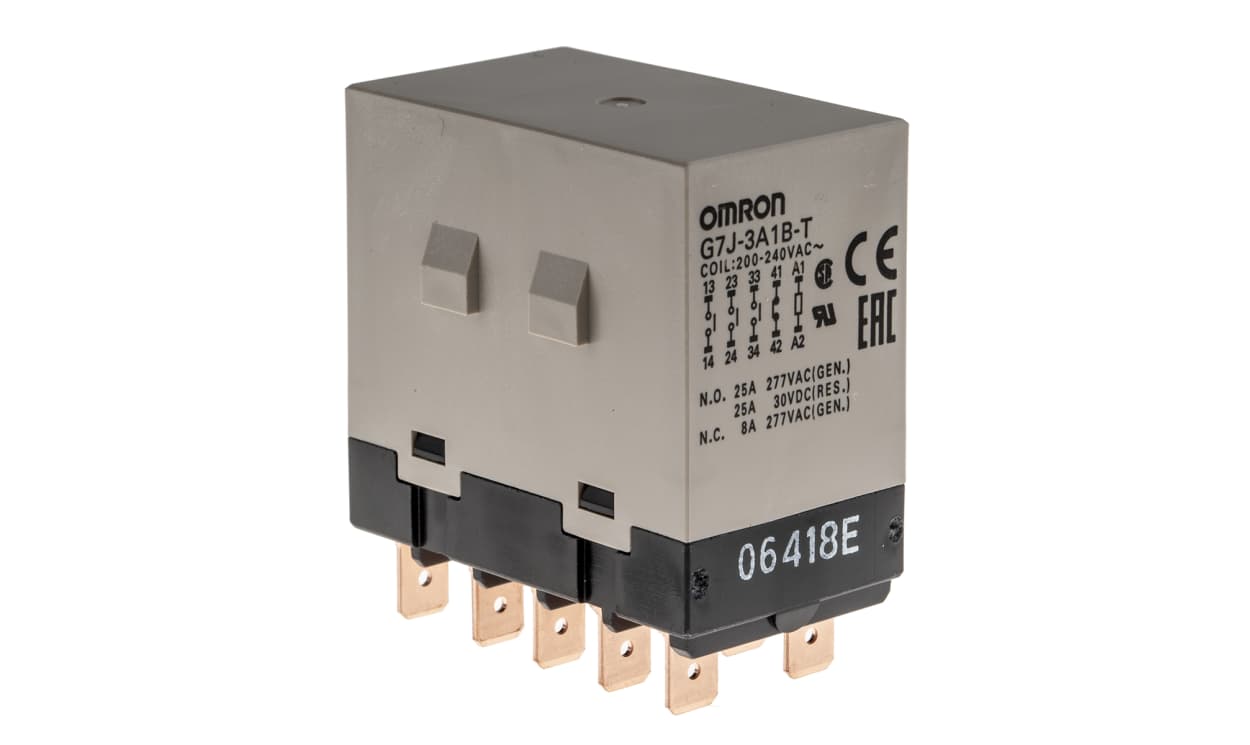

OMRON G7J-3A1B-T 200/240VAC | Plug-In Power Relay | 200 V AC Coil, 3PDT

Name: OMRON G7J-3A1B-T 200/240VAC | Plug-In Power Relay | 200 V AC Coil, 3PDT
Brand: OMRON
SKU: G7J-3A1B-T 200/240VAC
Availability: OutOfStock

Part Number : G7J-3A1B-T 200/240VAC

The OMRON G7J-3A1B-T 200/240VAC is a power relay with a 200 V AC coil and 3PDT contacts. As a non-latching G7J-series relay, the G7J-3A1B-T 200/240VAC uses plug-in mounting and quick-connect terminals.

Operating temperature: −25 °C to +60 °C
Contact material: silver alloy (Ag alloy)
Dimensions: length 51.5 mm, depth 34.5 mm, height 54.8 mm
Approvals: CE

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Series G7J Power Relay, 200V AC Coil Voltage, 3PDT Contact Configuration - G7J-3A1B-T AC200/240

This power relay is a versatile component designed for high-performance applications in the automation and electrical sectors. The relay operates at a coil voltage of 200V AC and features a compact design with dimensions of 51.5 x 34.5 x 54.8 mm. Its plug-in mounting type facilitates straightforward installation, making it an ideal choice for various industrial settings.

Features & Benefits

• Reliable operation in a wide temperature range of -25°C to +60°C
• Quick connect terminal type for efficient wiring connections
• Low coil resistance of 100mΩ ensures energy efficiency
• Non-latching design simplifies control circuit configurations

Applications

• Suitable for automation tasks requiring reliable control
• Utilised in machinery and control panels for industrial systems
• Ideal for equipment that demands precise switching capabilities
• Effective in environments with high operational temperatures

What are the advantages of the coil voltage for this relay?

Operating at 200V AC allows compatibility with many industrial systems, making it suitable for various applications in the electrical domain. This voltage level minimises power losses and enhances efficiency in control circuits.

How does the contact material affect performance?

Using Ag alloy for the contacts ensures excellent conductivity and resistance to wear. This prolongs the relay's lifespan and improves its reliability in demanding conditions.

What is the significance of the 3PDT configuration?

The 3PDT configuration allows for multiple circuits to be controlled simultaneously, offering flexibility in system design and enabling more complex control operations without requiring additional components.

How can this relay be integrated into existing installations?

The plug-in mounting type and quick connect terminals enable straightforward integration into existing systems, making upgrades or replacements quick and hassle-free. This ensures minimal downtime during maintenance.

Brand	Omron
Coil Voltage	200V ac
Contact Configuration	3PDT
Mounting Type	Plug In
Latching	No
Series	G7J
Terminal Type	Quick Connect
Length	51.5mm
Coil Resistance	100 m?
Contact Material	Ag Alloy
Standards Met	CE
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
Depth	34.5mm
Height	54.8mm
Dimensions	51.5 x 34.5 x 54.8mm
