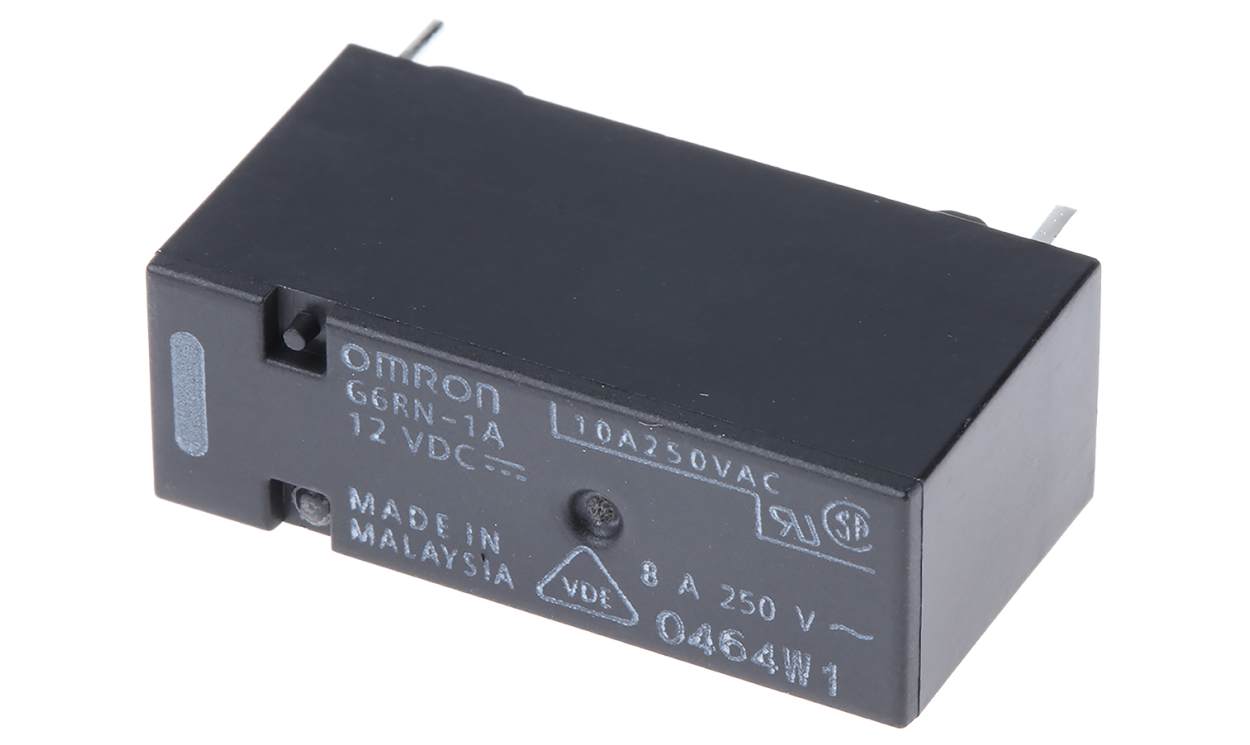

OMRON G6RN-1A DC12 | PCB Mount Power Relay | 12 V DC Coil, 8 A, SPST
The OMRON G6RN-1A DC12 is a PCB-mount non-latching power relay with a 12 V DC coil and SPST contacts rated at 8 A. Coil resistance is listed as 655 Ω, and maximum switching power is 2 kVA AC / 150 W DC.
- SPST contact configuration, 1 pole
- Contact material: gold plated
- Operating temperature: -40 to +85 °C
- Dimensions (L x D x H): 28.8 x 10.5 x 15.3 mm
- Terminal type: through hole
- Listed application: power
- Detailed Description
- Specifications
- Downloads
G6RN Series
8mm creepage and clearance
Minimum contact load: 100mA @ 5mVdc
Switching Voltage: 250 Vac
Contact Resistance: 50mΩ
Mechanical Life: 10 x 106
Contact Material: AgNi
Operating Temperature: -40 → +85°C
H15, W28.5, D10mm
Standards
Approvals

Approvals
| Brand | Omron |
| Series | G6RN |
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Number of Poles | 1 |
| Latching | No |
| Coil Resistance | 655Ω |
| Terminal Type | Through Hole |
| Length | 28.8 mm (1.13 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Height | 15.3 mm (0.602 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Depth | 10.5 mm (0.413 in) |
| Contact Material | Gold Plated |
| Maximum Switching Power AC | 2 kVA |
| Application | Power |
| Maximum Switching Power DC | 150 W |
