Omron G6K-2G-Y DC12, Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT

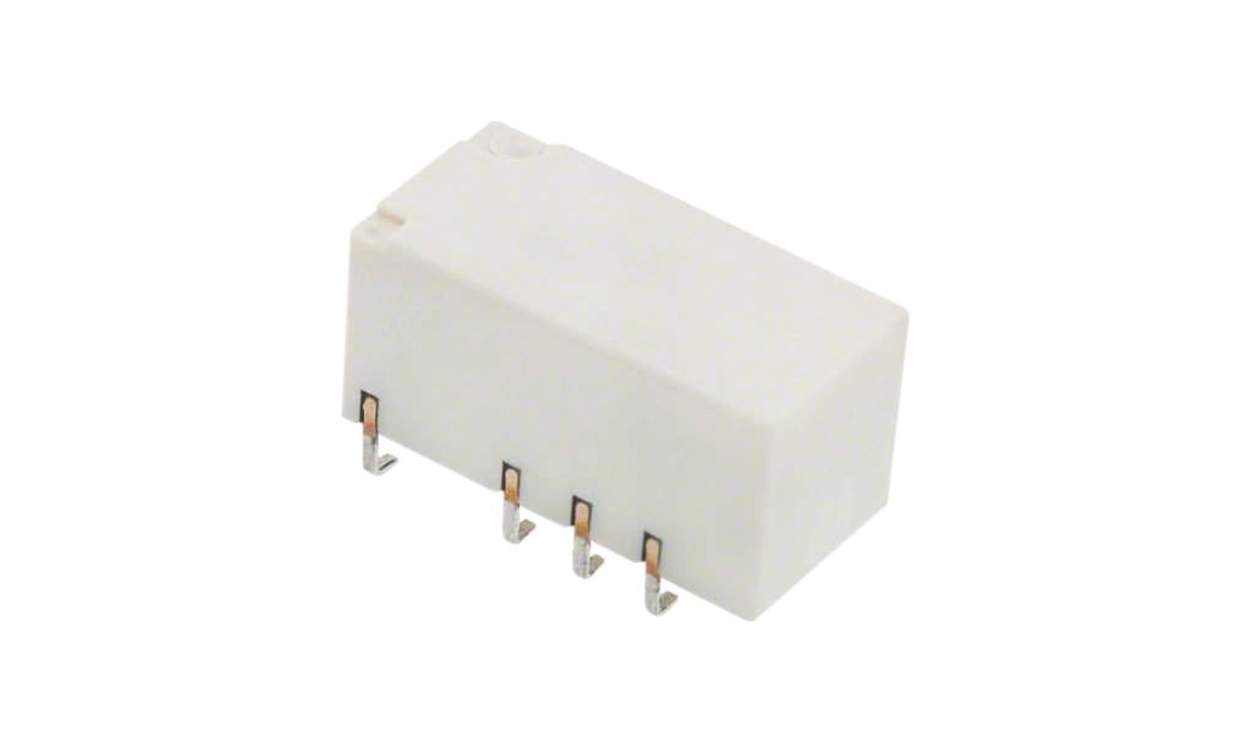

Name: Omron G6K-2G-Y DC12, Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT
Brand: General Tech Services LLC
SKU: G6K-2G-Y DC12
Availability: OutOfStock

Part Number : G6K-2G-Y DC12

Availability: Sold out

Detailed Description
Specifications

The Omron G6K series surface mounting relay which has 2 poles. It is light weight of 0.7 g which contributes to higher speed mounting. It incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS, thus ensuring excellent soldering.

100 mO maximum contact resistance
Ambient operating temperature from -40 to 70°C
Bifurcated crossbar contact type
Single-side stable model

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Number of Coils	Single
Series	G6K
Number of Poles	2
Switching Current	1A
Coil Power	1W
Coil Resistance	1.315 kΩ
Isolation Coil To Contact	1.5kV ac
