Omron G6K-2F-Y-TR DC3, Surface Mount Signal Relay, 3V dc Coil, 1A Switching Current, DPDT

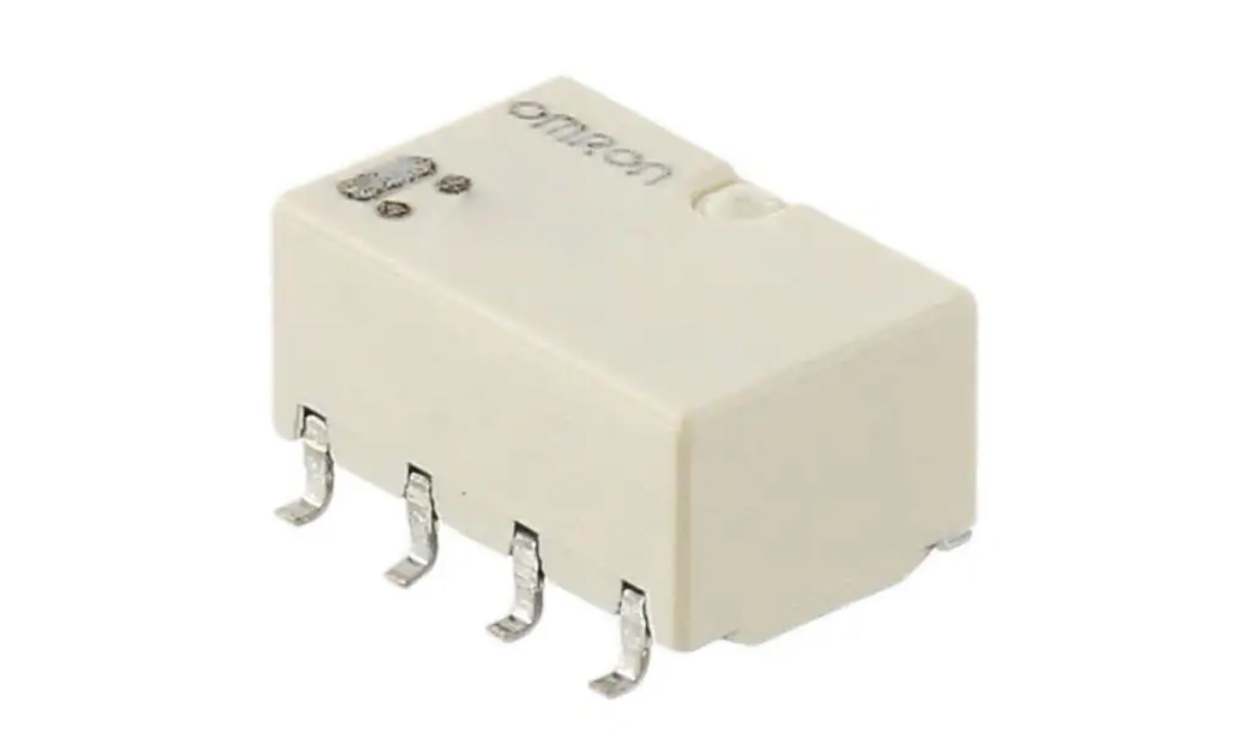

Name: Omron G6K-2F-Y-TR DC3, Surface Mount Signal Relay, 3V dc Coil, 1A Switching Current, DPDT
Brand: General Tech Services LLC
SKU: G6K-2F-Y-TR DC3
Availability: OutOfStock

Part Number : G6K-2F-Y-TR DC3

Availability: Sold out

Detailed Description
Specifications

The Omron G6K surface mounting relay with 2-pole and smallest mounting area. The G6K surface mounting relay has 3Vdc coil voltage with Outside-L surface mounting terminals. The G6K surface mounting relay has applications such as telecommunication equipment, office automation machines, test and measurement equipment, building automation equipment, security equipment, industrial equipment, amusement equipment and home appliances.

Light weight of 0.7 g contributes to higher speed mounting
Single-side stable model
Fully sealed

Brand	Omron
Coil Voltage	3V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V ac
Maximum Switching Voltage DC	60V dc
Maximum Switching Power DC	90 W
Series	HFD2
Latching	No
Length	10mm
Depth	6.5mm
Height	5.2mm
Dimensions	10 x 6.5 x 5.2mm
Terminal Type	Surface Mount
Number of Poles	2
Switching Current	1A
Coil Resistance	91Ω
Operating Temperature Range	-40 → +70°C
Contact Material	Silver
