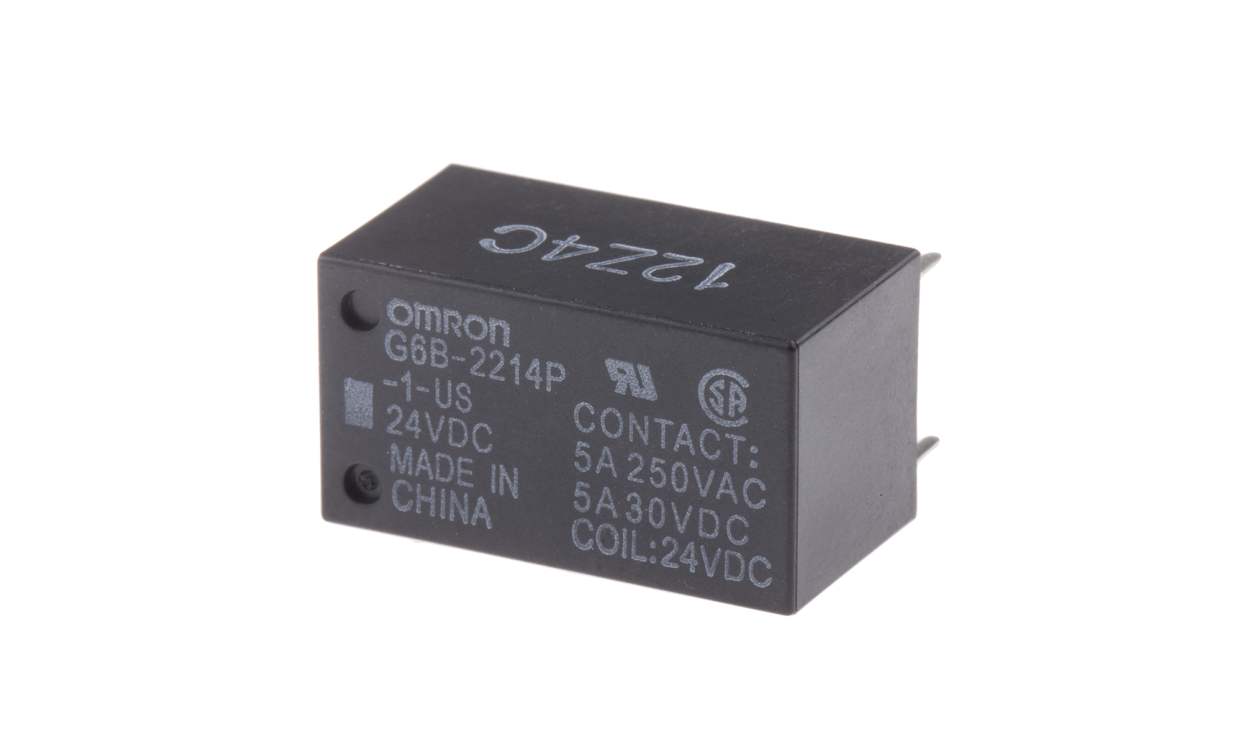

Omron G6B-2214P-1-US DC24, PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, DPST

Part Number : G6B-2214P-1-US DC24

Availability: Sold out

Detailed Description
Specifications

Omron PCB Power Relays - G6B Series

The Omron G6B series PCB power relay is a subminiature, low power consumption device that features a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. Omron G6B power relays are high capacity, high dialectric strength, fully sealed devices with an impulse withstand voltage of 6kV. The G6B series would be ideal for output applications of control equipment.

Subminiature: 20x10x10mm
Low 200 mW power consumption

Approvals

UL recognised; CSA certified

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPST
Mounting Type	PCB Mount
Switching Current	5A
Number of Poles	2
Series	G6B
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	20mm
Coil Resistance	2880Ω
Coil Power	200mW
Contact Material	Silver Alloy
Minimum Operating Temperature	-25°C
Height	11mm
Isolation Coil To Contact	3kV ac
Depth	11mm
Life	100000 Operations
