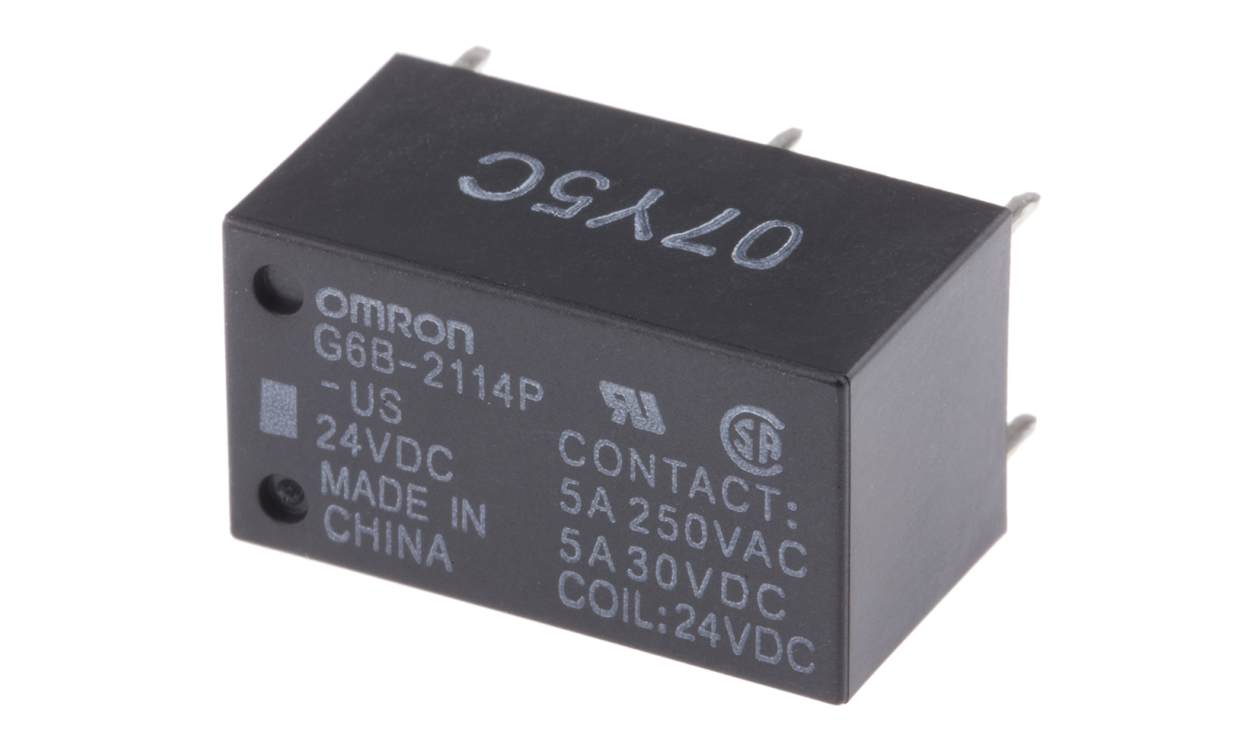

OMRON G6B-2114P-US DC24 | PCB Mount Power Relay | 24 V DC Coil, 5 A, SPST-NO + SPST-NC
Built around a 24 V DC coil, the OMRON G6B-2114P-US DC24 PCB-mount non-latching power relay switches up to 5 A through SPST-NO + SPST-NC contacts. Here, coil resistance is listed as 1,920 Ω, and maximum switching power is 1.25 kVA AC / 150 W DC.
- SPST-NO + SPST-NC contact configuration
- Contact material: silver
- Operating temperature: -25 to +70 °C
- Dimensions (L x D x H): 20 x 11 x 11 mm
- Terminal type: through hole
- Listed application: power
- Detailed Description
- Specifications
- Downloads
Terminal Modules G6B Series
Replacement relays available
Terminal relay complete with vented cover
Switching voltage 250 Vac; 125 Vdc
Isolation coil to contact 2000V
Operating temperature range -25 to +55°C
Approvals
Approvals
| Brand | Omron |
| Series | G6B |
| Coil Voltage | 24V dc |
| Contact Configuration | SPST-NC, SPST-NO |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 2 |
| Latching | No |
| Coil Resistance | 1920Ω |
| Terminal Type | Through Hole |
| Length | 20 mm (0.787 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Height | 11 mm (0.433 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Depth | 11 mm (0.433 in) |
| Contact Material | Silver |
| Maximum Switching Power AC | 1.25 kVA |
| Application | Power |
| Maximum Switching Power DC | 150 W |
