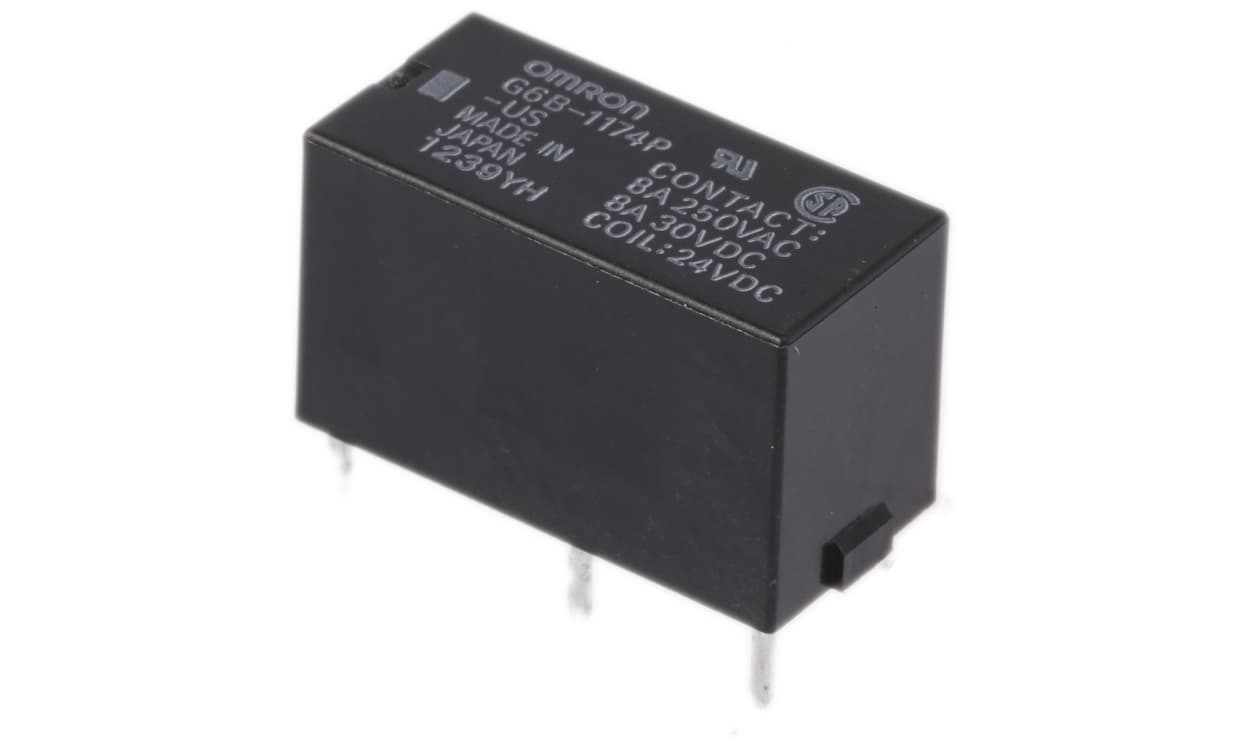

Omron G6B-1174P-US DC24, PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, SPST
Part Number : G6B-1174P-US DC24
For pricing, please contact our experts.
Omron Power Relay
The Omron G6B series PCB mount non-latching power relay has a contact configuration of SPNO. It is actuated with 24VDC coil voltage and 8A switching current. This relay has a unique moving loop armature that aids in the reduction of relay size, magnetic interference and contact bounce time. It has a high capacity, high dielectric strength, fully sealed devices with an impulse withstand voltage of 6kV. This relay is ideal for output applications of the control panel.
Features and Benefits
Low 200mW power consumption
Coil power is 200mW
Coil resistance is 2.88Kohm
Through hole terminal type
Coil power is 200mW
Coil resistance is 2.88Kohm
Through hole terminal type
Certifications
UL approved
CSA certified
CSA certified
