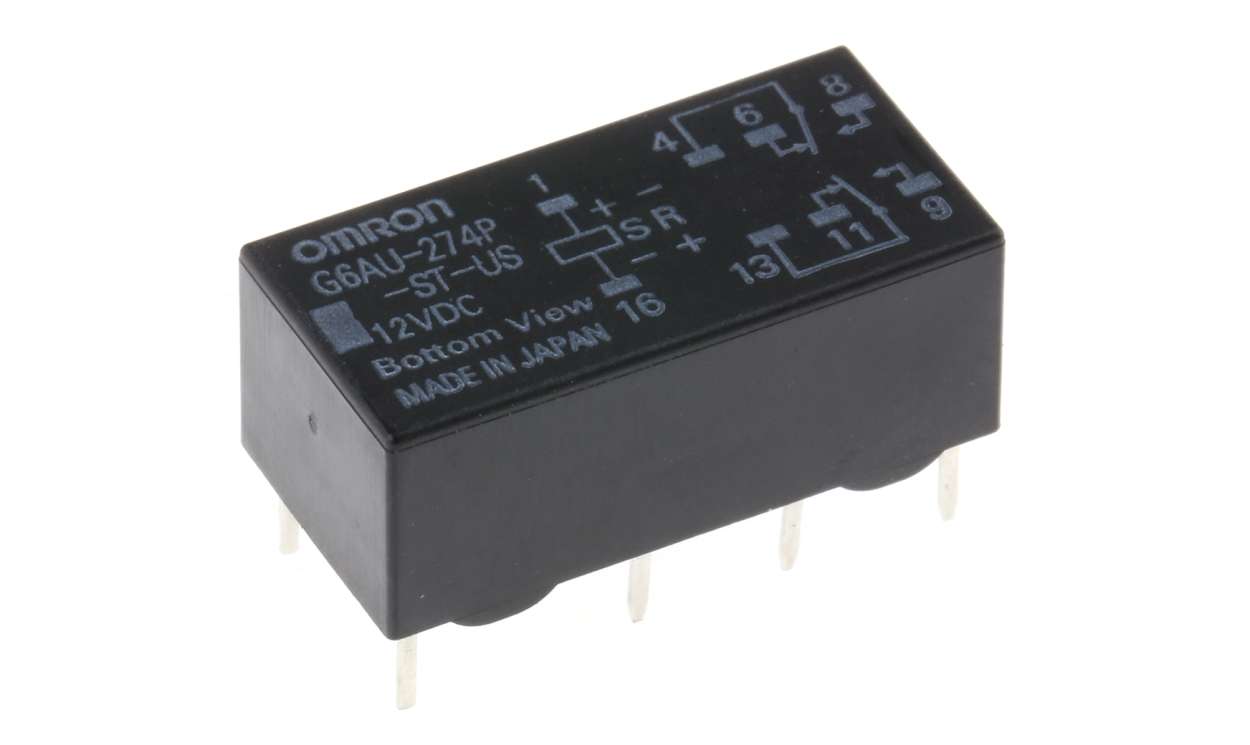

OMRON G6AU-274P-ST-US 12DC | Latching Signal Relay | 12 V DC Coil, DPDT, 2 A, PCB Mount
With a 12 V DC coil, the OMRON G6AU-274P-ST-US 12DC is a DPDT latching signal relay for PCB mounting that switches up to 2 A. The G6AU-274P-ST-US 12DC is listed with a maximum switching voltage of 250 V AC / 220 V DC and switching power up to 60 W DC / 125 VA AC.
- Dimensions: 20.2 x 8.4 x 10.1 mm
- Terminals: through hole
- Max switching current: 2 A AC / 2 A DC
- Operating temperature: -40 to +70 °C
- Latching: yes
- PCB stand-offs
- Detailed Description
- Specifications
G6A Series DPCO Latching
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Approvals
| Brand | Omron |
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Length | 20.2 mm (0.795 in) |
| Latching | Yes |
| Depth | 10.1 mm (0.398 in) |
| Height | 8.4 mm (0.331 in) |
| Dimensions | 20.2 x 8.4 x 10.1 mm (0.795×0.331×0.398 in) |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Maximum Switching Current AC | 2 A |
| Features | With PCB Stand-offs |
| Maximum Switching Power AC | 125VA |
