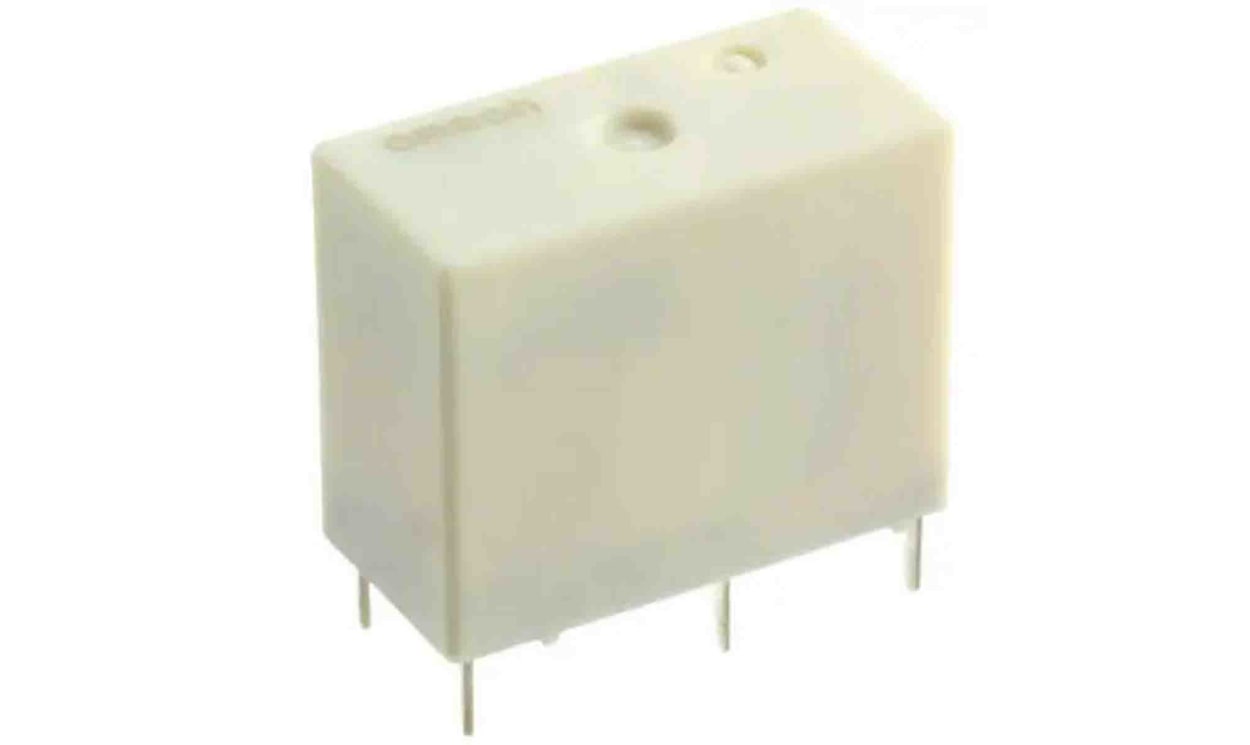

OMRON G5Q-1A-EL-HA-VH DC24 (TY) | Power Relay | 24 V DC Coil, 10 A, SPST

Name: OMRON G5Q-1A-EL-HA-VH DC24 (TY) | Power Relay | 24 V DC Coil, 10 A, SPST
Brand: OMRON
SKU: G5Q-1A-EL-HA-VH DC24 (TY)
Availability: OutOfStock

Part Number : G5Q-1A-EL-HA-VH DC24 (TY)

OMRON G5Q-1A-EL-HA-VH DC24 (TY) pairs a 24 V DC coil with SPST contacts carrying 10 A in a non-latching power relay format. On this model, the coil draws 400 mW and measures 1,440 Ω, and coil-to-contact isolation is 4 kV.

SPST contact configuration, 1 pole
OMRON G5Q series
Coil voltage: 24 V DC

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron Electronic Components PCB Power Relay with High inrush capacity performance ideal for motor switching of 3 A with high inrush 30 A. It can be used for Home appliances, Building automation, Lighting control, Output of control system, FA Input or

1,000 MO minimum insulation resistance
5% to 85% ambient operating humidity
-40°C to 105°C ambient operating temperature

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPST
Switching Current	10A
Number of Poles	1
Series	G5Q
Latching	No
Coil Resistance	1440Ω
Coil Power	400mW
Isolation Coil To Contact	4kV
