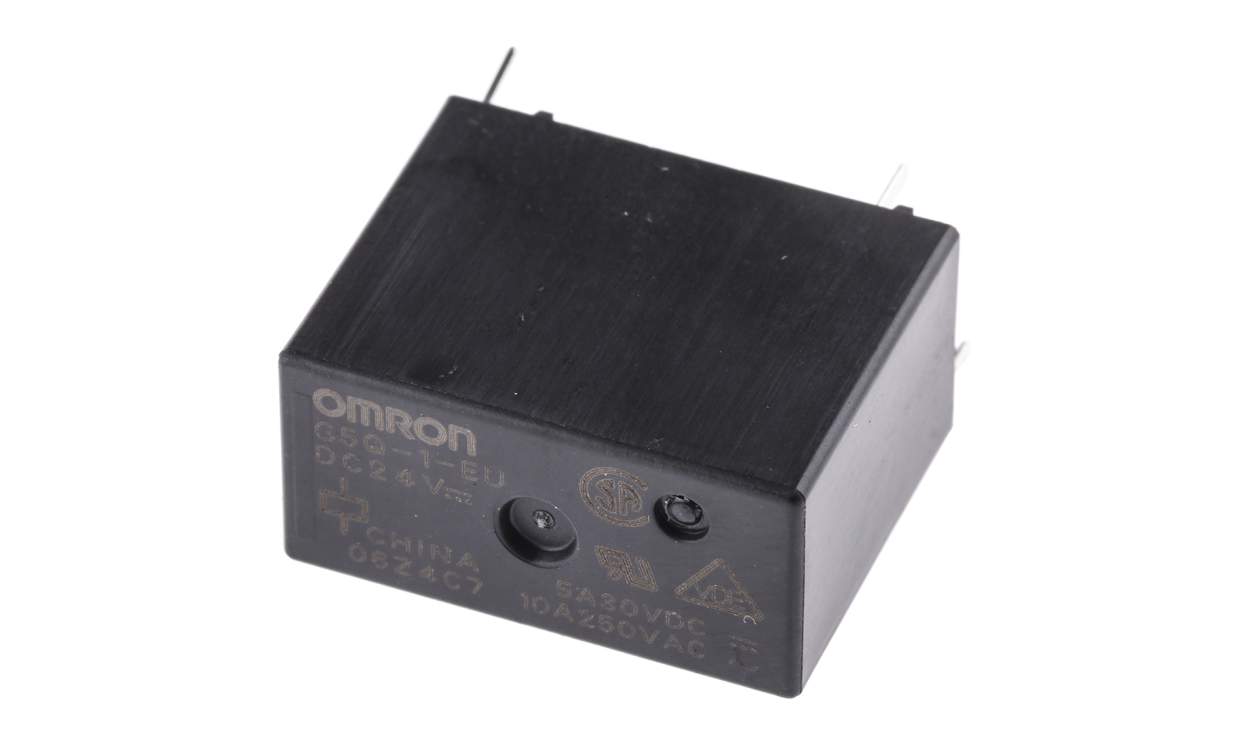

OMRON G5Q-1-EU DC24 (TY) | PCB Mount Power Relay | 24 V DC Coil, 10 A, SPDT
With its 24 V DC coil, OMRON G5Q-1-EU DC24 (TY) is an SPDT PCB-mount non-latching power relay with a 10 A switching current rating. For this variant, coil resistance is 1,440 Ω with 400 mW coil power, and coil-to-contact isolation is 4 kV AC.
- SPDT contact configuration, 1 pole
- Max switching power: 150 W DC
- Contact material: silver alloy
- Operating temperature: -40 to +85 °C
- Life: 10,000,000 electrical cycles
- Dimensions (L x D x H): 20.3 x 10.3 x 16.2 mm
- Detailed Description
- Specifications
- Downloads
G5Q-EU Series (European Version)
Withstand impulse voltage of 8,000V between the coil and contacts
Low power consumption
UL class F coil insulation
Tracking resistance: CTI > 250
Ideal for HVAC applications
Approvals
| Brand | Omron |
| Series | G5Q |
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 10A |
| Number of Poles | 1 |
| Latching | No |
| Coil Resistance | 1440Ω |
| Terminal Type | Through Hole |
| Length | 20.3 mm (0.799 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Coil Power | 400mW |
| Height | 16.2 mm (0.638 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Depth | 10.3 mm (0.406 in) |
| Contact Material | Silver Alloy |
| Isolation Coil To Contact | 4kV ac |
| Life | 10000000 (Electrical) cycles |
| Maximum Switching Power DC | 150 W |
