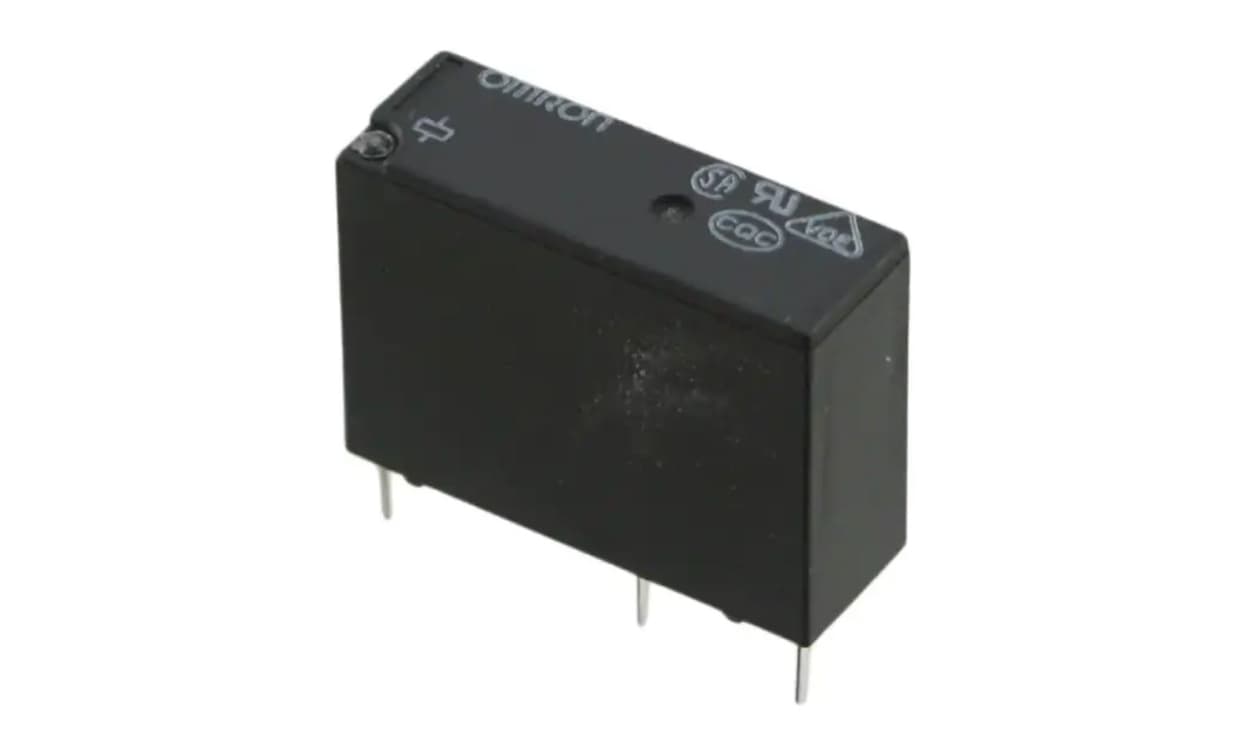

Name: Omron G5NB-1A4 DC12, PCB Mount Power Relay, 12V dc Coil, 3A Switching Current, SPST
Brand: OMRON
SKU: G5NB-1A4 DC12
Availability: OutOfStock

Omron G5NB-1A4 DC12, PCB Mount Power Relay, 12V dc Coil, 3A Switching Current, SPST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5NB-1A4 DC12, PCB Mount Power Relay, 12V dc Coil, 3A Switching Current, SPST

Part Number : G5NB-1A4 DC12

Availability: Sold out

Detailed Description
Specifications

G5NB Series

Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250

Approvals

UL, CSA, VDE

The Omron G5NB PCB Power Relay has 1-pole 3A Switching Capability and 10 kV Impulse Withstand Voltage. The G5NB PCB Power Relay has application such as Water heaters, Refrigerators, Air conditioners, Home appliances and Small electric appliances.

Highly efficient magnetic circuit for high sensitivity (200 mW)
PCB terminals

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	3A
Number of Poles	1
Series	G5NB
Latching	No
Coil Resistance	720Ω
Coil Power	200mW
Isolation Coil To Contact	4kV ac
