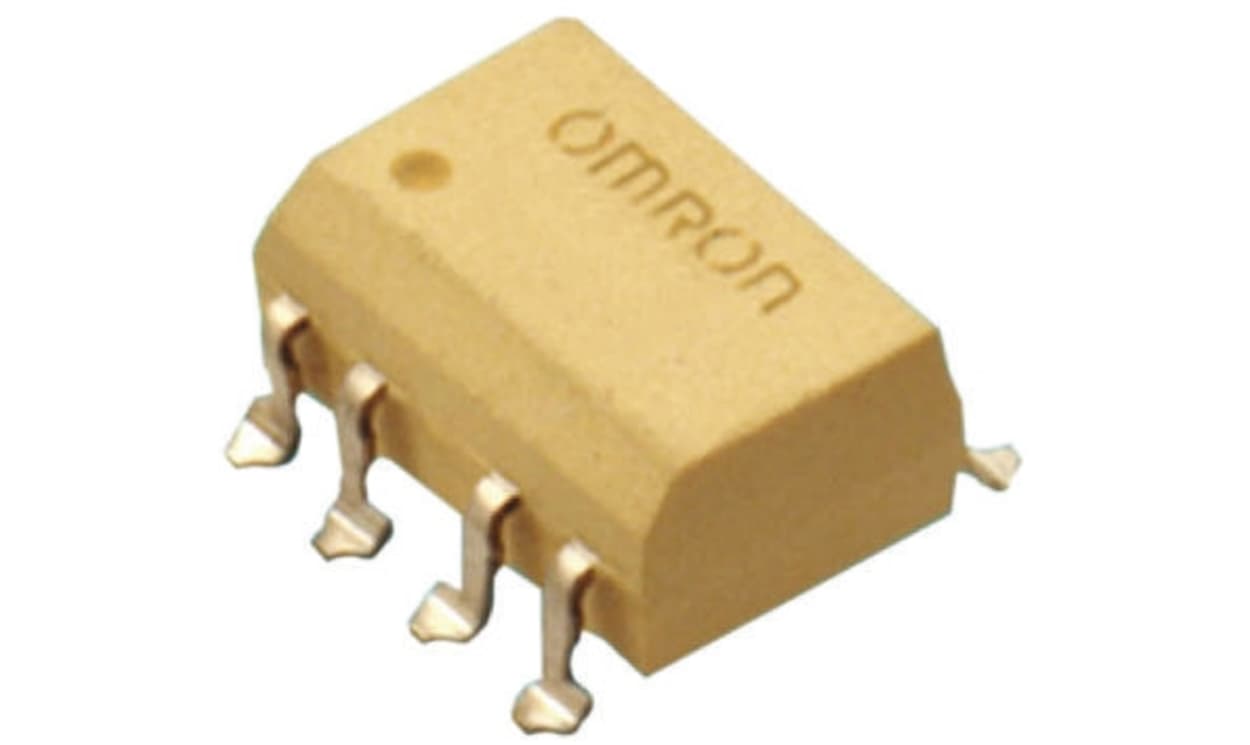

Name: Omron G3VM-62F1, G3VM Series Solid State Relay, 0.5 A Load, Surface Mount, 60 V Load, 1.3 V Control
Brand: OMRON
SKU: G3VM-62F1
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3VM-62F1, G3VM Series Solid State Relay, 0.5 A Load, Surface Mount, 60 V Load, 1.3 V Control

Part Number : G3VM-62F1

Availability: Sold out

Detailed Description
Specifications

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-62F1 MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-62F1 MOS FET relay offers a wealth of benefits required from maintenance free relays. DPST-NO (normally open), SMT surface mounted package relay with 8-pins. This series relay is designed for switching minute analogue signals.

Features and Benefits G3VM-62F1 SSR – Solid Sate Relay.

• MOS FET Solid state relay.
• Surface mounted relay terminals.
• DIP8 (dual in-line).
• SMT
• Contact form DPST-NO 2a (normally open).
• 8 Relay terminals.
• Load voltage 60 V.
• Load current 500 mA max.
• Maximum resistance with output ON 1 Ω.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 130 pF.
• SSR -Turn ON time 2 ms max.
• SSR -Turn OFF time 0.5 ms max.
• Dielectric strength between I/O 2500 Vrms.
• 2-Channel
• Switches minute analogue signals.
• Low ON resistance
• RoHS Compliant.

Additional Features G3VM-62F1 General Purpose SSR – Solid State Relay.

• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Operating temperature, ambient -20°C to +65°C, no icing or condensation.

Other Application Examples.

• Test and measurement equipment.
• Security equipment.

Brand	Omron
Maximum Load Current	0.5 A
Mounting Type	Surface Mount
Maximum Load Voltage	60 V
Maximum Control Voltage	1.3 V
Minimum Load Current	500 mA
Terminal Type	PCB Pin
Contact Configuration	SPST-NO
Output Device	MOSFET
Package Style	SMD8
Series	G3VM
Load Voltage Range	0 → 60V ac
Dimensions	9.66 x 6.4 x 3.65mm
Depth	6.4mm
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +85°C
Height	3.7mm
Length	9.7mm
