Omron G3VM-61FR1, G3VM Series Solid State Relay, 5 A Load, Surface Mount, 60 V Load

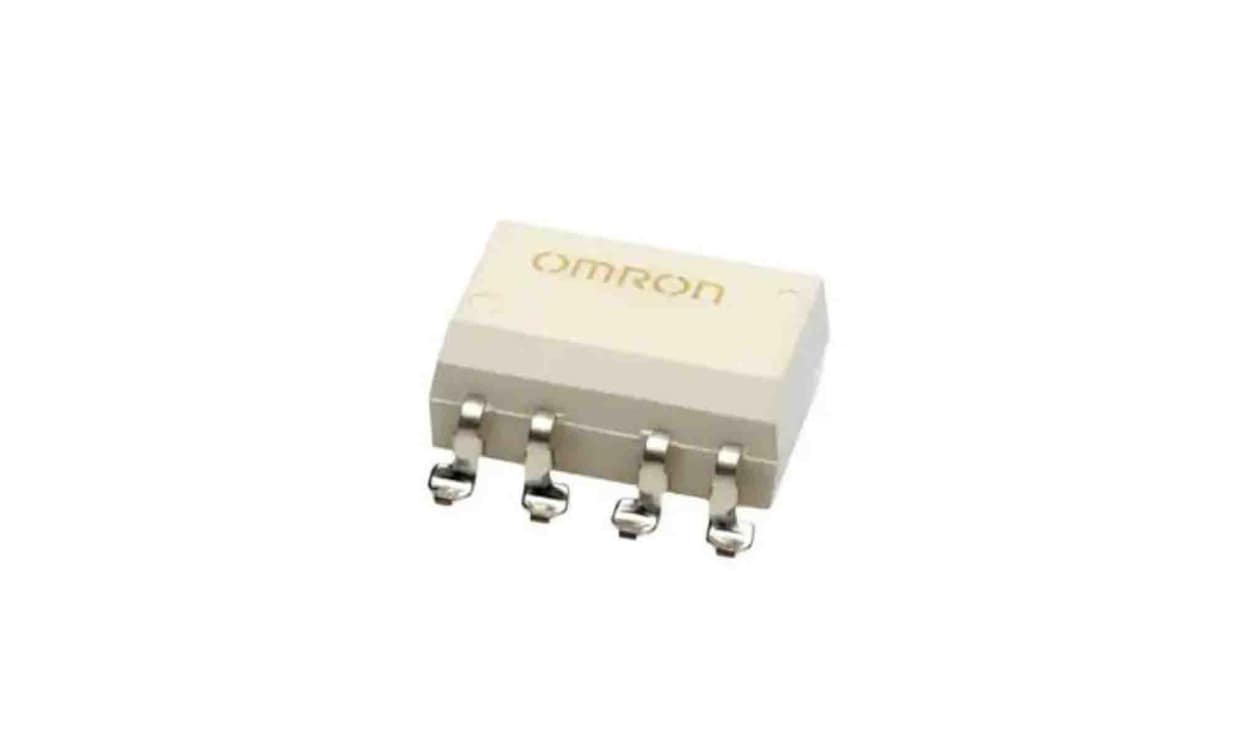

Name: Omron G3VM-61FR1, G3VM Series Solid State Relay, 5 A Load, Surface Mount, 60 V Load
Brand: OMRON
SKU: G3VM-61FR1
Availability: OutOfStock

Part Number : G3VM-61FR1

Availability: Sold out

Detailed Description
Specifications

The Omron Electronic Components MOS FET Relays in DIP 8 pin packages that achieve the low ON resistance. This relay can be used in Communication equipment, Test and measurement equipment, Security equipment, Industrial equipment and other applications.

-40 to +85°C ambient operating temperature
-0.3mA/°C LED forward current reduction rate
2500Vrms dielectric strength between Input and Output

Brand	Omron
Maximum Load Current	5 A
Mounting Type	Surface Mount
Maximum Load Voltage	60 V
Minimum Load Voltage	1 V
Range	G3VM
Contact Configuration	SPST
Output Device	MOSFET
Series	G3VM
Load Voltage Range	60V
Dimensions	9.66 x 6.4 x 3.65mm
Height	3.7mm
Capacitance	70pF
Minimum Operating Temperature	-40°C
Standards Met	UL
Maximum Operating Temperature	+85°C
Length	9.7mm
Operating Temperature Range	-40 → +85°C
Depth	6.4mm
