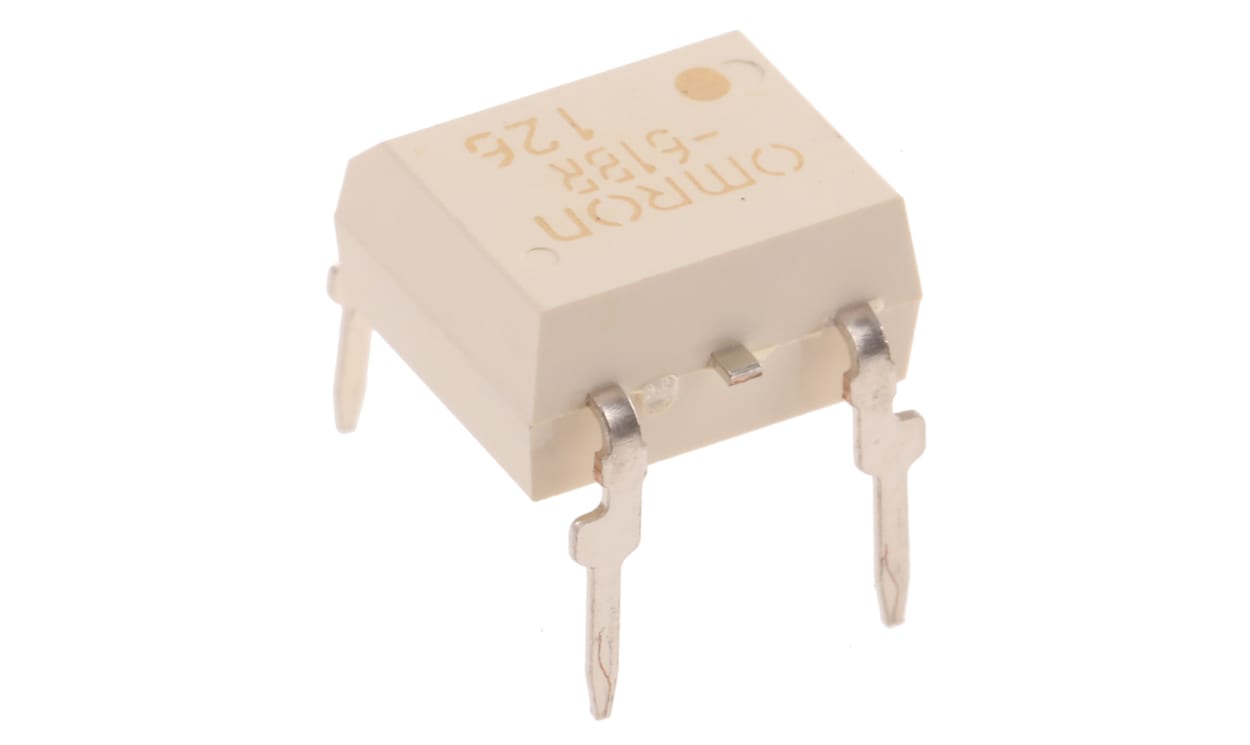

OMRON G3VM-61BR | MOSFET Solid State Relay | 2.5 A, 60 V AC, PCB
OMRON's G3VM-61BR is a G3VM series MOSFET relay that handles 2.5 A at a maximum load voltage of 60 V AC, with PCB mounting. It has a maximum control voltage of 1.5 V, has an SPST-NO contact form and comes in a PDIP package.
- Maximum load current: 2.5 A
- Maximum load voltage: 60 V AC
- Maximum control voltage: 1.5 V
- Contact configuration: SPST-NO
- Output device: MOSFET
- Dimensions: 7.12 x 6.4 x 3.65 mm
- Detailed Description
- Specifications
- Downloads
G3VM MOSFET SSR
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions
G3VM-61BR MOS FET General Purpose Series SSR – Solid State Relay.
Features and Benefits G3VM-61BR SSR – Solid Sate Relay.
• DIP6 (dual in-line).
• Contact form SPST-NO 1a (normally open).
• Through hole relay.
• 6 Relay terminals.
• Load voltage 60 V.
• Load current 3000 mA max.
• Maximum resistance with output ON 0.65 Ω.
• Current leakage when relay is open 10 nA max.
• Capacitance between terminals 400 pF.
• SSR -Turn ON time 1.5 ms max.
• SSR -Turn OFF time 0.4 ms max.
• Dielectric strength between I/O 2500 Vrms.
• Switches minute analogue signals.
• RoHS Compliant.
Additional Features G3VM-61BR General Purpose SSR – Solid State Relay.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Operating temperature, ambient -20°C to +60°C, no icing or condensation.
Other Application Examples.
• Security equipment.
| Brand | Omron |
| Series | G3VM |
| Maximum Load Voltage | 60 V ac |
| Maximum Load Current | 2.5 A |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 0 V ac |
| Contact Configuration | SPST-NO |
| Output Device | MOSFET |
| Minimum Load Current | 2.5 A |
| Switching Type | DC |
| Terminal Type | PCB Pin |
| Load Voltage Range | 0 → 60V ac |
| Dimensions | 7.12 x 6.4 x 3.65 mm (0.280×0.252×0.144 in) |
| Maximum Control Voltage | 1.5 V |
| Control Voltage Range | Maximum of 1.48 V |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Length | 7.1 mm (0.280 in) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Operating Temperature Range | -20 → +85 °C (-4 to 185 °F) |
| Package Style | PDIP |
