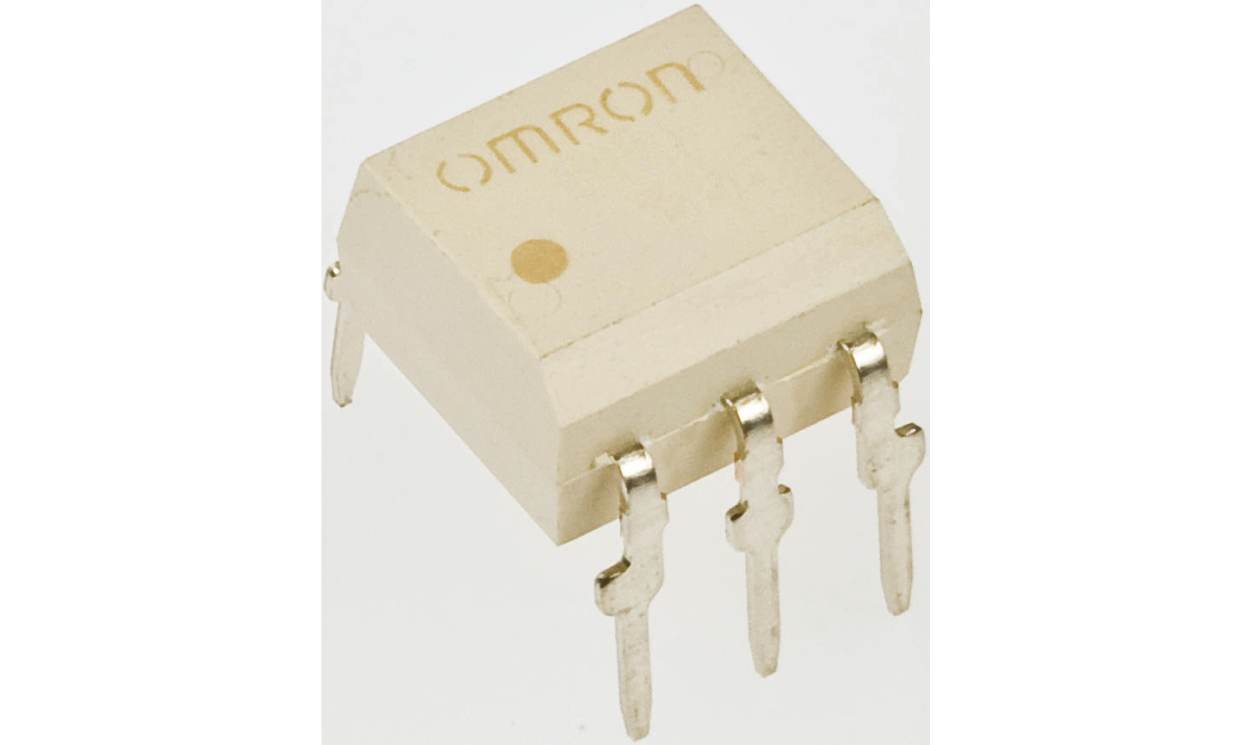

OMRON G3VM-351B | MOSFET Solid State Relay | 0.12 A, 350 V AC, PCB
OMRON's G3VM-351B is a G3VM series MOSFET relay that handles 0.12 A at a maximum load voltage of 350 V AC, with PCB mounting. This model has a maximum control voltage of 1.3 V, has an SPST contact form and comes in a PDIP package.
- Maximum load current: 0.12 A
- Maximum load voltage: 350 V AC
- Maximum control voltage: 1.3 V
- Contact configuration: SPST
- Output device: MOSFET
- Dimensions: 7.12 x 6.4 x 3.65 mm
- Detailed Description
- Specifications
G3VM MOSFET SSR
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions
G3VM-351B MOS FET General Purpose Series SSR – Solid State Relay.
Features and Benefits G3VM-351B General Purpose SSR – Solid Sate Relay.
• DIP6 package
• Contact form SPST-NO (1a) (normally open).
• Through hole.
• PCB Terminals.
• 6 Relay terminals.
• Load voltage 350 V ac.
• Load current 120 (240) mA max.
• Maximum resistance with output ON 35 Ohm.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 30 pF.
• Turn ON time 1 ms max.
• Turn OFF time 1 ms max.
• Dielectric strength between I/O 2500 Vrms.
• RoHS Compliant.
Additional Features G3VM-351B General Purpose SSR – Solid State Relay.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
| Brand | Omron |
| Series | G3VM |
| Maximum Load Voltage | 350 V ac |
| Maximum Load Current | 0.12 A |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 0 V ac |
| Contact Configuration | SPST |
| Output Device | MOSFET |
| Minimum Load Current | 120 mA |
| Switching Type | DC |
| Terminal Type | PCB Pin |
| Load Voltage Range | 0 → 350V ac |
| Dimensions | 7.12 x 6.4 x 3.65 mm (0.280×0.252×0.144 in) |
| Maximum Control Voltage | 1.3 V |
| Control Voltage Range | Maximum of 1.3 V |
| Depth | 6.4 mm (0.252 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Operating Temperature Range | -40 → +85 °C (-40 to 185 °F) |
| Package Style | PDIP |
| Off State Leakage Current | 50 mA |
