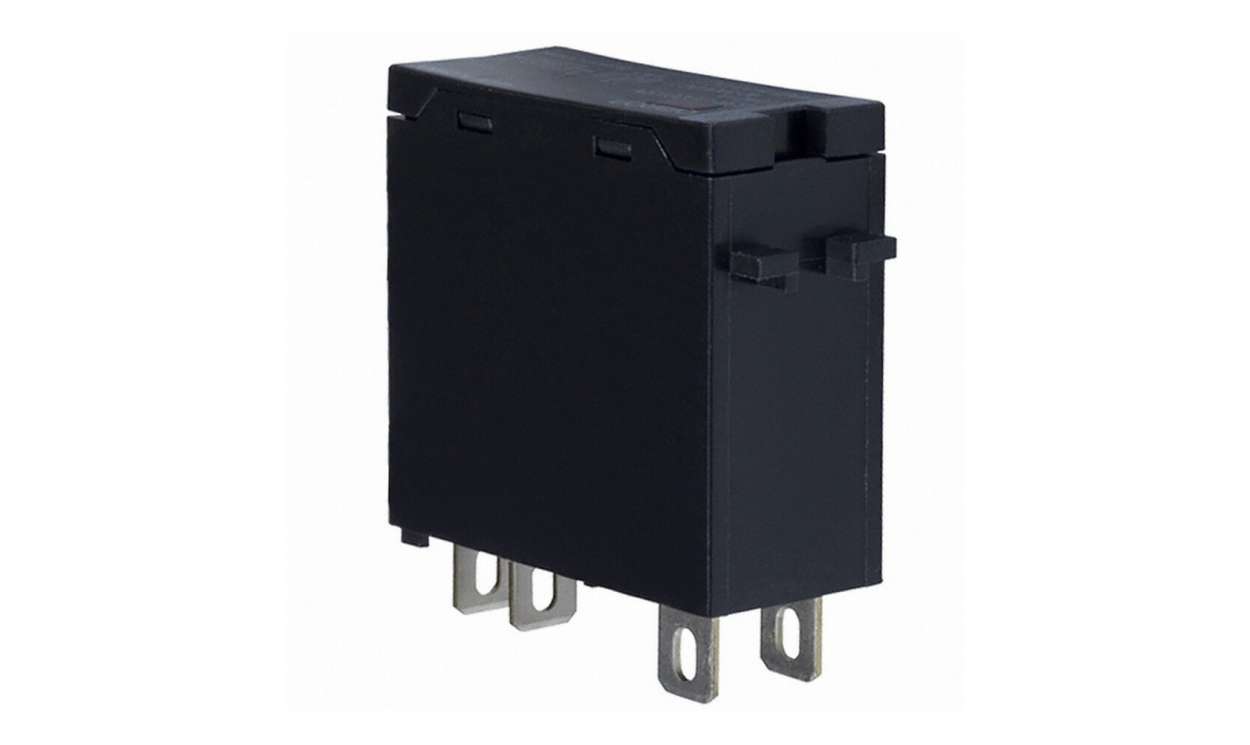

OMRON G3R-OA202SZN-UTU 5-24VDC | Solid State Relay | 2 A, 264 V AC, Plug-in
Part Number : G3R-OA202SZN-UTU 5-24VDC
Switching up to 2 A on loads of 75 to 264 V AC, the OMRON G3R-OA202SZN-UTU 5-24VDC is a G3R series solid state relay for plug-in mounting. The relay uses zero-cross switching and has a triac output.
- Maximum load current: 2 A
- Load voltage: 75 to 264 V AC
- Contact configuration: SPST-NO
- Output device: Triac
- Switching: zero cross
- Operating temperature: -30 to 80 °C
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
Omron G3R-OA202SZN-UTU 5-24VDC Series Solid State Relay, Phototriac Isolation Method, 5 to 24 V DC Input Rated Voltage - G3R-OA202SZN-UTU DC5-24
This G3R series solid-state relay supports a load voltage of up to 264V AC and an output current of 2A. It features a surge withstand current of 30A and a rapid operational time of 1ms, making it suitable for various applications.
Features & Benefits
• Zero crossing switching reduces electromagnetic interference
• Plug-in installation for easy integration
• Triac output ensures high voltage performance
• SPST-NO contact configuration for straightforward switching
• Plug-in installation for easy integration
• Triac output ensures high voltage performance
• SPST-NO contact configuration for straightforward switching
Applications
• Heating equipment requiring zero crossing
• Light control in commercial settings
• Motor control for efficient switching solutions
• Safety circuits needing quick response times
• Light control in commercial settings
• Motor control for efficient switching solutions
• Safety circuits needing quick response times
What is the operating temperature range?
It functions within -30 to 80°C.
Will it handle high voltage applications?
Yes, it supports up to 264V AC loads.
Is it easy to integrate into existing systems?
Yes, it features a plug-in design for simple installation.
Can it be used for low current applications?
Yes, it operates effectively with a minimum load of 50mA.
| Brand | Omron |
| Series | G3R-OA202SZN-UTU 5-24VDC |
| Maximum Load Voltage | 264 V ac |
| Maximum Load Current | 2 A |
| Mounting Type | Plug In |
| Minimum Load Voltage | 75 V ac |
| Contact Configuration | SPST-NO |
| Output Device | Triac |
| Minimum Load Current | 50 mA |
| Switching Type | Zero Crossing |
| Range | G3R |
| Terminal Type | Plug In |
| Maximum Operating Temperature | '+80 °C |
| Height | 29 mm (1.14 in) |
| Depth | 28 mm (1.10 in) |
| Minimum Operating Temperature | -30 °C (-22 °F) |
| Operating Temperature Range | -30 → +80 °C (-22 to 176 °F) |
| Number of Poles | 1 |
| Relay Type | Solid State Relay |
| Standards Met | CE, CSA |
