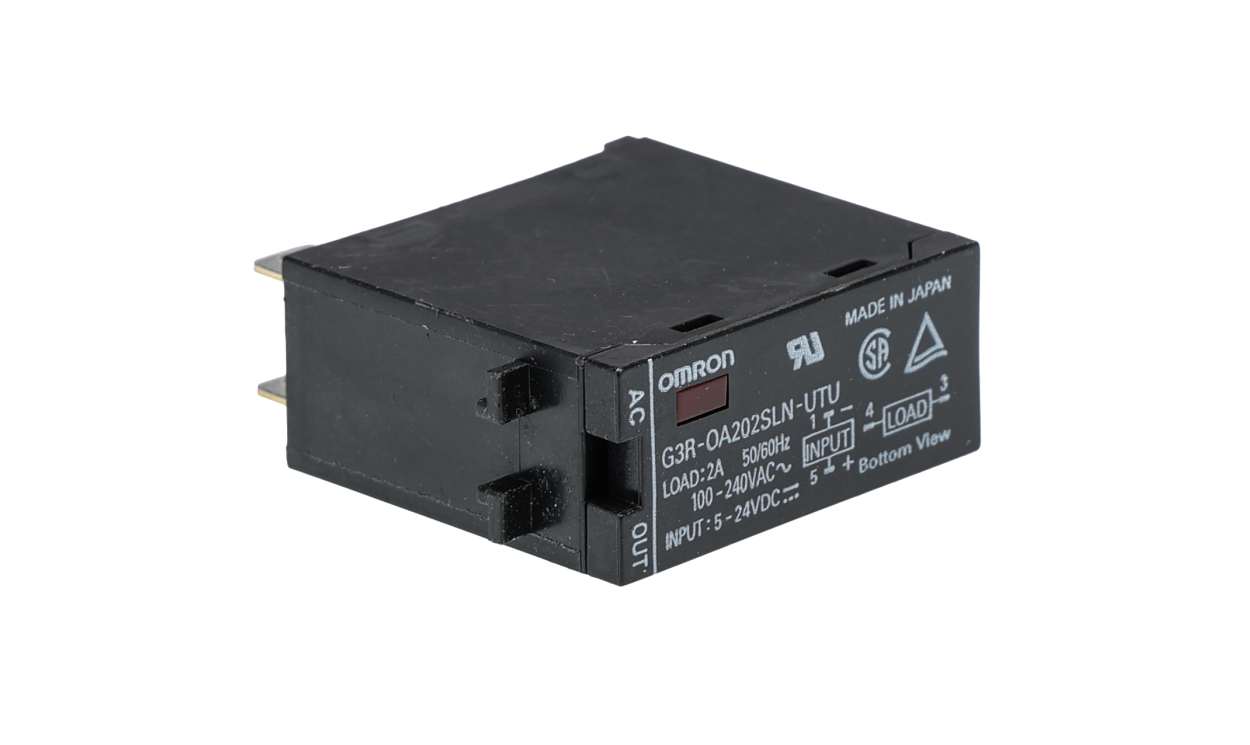

Name: Omron G3R-OA202SLN-UTU DC5-24, G3R Series Solid State Relay, 2 A Load, Plug-In Mount, 264 V Load
Brand: OMRON
SKU: G3R-OA202SLN-UTU DC5-24
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3R-OA202SLN-UTU DC5-24, G3R Series Solid State Relay, 2 A Load, Plug-In Mount, 264 V Load

Part Number : G3R-OA202SLN-UTU DC5-24

Availability: Sold out

Detailed Description
Specifications

Omron G3R Series Solid State Relay, 2A Load Current, 24V DC Control Voltage - G3R-OA202SLN-UTU DC5-24

This solid state relay offers robust performance in automation and electrical applications. Designed for plug-in mounting, it operates within a control voltage range of 5 to 24 V DC and supports a maximum load voltage of 264V. Its compact dimensions of 28mm in depth and 29mm in height ensure efficient integration into existing systems.

Features & Benefits

• Supports load currents up to 2A for robust usage
• Wide control voltage range enhancing compatibility
• Plug-in terminal type simplifying installation and maintenance
• Minimal off-state leakage current for improved efficiency
• Reliable SSR designed for industrial use prolonging system life

Applications

• Utilised for controlling motors and heaters in industrial settings
• Suitable for interfacing with control systems in automation
• Ideal for microload switching in high-efficiency
• Compatible with Omron G70A I/O terminals for streamlined integration

What is the significance of the control voltage range in operation?

The control voltage range of 5 to 24V DC allows for flexible integration into different control systems, providing adaptability for various automation needs. This versatility helps in applying the relay across multiple equipment types without requiring substantial modifications.

How does the relay manage high temperatures during operation?

With a maximum operating temperature of +80°C, the relay uses durable materials that withstand heat, ensuring consistent performance in demanding environments. This makes it suitable for applications where heat generation might be a concern, enhancing operational reliability.

What is the impact of minimal off-state leakage current?

A low off-state leakage current of 1.5mA reduces energy wastage, promoting energy efficiency and complying with regulatory standards. This feature ensures that devices connected to the relay remain energy-efficient, enhancing overall system performance.

Brand	Omron
Maximum Load Current	2 A
Mounting Type	Plug-In Mount
Maximum Load Voltage	264 V
Minimum Load Voltage	75 V
Range	G3R-I/O
Series	G3R
Depth	28mm
Height	29mm
