Name: Omron G3PJ-225B-PU DC12-24, G3PJ Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load, 24 V dc Control
Brand: OMRON
SKU: G3PJ-225B-PU DC12-24
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

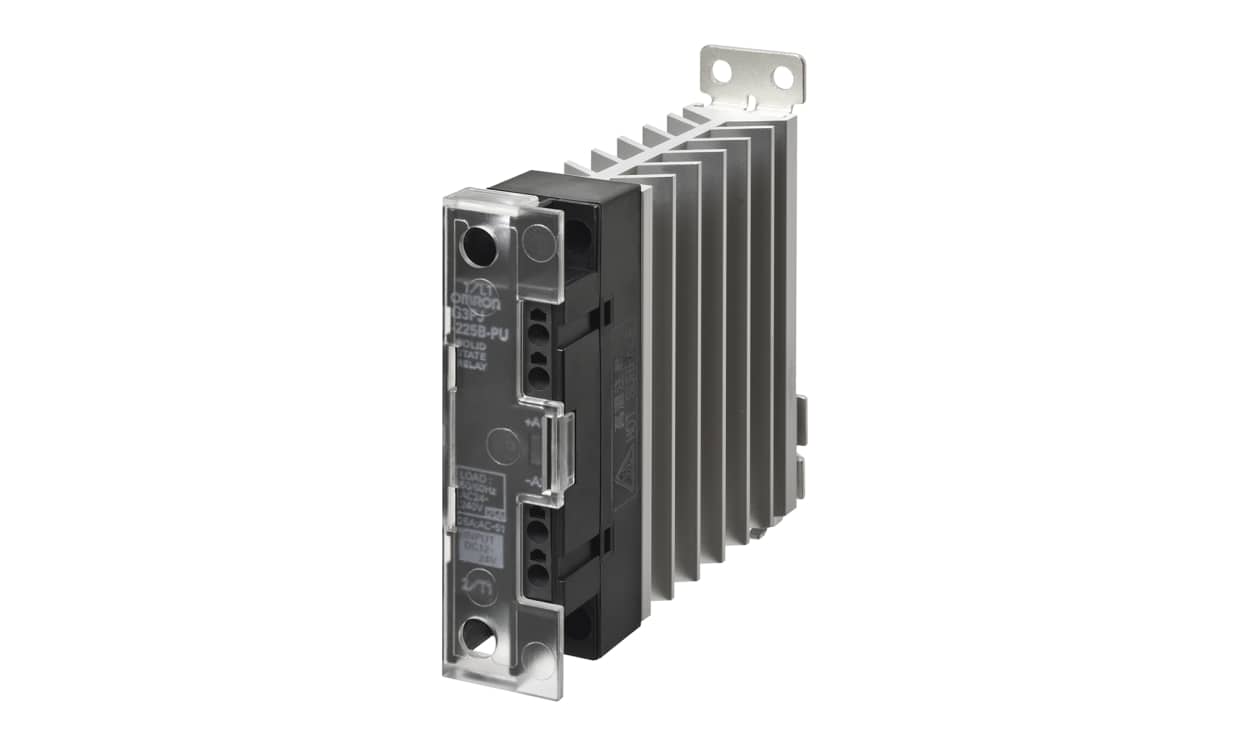

Omron G3PJ-225B-PU DC12-24, G3PJ Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load, 24 V dc Control

Part Number : G3PJ-225B-PU DC12-24

Availability: Sold out

Detailed Description
Specifications

Omron G3PJ Series SSR

G3PJ solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. G3PJ Series single phase solid state relays with heat sinks are suitable for a wide range of applications.

SCCR of 10kA
Surge pass protection
Both push-in and screw terminal input terminals available.
DIN Rail mount
RoHS compliant

Omron G3PJ Series Solid State Relay, 25A Maximum Load Current, 264V Maximum Load Voltage - G3PJ-225B-PU DC12-24

This solid state relay is an integral component for controlling electrical loads efficiently. Designed for use in automation systems, it operates effectively at a maximum load of 25A and a voltage of up to 264V AC. The compact dimensions of 22.5 x 100 x 100mm allow for seamless integration into control panels, especially when multiple units are closely mounted.

Features & Benefits

• Single-phase SSR reduces heat generation while switching
• Zero cross switching enhances operational longevity and performance
• Compatible with DIN rail or screw mounting for flexibility
• Push-in and screw terminal options simplify installation
• Operating temperature range of -30 to +80 °C accommodates varied environments
• CE, cULus, and TÜV certified for safety and compliance

Applications

• Used for heating control in industrial settings
• Ideal for equipment requiring precise load switching
• Utilised in automation systems for efficient power management
• Common in control panels for streamlined installations

What type of control voltage is needed for operation?

It requires a control voltage between 12 to 24V DC, ensuring efficient power handling for various applications.

How does the zero cross switching feature benefit users?

This feature minimises electrical noise and stresses on the relay, which enhances reliability and lifespan during operations.

Are multiple relays suitable for close mounting?

Yes, it is designed for close mounting with three SSRs, optimising space in control panels without sacrificing performance.

What certifications does this relay meet?

It conforms to CE, cULus, and TÜV standards, ensuring it meets essential safety regulations in industrial environments.

What is the maximum load voltage capability of this relay?

The relay supports a maximum load voltage of 264V AC, making it versatile for various industrial applications.

Standards

cULus, TUV, EN 60947-4-3.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Brand	Omron
Maximum Load Current	25 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V ac
Minimum Load Voltage	19 V ac
Maximum Control Voltage	24 V dc
Minimum Control Voltage	12 V dc
Switching Type	Zero Cross
Control Voltage Range	12 → 24 V dc
Number of Poles	1
Terminal Type	Push In, Screw
Contact Configuration	SP
Output Device	Triac
Relay Type	Solid State Relay
Series	G3PJ
Maximum Turn On Time	1/2 cycle + 1 ms
Load Voltage Range	19 → 264V ac
Dimensions	22.5 x 100 x 100mm
Maximum Operating Temperature	+80°C
Operating Temperature Range	-30 → +80°C
