Omron G3PE-225B 12-24VDC, G3PE Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load, 240 V ac Control

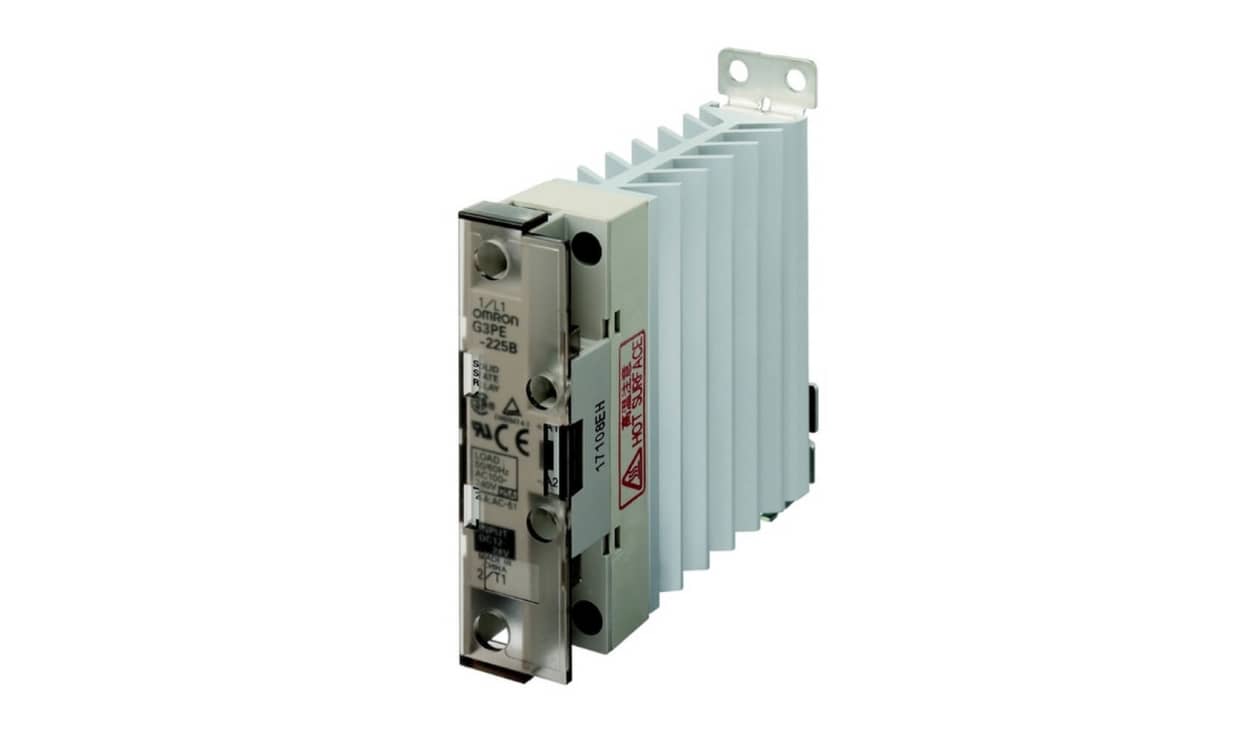

Name: Omron G3PE-225B 12-24VDC, G3PE Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load, 240 V ac Control
Brand: OMRON
SKU: G3PE-225B 12-24VDC
Availability: OutOfStock

Part Number : G3PE-225B 12-24VDC

Solid state relay, 1 phase, 25A 100-240 VAC, with heat sink, DIN rail mount

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Solid State Relay, 25A Switching Current, 7mA Input Current - G3PE Series - G3PE-225B DC12-24

Choose this solid state relay from OMRON to quickly switch power on or off in your process control or motor starting applications. It's ideal for low-power jobs, thanks to an input voltage range between 12 and 24V DC. As the unit is made without moving parts, there are no contact-to-bounce concerns, and it's maintenance-free. To prevent overheating and maintain smooth performance, an inbuilt heat sink efficiently dissipates thermal energy. Simple screw terminals make installation a doddle and achieve a firm fix.

Features & Benefits

• DIN rail mounting for fast and easy setup
• Compact dimensions of 22.5 (L) x 130 (D) x 100mm (H) maximise available space
• Reliable performance in temperatures between -30°C and +80°C
• LED status indicator for monitoring at a glance

Applications

• Industrial power supplies
• Electrical engineering
• Hospitals and medical centres

What's the difference between single-phase and three-phase power?

Commonly found in domestic applications, single-phase power means alternating current is delivered by two wires. Current flows between the phase wire and the neutral wire. Three-phase power is more suited to industrial use, and consists of three AC wires that are separated by 120 electrical degrees. This relay is suitable for use with single-phase setups.

Brand	Omron
Maximum Load Current	25 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V ac
Minimum Load Voltage	75 V ac
Minimum Control Voltage	100 V ac
Maximum Control Voltage	240 V ac
Control Voltage Range	100 → 240 V ac
Minimum Load Current	100 mA
Terminal Type	Screw
Relay Type	Solid State Relay
Load Voltage Range	75 → 264V ac
Series	G3PE
Dimensions	22.5 x 130 x 100mm
Standards Met	CE, CSA
Length	22.5mm
Height	100mm
Off State Leakage Current	10 mA
Depth	130mm
Minimum Operating Temperature	-30°C

Solid state relay, 1 phase, 25A 100-240 VAC, with heat sink, DIN rail mount
