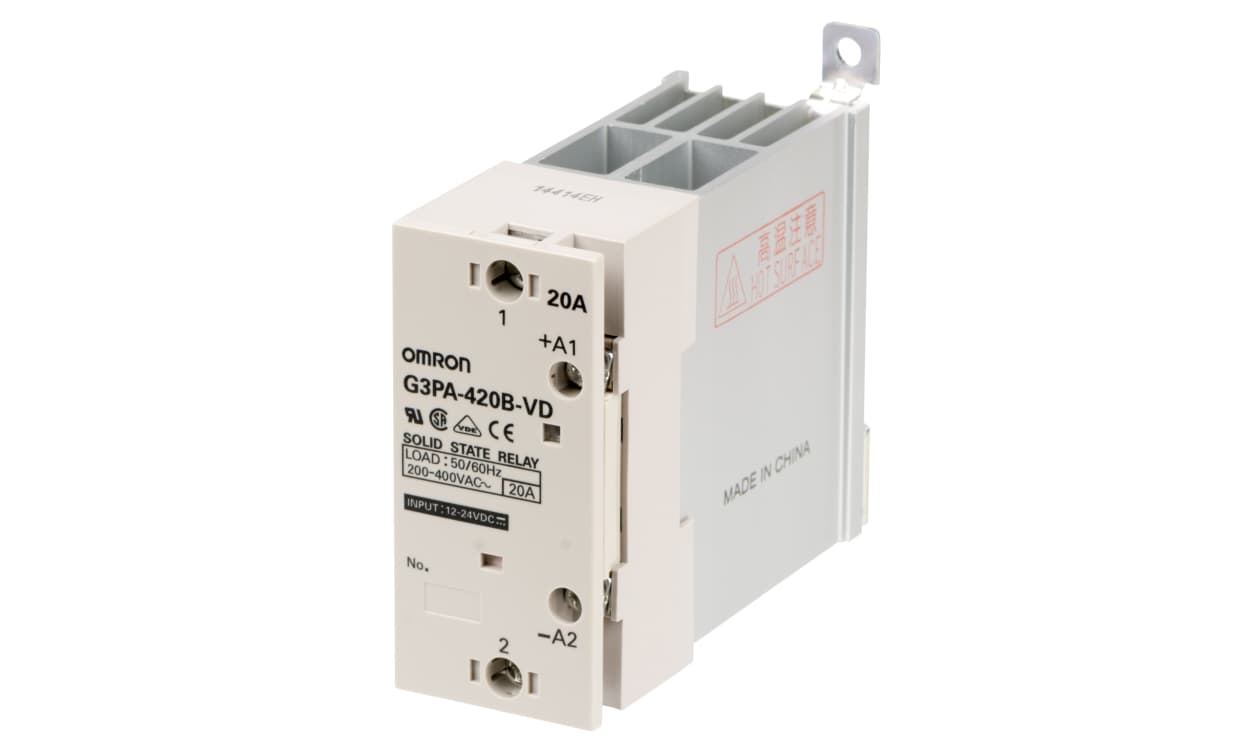

OMRON G3PA-420B-VD-2 12-24VDC | G3PA Solid State Relay | 20 A, 528 V Load
The OMRON G3PA-420B-VD-2 12-24VDC is a G3PA solid state relay with a maximum load current of 20 A and a 180 to 528 V AC load voltage range. Key characteristics include DIN rail mounting, zero cross switching and screw terminals.
- Maximum load current: 20 A
- Load voltage: 180 to 528 V AC
- Operating temperature: -30 to +80 °C
- Poles: 1
- Detailed Description
- Specifications
- Downloads
Omron G3PA Series Solid State Relay, 20A Maximum Load Current, 180 to 528V AC Load Voltage Range - G3PA-420B-VD-2 DC12-24
Features & Benefits
• Zero cross switching improves lifespan and reduces noise
• Compact design optimises space with integrated heat sinks
• Screw terminal type allows for secure and easy connections
• Compliant with safety standards for reinforced insulation
• Wide operating temperature range ensures performance in harsh conditions
Applications
• Utilised in machine automation for precise load switching
• Applied in HVAC systems for reliable temperature management
• Employs energy efficiency in motor control
What is the significance of the zero cross function in this device?
How does the solid state relay handle high temperatures?
Can this relay be used in high voltage applications?
What kind of maintenance is required for this relay?
| Brand | Omron |
| Series | G3PA |
| Maximum Load Voltage | 528 V |
| Maximum Load Current | 20 A |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 180 V |
| Minimum Load Current | 16 A |
| Switching Type | Zero Cross |
| Terminal Type | Screw |
| Load Voltage Range | 180 → 528V ac |
| Maximum Control Voltage | 200 V ac |
| Control Voltage Range | 200 → 480 V ac |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Length | 37 mm (1.46 in) |
| Height | 100 mm (3.94 in) |
| Depth | 100 mm (3.94 in) |
| Minimum Operating Temperature | -30 °C (-22 °F) |
| Operating Temperature Range | -30 → +80 °C (-22 to 176 °F) |
| Minimum Control Voltage | 480 V ac |
| Number of Poles | 1 |
