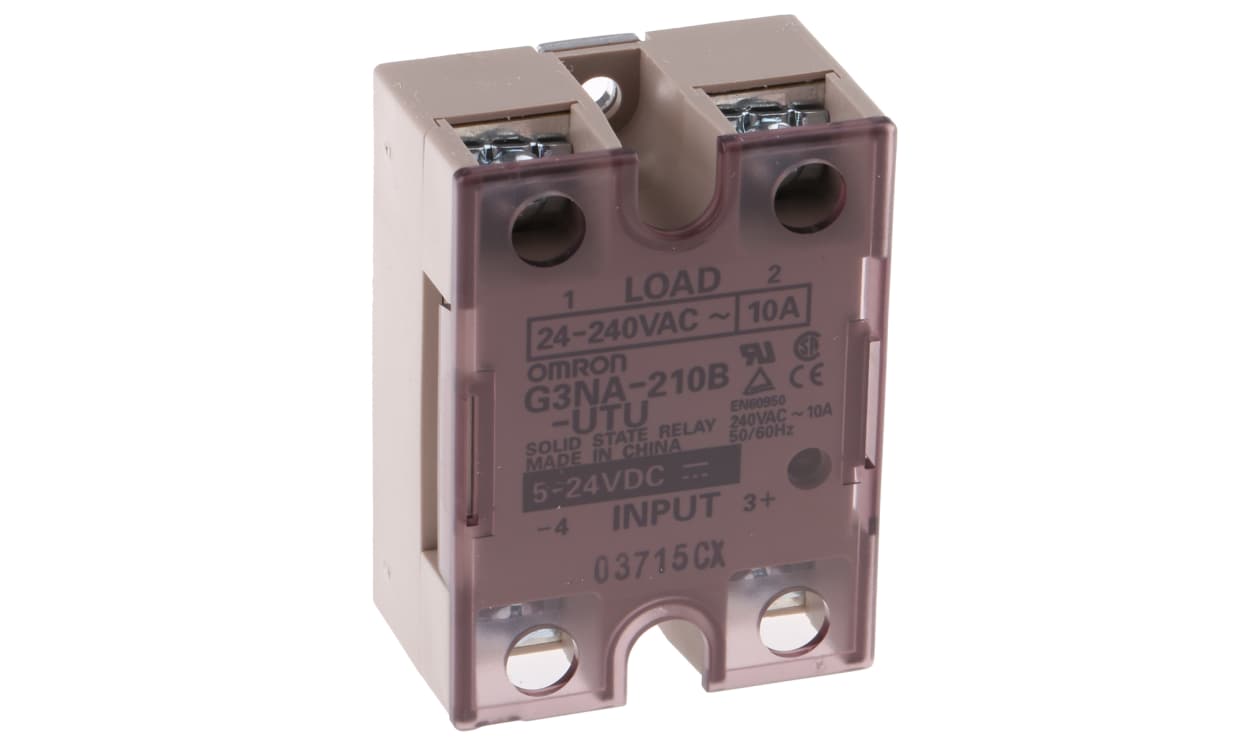

Omron G3NA-210B-UTU 5-24VDC, G3NA Series Solid State Relay, 10 A Load, DIN Rail Mount, 240 V ac Load

Part Number : G3NA-210B-UTU 5-24VDC

Availability: Sold out

Detailed Description
Specifications

OMRON Solid State Relay, 10A Maximum Switching Current, -30°C to +80°C Operating Temperature - G3NA Series - G3NA-210B-UTU DC5-24

Safely switch electrical circuits on and off with this solid state relay from OMRON. The device doesn't contain moving parts, so there's no risk of wear and tear, even when it's used in heavy-duty kit like packaging machines and printing presses. A built-in varistor helps protect your equipment by absorbing sudden power surges, while a protective terminal cover keeps dust and external contaminants at bay. To limit downtime, the unit has a turn-on time of 1ms, ensuring your system starts up swiftly. As it tips the scales at just 60g, it doesn't put strain on your setup.

Features & Benefits

• Zero-cross switching function to generate minimal electrical noise
• Red LED indicator for easy monitoring
• Low leakage current of 5mA at 100V AC for energy conservation
• Performs reliably in an operating temperature range between -30°C and +80°C
• Screw terminal type for convenient installation with a simple screwdriver

Applications

• Waste treatment plants
• Medical equipment
• Automotive industry

What's the dielectric strength of this solid state relay?

The component has a dielectric strength of 2500V AC, meaning it's properly insulated to protect you against electric shocks.

Brand	Omron
Maximum Load Current	10 A
Mounting Type	DIN Rail
Maximum Load Voltage	240 V ac
Minimum Load Voltage	24 V ac
Number of Poles	1
Terminal Type	Screw
Contact Configuration	SP
Relay Type	Solid State Relay
Series	G3NA
Dimensions	58 x 43 x 30mm
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-30°C
Special Features	Indicator Enables Monitoring Operation
Operating Temperature Range	-30 → +80°C
Length	27mm
Depth	27mm
Standards Met	CE, CSA, UL
Off State Leakage Current	5 (At 100 V ac) mA, 10 (At 200 V ac) mA
Height	58mm
