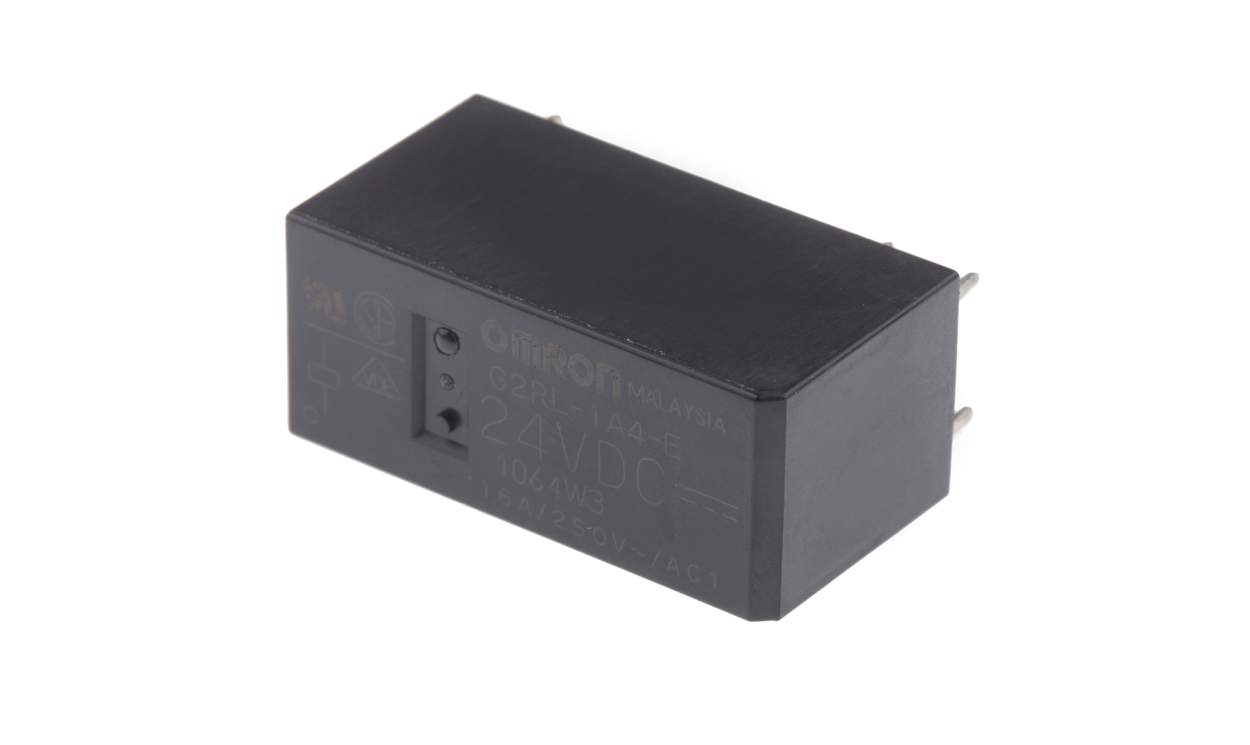

OMRON G2RL-1A4-E DC24 | PCB Power Relay | 24 V DC Coil, 16 A, SPST
OMRON G2RL-1A4-E DC24: a PCB-mount G2RL series power relay driven by a 24 V DC coil, with an SPST contact arrangement and 16 A switching current. Further G2RL-1A4-E DC24 details: a coil resistance of 1440 Ω and non-latching operation.
- Number of poles: 1
- Maximum AC switching power: 4 kVA
- Contact material: silver
- Terminal type: through-hole
- Operating temperature: -40 °C to 85 °C
- Dimensions: 29 x 15.7 x 12.7 mm (L x H x D)
- Detailed Description
- Specifications
- Downloads
G2RL Series
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
Approvals
| Brand | Omron |
| Series | G2RL |
| Coil Voltage | 24V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Latching | No |
| Coil Resistance | 1440Ω |
| Terminal Type | Through Hole |
| Length | 29 mm (1.14 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Height | 15.7 mm (0.618 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Depth | 12.7 mm (0.500 in) |
| Contact Material | Silver |
| Maximum Switching Power AC | 4 kVA |
| Application | Power |
