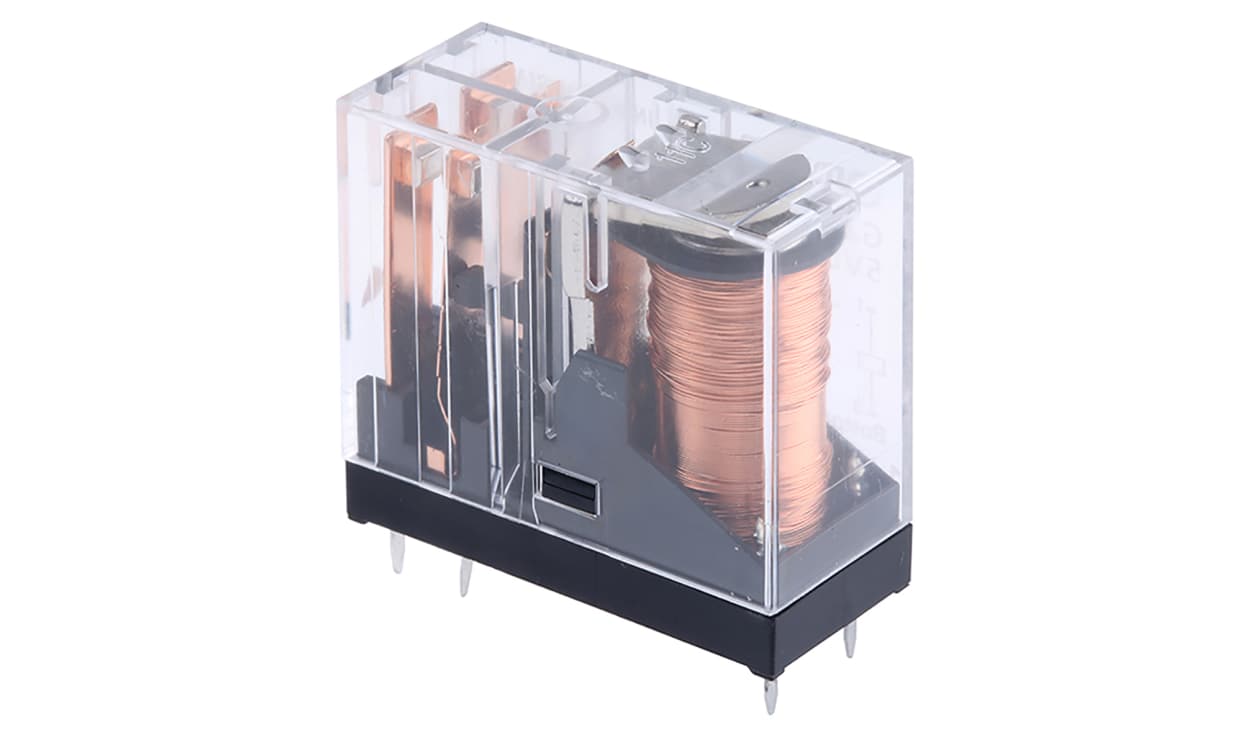

OMRON G2R-2A DC5 | PCB Power Relay | 5 V DC Coil, 5 A, DPST
Built around a 5 V DC coil, the OMRON G2R-2A DC5 is a G2R series PCB-mount power relay offering DPST contacts with a 5 A switching current. The source lists a coil resistance of 47 Ω and non-latching operation.
- 2-pole DPST contact form
- Switching power up to 1.25 kVA (AC) and 150 W (DC)
- Silver contacts
- Through-hole terminals
- Rated for -40 °C to 70 °C ambient
- Size 29 x 25.5 x 13 mm (L x H x D)
- Detailed Description
- Specifications
- Downloads
G2R Series
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
| Brand | Omron |
| Series | G2R |
| Coil Voltage | 5V dc |
| Contact Configuration | DPST |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 2 |
| Latching | No |
| Coil Resistance | 47Ω |
| Terminal Type | Through Hole |
| Length | 29 mm (1.14 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Height | 25.5 mm (1.00 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Depth | 13 mm (0.512 in) |
| Contact Material | Silver |
| Maximum Switching Power AC | 1.25 kVA |
| Application | Power |
| Maximum Switching Power DC | 150 W |
