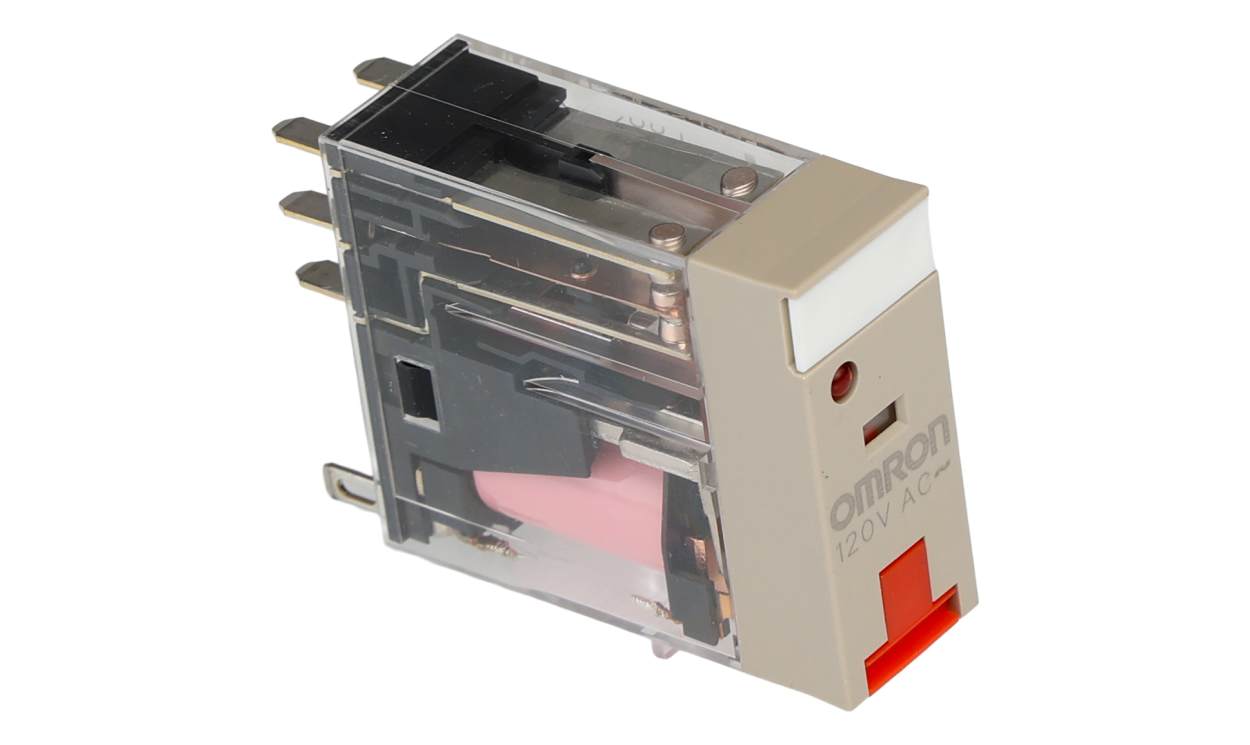

OMRON G2R-2-SNI 120VAC (S) | Plug-In Non-Latching Relay | 120 V AC Coil, 5 A, DPDT
The OMRON G2R-2-SNI 120VAC (S) is a plug-in non-latching relay with a 120 V AC coil and DPDT contacts rated at 5 A switching current. Listed details for the G2R-2-SNI 120VAC (S): mechanical and LED indicators and test button.
- Coil: 120 V AC, 7286 Ω resistance
- Contacts: DPDT, 2 poles
- Mounting and type: plug-in mount, non-latching
- Series: G2R
- Detailed Description
- Specifications
- Features
- Downloads
Omron G2R Series Relay, 120V AC Coil Voltage, DPDT Contact Configuration - G2R-2-SNI 120VAC (S)
Features & Benefits
• DPDT contact configuration allows for complex switching circuits
• Supports switching currents up to 5A for various usage
• Plug-in mounting type simplifies installation and replacement
Applications
• Effective in electrical panels for reliable power distribution
• Can be used in machinery for precise control and switching
• Integrated into HVAC systems for efficient operations
• Suitable for telecommunication devices requiring dependable switching
What is the significance of the DPDT configuration in this relay?
How does the maximum switching voltage impact practicality in applications?
What is the benefit of the AgSnIn contact material used in this relay?
How does the operating temperature range affect the relay's applications?
| Brand | Omron |
| Series | G2R |
| Coil Voltage | 120V ac |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 5A |
| Number of Poles | 2 |
| Coil Resistance | 7286 Ω |
Relay, plug-in, DPDT, 5 A, mech. & LED indicator, test button, 120 VAC
