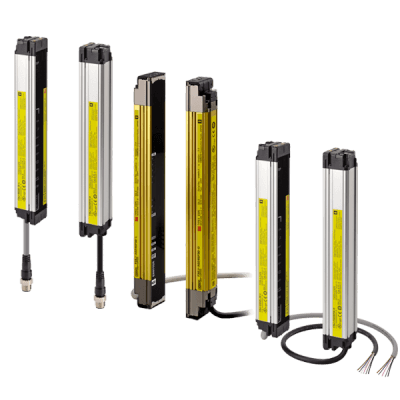

OMRON F3SJ-E0385P25 | Safety Light Curtain | Type 4, 385 mm Height, 0.2-7 m, PNP
Part Number : F3SJ-E0385P25
The OMRON F3SJ-E0385P25 is an F3SJ Easy type 4 safety light curtain with 18 beams and a 385 mm protective height. It scans from 0.2 to 7 m, has PNP output and runs on 24 V DC.
- SIL 3 (IEC 61508), PL e (EN ISO 13849-1)
- Response time 15 ms on to off, 70 ms off to on
- Muting function, hand application
- M12 connector
- 30 x 30 x 454 mm
- Sender and receiver
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Features
F3SJ-E Safety Light Curtain & Accessories
Fast and easy installation
Easy to view diagnostics
Resolution: 25 mm (1.01 in.)
Range: 7 m (23 ft.)
Protected heights: 185 to 1105 mm (7.28 to 43.50 in.)
Very compact size: 30 x 30 mm (1.18 x 1.18 in.)
Cross talk prevention
A range of accessories are available
Easy to view diagnostics
Resolution: 25 mm (1.01 in.)
Range: 7 m (23 ft.)
Protected heights: 185 to 1105 mm (7.28 to 43.50 in.)
Very compact size: 30 x 30 mm (1.18 x 1.18 in.)
Cross talk prevention
A range of accessories are available
The F3SJ-E light curtain is ideal for straight forward on/off detection applications as it simply stops the machine upon detection of personnel. The light curtains reduced wiring, quick mount brackets and easy to view alignment beams mean fast and easy installation. Additionally, one fixed response time means the safety distance is now easier to calculate. The F3SJ-E is made with an aluminium case, PMMA resin (acrylic) optical cover and ABS resin PBT cap.
Standards
IEC 61496-1, EN 61496-1 UL 61496-1, Type 4 ESPE (Electro-Sensitive Protective Equipment)
IEC 61496-2, CLC/TS 61496-2, UL 61496-2, Type 4 AOPD (Active Opto-electronic Protective Devices)
IEC 61508-1 to -3, EN 61508-1 to -3 SIL3
IEC 13849-1: 2006, EN ISO 13849-1: 2008 (PLe, Cat.4)
UL 508, UL 1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8
IEC 61496-2, CLC/TS 61496-2, UL 61496-2, Type 4 AOPD (Active Opto-electronic Protective Devices)
IEC 61508-1 to -3, EN 61508-1 to -3 SIL3
IEC 13849-1: 2006, EN ISO 13849-1: 2008 (PLe, Cat.4)
UL 508, UL 1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8
Approvals
TUV, cULus, CE marked.
Light Curtain
| Brand | Omron |
| Series | F3SJ |
| Beam Resolution | 20 mm |
| Component Type | Receiver, Sender |
| Safety Type | 4 |
| Number of Beams | 18 |
| PL EN ISO 13849-1 | e |
| Protective Height | 385 mm (15.2 in) |
| Minimum Scanning Distance | 0.2 m (0.66 ft) |
| Maximum Scanning Distance | 7 m (23.0 ft) |
| Maximum Response Time | 15 (On to Off) ms, 70 (Off to On) ms |
| Supply Voltage | 24 V dc |
| Length | 30 mm (1.18 in) |
| Height | 454 mm (17.9 in) |
| Terminal Type | M12 Connector |
| Application | Hand |
| Width | 30 mm (1.18 in) |
| Dimensions | 30 x 30 x 454 mm (1.18×1.18×17.9 in) |
| Features | Muting |
| SIL IEC 61508 | 3 |
Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 to 7.0 m, height 385 mm, PNP
