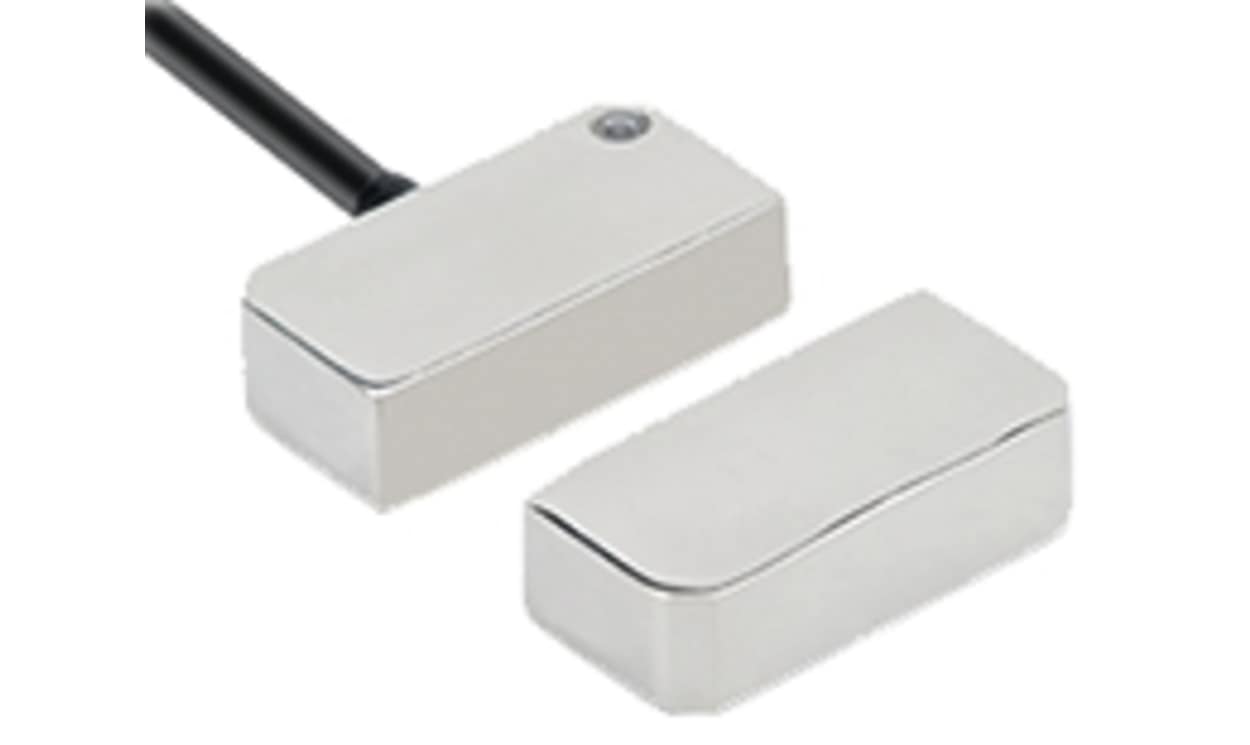

Name: Omron F3S-TGR-NSFR-21-10, F3S-TGR-N_R Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, 10m Cable
Brand: OMRON
SKU: F3S-TGR-NSFR-21-10
Availability: OutOfStock

Omron F3S-TGR-NSFR-21-10, F3S-TGR-N_R Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, 10m Cable

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron F3S-TGR-NSFR-21-10, F3S-TGR-N_R Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, 10m Cable

Part Number : F3S-TGR-NSFR-21-10

Availability: Sold out

Detailed Description
Specifications
Downloads

F3S-TGR Non Contact Safety Switch

The F3S-TGR non contact safety switches are designed to interlock hinge, sliding or removable guard doors. Plastic and stainless steel switches are available, the latter are ideally suited to high hygiene demands in the food industry. The switches have a long sensing range to avoid false signals resulting from an ill aligned door, for example.

Non-contact equals no abrasion which means no particles
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers

F3S-TGR-N_C Switch

Connect up to 3 switches in series
LED for easy diagnosis
Electronic output (potential-free optocoupler output)
IP67 protection

F3S-TGR-N_R Switch

Connect up to 6 switches in series
Reed contacts
IP67 protection

Note

Models F3S-TGR-N_C are coded.
Actuator is included.
For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.

Standards

EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Stainless Steel
Connection Type	10m Cable
Actuator Type	Magnetic
Auxiliary Contacts	NO
Sensor Principle	Magnetic
Safety Category	4
Actuator Included	Yes
Series	F3S-TGR-N_R
Switching Distance	10 mm
IP Rating	IP69K
Width	25.5mm
Length	50mm
Number of Approach Directions	6
Depth	13mm
