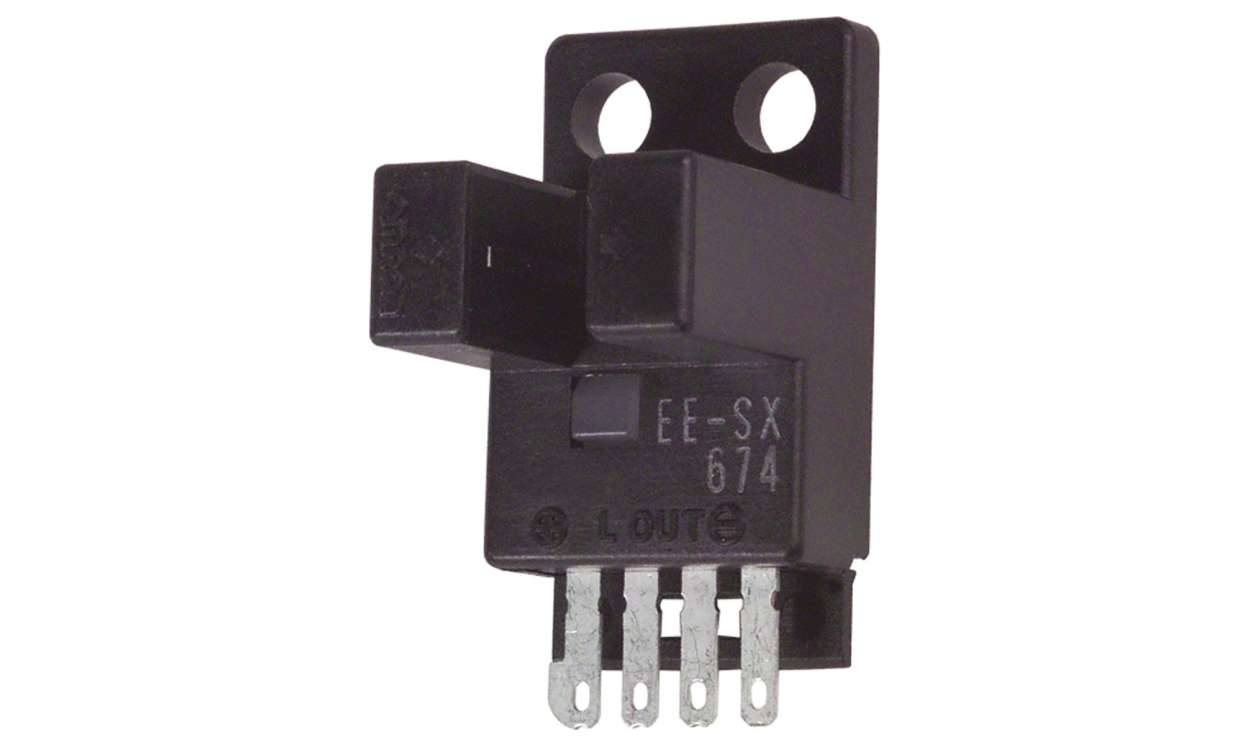

Omron EE-SX674, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range

Part Number : EE-SX674

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Photoelectric Sensor, NPN Output, IP50 - EE-SX674

This photoelectric sensor by Omron is designed for reliable object detection in industrial automation applications. Operating up to 24V DC, it offers a sensing range of up to 5mm, making it suitable for various distance sensing tasks.

Features & Benefits

• IP50 rating for added safety
• Infrared light emission for reliable detection
• Compact and robust design for industrial environments
• Adjustable sensitivity for precise object detection

Applications

• Used in conveyor systems for object detection and counting
• Ideal for packaging and assembly lines to ensure product positioning
• Suitable for material handling to automate sorting processes
• Deployed in automated doors and gates for obstruction detection and safety

Can it detect transparent objects?

Depending on the model, some photoelectric sensors can detect transparent objects by adjusting the sensitivity settings.

What environmental conditions does it tolerate?

Photoelectric sensor is resistant to dust and moisture, suitable for indoor industrial environments.

Is it easy to install and align?

Yes, installation involves mounting the sensor and reflector opposite each other, with easy adjustment for alignment.

Brand	Omron
Sensor Style	Fork
Detection Type	Through Beam
Detection Range	5 mm
Output Type	NPN
Electrical Connection	4 Pin Connector
Maximum DC Voltage	24V
Terminal Type	Connector
Light Source	Infrared
IP Rating	IP50
Maximum Current	12 mA
Response Time	0.17 ms
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Series	EE
Housing Material	PBT
Mounting Type	Close
Standards Met	CE

Omron EE-SX674, Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range

DOWNLOAD CATALOG

EE-SX674 Photomicrosensor Data Book 0900766b8136f7d6
