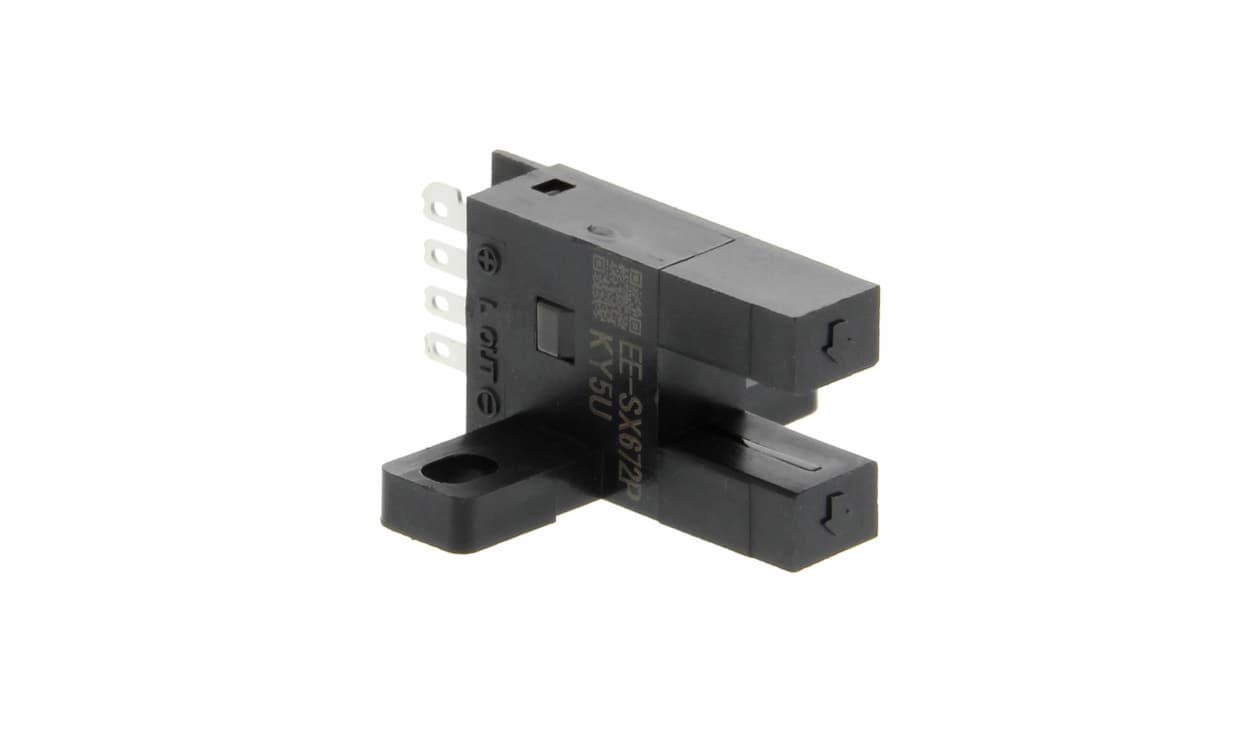

OMRON EE-SX672P | Through-Beam Fork Sensor | 5 mm, PNP, 4-Pin Connector
With a 5 mm detection range, the OMRON EE-SX672P is a through-beam fork sensor that provides a PNP output. This sensor connects through a 4-pin connector, works with an infrared light source and meets IP50.
- Up to 24 V DC supply
- 12 mA maximum current
- Temperature range -25 °C to +55 °C
- Body material: PBT
- Mode: light-on / dark-on switching
- Compliance: CE
- Detailed Description
- Specifications
- Downloads
Omron Photoelectric Sensor, 5mm Detection Range, PNP Output - EE-SX672P
Features & Benefits
• Utilises PNP output for straightforward connectivity
• Includes a 4-pin connector for hassle-free installation
• Operates with a maximum voltage of 24V
• Incorporates an infrared light source for enhanced performance
• IP50 rating offers protection against dust ingress
Applications
• Used in conveyor systems for reliable product monitoring
• Employed in assembly lines for precise counting and positioning
• Ideal for sorting systems requiring accurate measurements
How does the setup work for optimal performance?
Can this sensor operate in extreme temperatures?
What type of load can be managed with this sensor?
Is this sensor compatible with various control systems?
What maintenance does it require to ensure longevity?
| Brand | Omron |
| Series | EE-SX47/67 |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | PNP |
| Electrical Connection | 4 Pin Connector |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 12 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Connector |
| Standards Met | CE |
