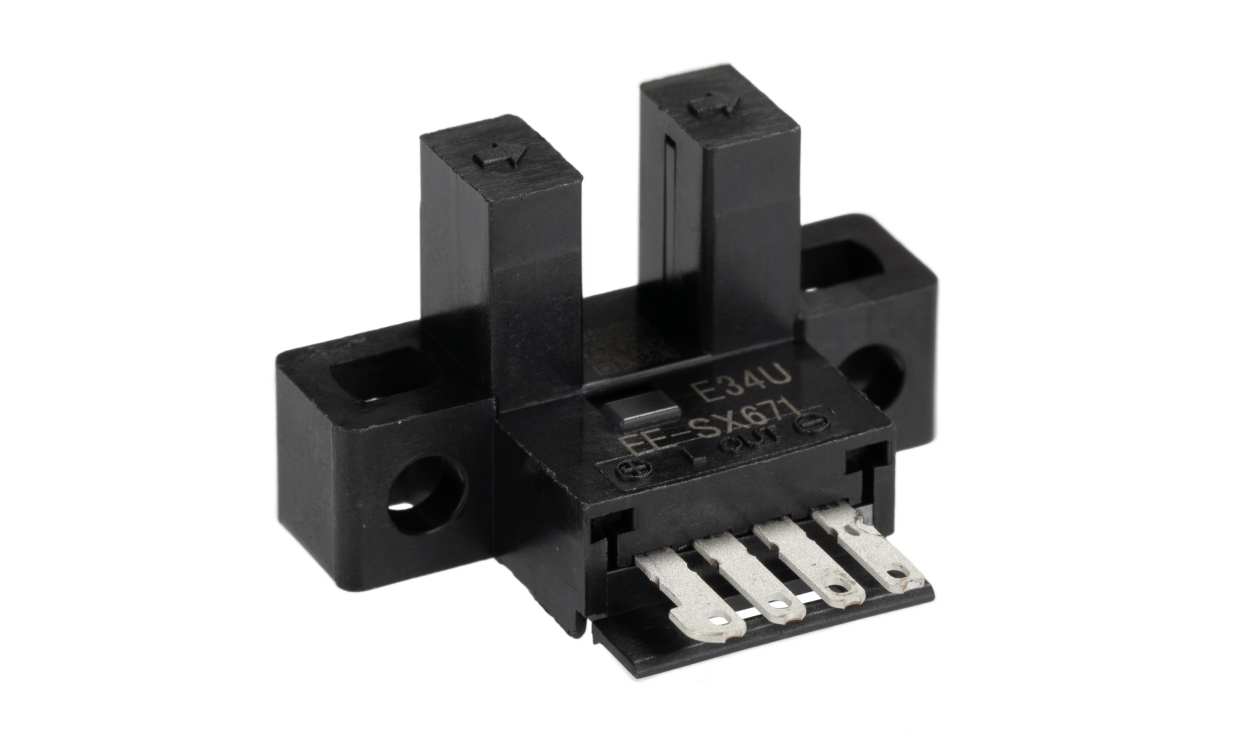

OMRON EE-SX671 | Slot-Type Photo Micro Sensor | 5 mm, NPN, Connector
The OMRON EE-SX671 is a slot-type photo micro sensor with a detection range of 5 mm and an NPN output. It comes with a connector, is fitted with an infrared light source and is rated IP50. OMRON's description specifies an L-shaped slot design with selectable light-on / dark-on operation.
- Up to 24 V DC supply
- 100 mA maximum current
- Temperature range -25 °C to +55 °C
- Body material: PBT
- Compliance: CE
- EE-SX47/67 series
- Detailed Description
- Specifications
- Features
- Downloads




Omron Photoelectric Sensor, 5mm Detection Range, NPN Output - EE-SX671OMC
Features & Benefits
• NPN output configuration ensures compatibility with numerous systems
• Utilises infrared technology for fast response times
• Durable PBT housing withstands harsh environments
• IP50 rating offers protection against dust and foreign objects
Applications
• Packaging machinery for accurate material handling
• Quality control processes in assembly lines
• Part counting in automated production lines
How does this sensor perform in varying environmental conditions?
Can it be integrated with standard control systems?
Is the installation of this sensor complicated?
What type of materials can this sensor detect?
| Brand | Omron |
| Series | EE-SX47/67 |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | NPN |
| Electrical Connection | Connector |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | PCB Pin |
| Standards Met | CE |
Photo micro sensor, slot type, L-shaped, L-ON/D-ON selectable, NPN, connector
